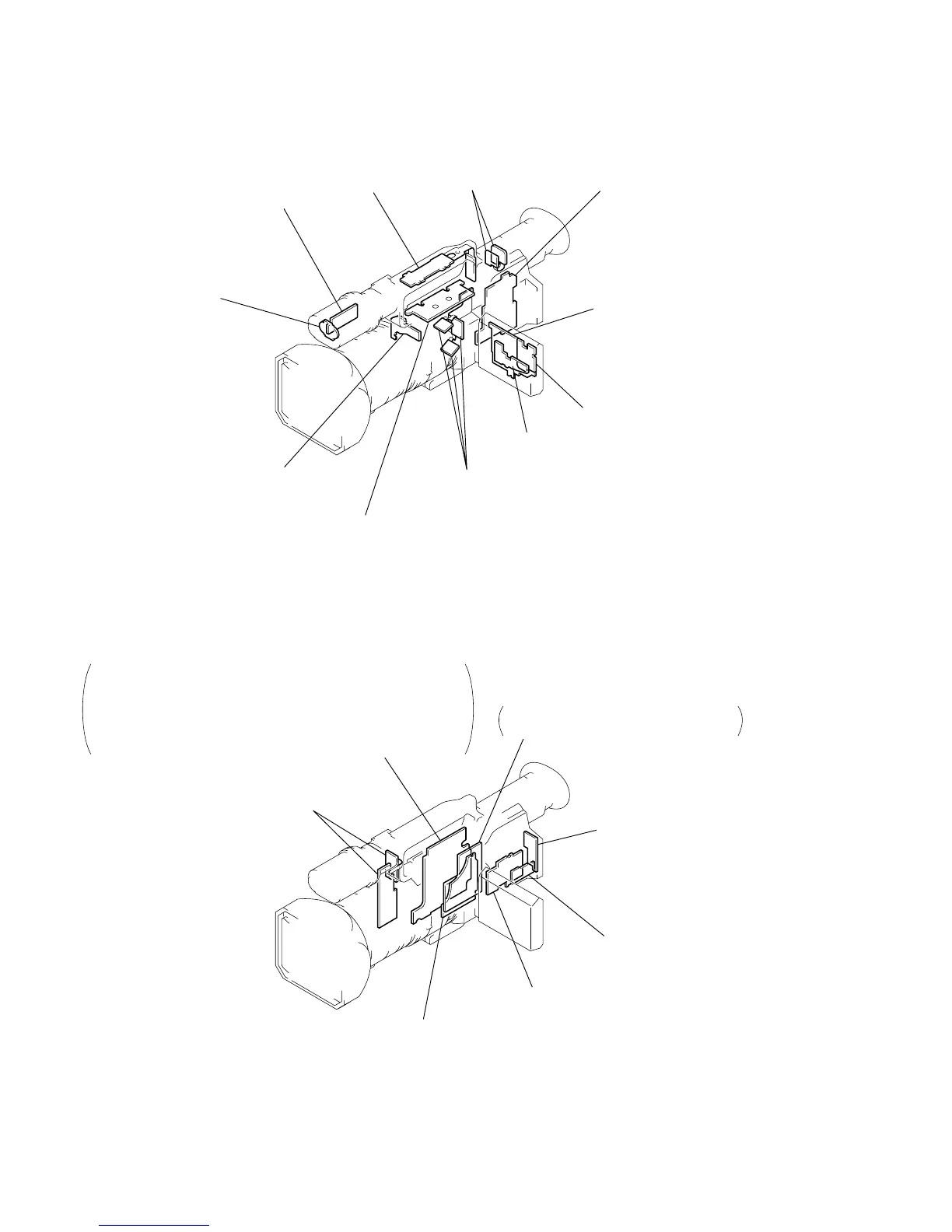

2-16.CIRCUIT BOARDS LOCATION
FT-090
(REMOTE)
MI-038
(MIC IN)
MA-386
(AUDIO AMP)
LB-065
(BACK LIGHT)
CK-093
(KEY IN)
PD-126
(RGB DRIVE/TG)
HL-011
(LCD DRIVE)
CD-254
(CCD IMAGER)
FK-076
(CONTROL SWITCH)
INVERTER TRANSFORMER
UNIT
SE-108
(VAP SENSOR)
MK-014
(CONTROL KEY)
LA-026
200m/FOCUS DRIVE, VAP DRIVE,
KEY IN/CONNECTOR
VC-242
S/H AGC, TG, CAMERA SIGNAL PROCESS,
MS I/F, RS232C I/F, STILL CONTROL, MS DRIVE,
DV SIGNAL PROCESS, REC/PB AMP,
LINE IN/OUT, LINE A/D, RGB DRIVE/TG,
CAMERA CONTROL, DRUM/CAPSTAN MOTOR DRIVE,
HI CONTROL, AU LINE A/D, D/A, LINE AMP
JK-190
(JACK BOARD)
KP-010
(SELECT DIAL)
MS-049
(MS CONNECTOR)
DD-138
(DC/DC CONVERTER, DC REGULATOR)
The circuit boards contained in the zoom lens are not shown.
