1-1. DSR-2000
Chapter 6 Setup Menu
122

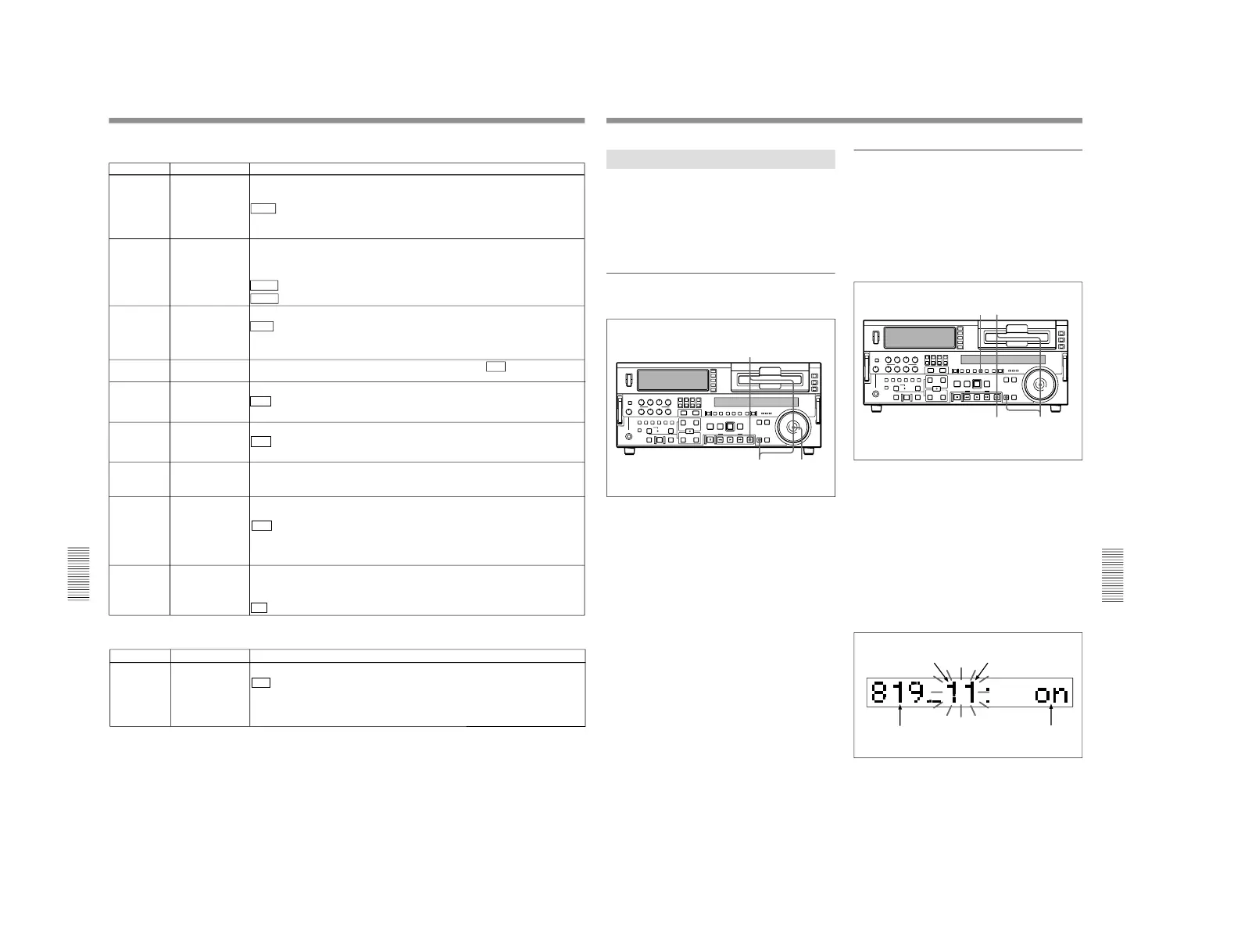

Chapter 6 Setup Menu
Extended Menu
Item number Item name Settings
Menu items in the 800s, relating to audio controll (continued)
814
OVER RANGE
DISPLAY HOLD
Select whether to hold the audio level meter OVER display.
OFF : Do not hold.
ON: Hold.
818
AUDIO REC
MODE
Select the audio recording mode.
2CH : 2ch, 48 kHz mode
4CH: 4ch, 32 kHz mode
819
AUDIO INPUT
SOURCE
ARRANGE
Select the audio input signals to be mixed when the MIXING button is lit.
For details, see the section
“Making settings for mixing an audio input signal (extension
menu item 819)
” (page 123).
820 AUDIO OUTPUT
CH3/CH4 SELECT
Select the signals to be output from the AUDIO OUT CH-3 and AUDIO OUT CH-4
connectors.
LINE : Output the audio channel-3 and audio channel-4 signals from the AUDIO OUT
CH-3 and AUDIO OUT CH-4 connectors as they are.
MONI: Output the monitor audio L-channel (CH-1) and monitor audio R-channel (CH-2)
signals from the AUDIO OUT CH-3 and AUDIO OUT CH-4 connectors, respectively.
Item number Item name Settings
902 SYSTEM EE
MODE
Select the bypass E-E mode or system E-E mode.
OFF : Bypass E-E (ordinary setting)
ON: System E-E
When this item is set to ON, the output delays 3 frames with respect to the input
(excluding the SDTI and i.LINK inputs/outputs).
Menu items in the 900s, relating to digital process
812 AUDIO OUTPUT
LEVEL
Select the analog audio output reference level.
+4dB : Set the analog output level of the signal at the reference level to +4 dBm.
0dB: Set the analog output level of the signal at the reference level to 0 dBm.
–6dB: Set the analog output level of the signal at the reference level to
–6 dBm.
813
PEAK HOLD TIME Set the peak hold time for the audio level meter in the range of OFF (no peak hold) to
1.5 seconds in 0.1 second steps.
821
AUDIO
ATTENUATE
WHEN DV TAPE
PLAYBACK
When playing back a tape recorded in consumer DV format, select whether to attenuate
the audio output level.
OFF: Attenuate.
ON : Do not attenuate.
808
INTERNAL AUDIO
SIGNAL
GENERATOR
Select the operation of the internal audio test signal generator.
SILNC: Silent signal.
1KHZ : 1-kHz, –20 dB FS sine wave signal.
When you select SG as the audio input in the input selection section of the upper control
panel, the audio test signal generated by the internal audio test signal generator is input.
811 AUDIO
REFERENCE
LEVEL
Select the audio reference level (headroom) for recording on tape.
–12dB
–16dB
–18dB (factory default for DSR-2000P)
–20dB (factory default for DSR-2000)
Chapter 6 Setup Menu
Chapter 6 Setup Menu
123
Extended Menu Operations
To use the extended menu, set basic menu item 099
MENU GRADE to ENHAN beforehand.
In the extended menu, you can carry out the same
operations as in the basic menu except setting of sub-
items.
To set sub-items
Operate as follows.
1
Turn the search dial to select the desired menu
item.
For information about how to select a menu item, see
the section “Changing the currently displayed menu
item” (page 111).
2
Holding down the STOP button, turn the search
dial to select the desired sub-item.
3
Holding down the SEARCH button, turn the search
dial to change the value for the selected sub-item.
Making settings for mixing an audio input
signal (extension menu item 819)
Using extension menu item 819, you can mix audio
input signals, dub an audio input signal over a channel
previously recorded on the tape, or mix an audio input
signal with an audio channel recorded on the tape
(sound-on-sound).
To carry out the extension menu item 819 settings, use
the following procedure.
1
Select extension menu item 819.
For details of selecting a menu item, see the section,
“Changing the currently displayed menu item
” (page
111).
2
Press the STOP button.
The following displays appear in the display
section of the lower control panel and on a monitor
connected to this unit.
Display section
Recording channel number
