1-1. DSR-2000
Appendixes
144
Appendixes
Specifications
General
Power requirements
100 to 240 VAC, 50/60 Hz
Power consumption
120 W
Peak inrush current
(1) Power ON, current probe method: 65A (240V)
(2) Hot switching inrush current, measured in
accordance with European standard
EN55103-1: 15A (230V)
Operating temperature
5˚C to 40˚C (41˚F to 104˚F)
Storage temperature
–20˚C to +60˚C (–4˚F to +140˚F)
Humidity Maximum 80% (Operating)
Maximum 90% (Storage)
Mass About 18 kg (39 lb 10 oz)

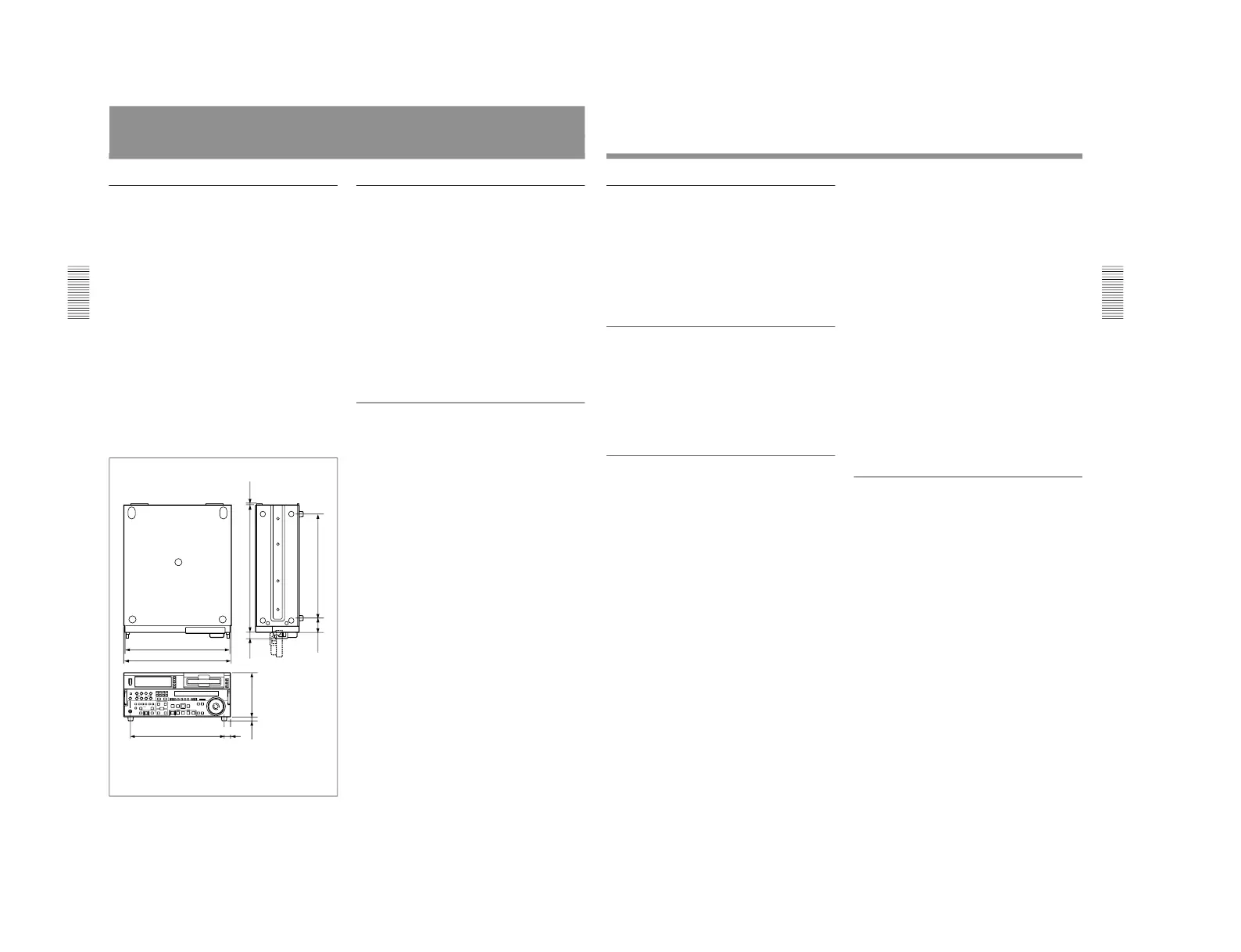

Dimensions (w/h/d)
427 × 174.5 × 495.5 mm
(16
7
/
8
× 6
7
/
8
× 19
5
/
8
inches)
424 (16 3/4)
427 (16 7/8)
495.5 (19 5/8)
4.8 (7/32)
400 (15 3/4)
19.7 (2 5/32)
52.5 (2 1/8)
372 (14 3/4)
27.5 (1 1/8)
16.5 (21/32)
174.5
(6 7/8)
Tape transport control system
Tape speed 28.193 mm/s (DSR-2000)
28.221 mm/s (DSR-2000P)
Recording/playback time
Using PDV-184ME standard-size
cassette: 184 minutes or less
Using PDVM-40ME mini-size
cassette: 40 minutes or less
Fast forward/rewind time
Using PDV-184ME standard-size
cassette: 3 minutes or less
Using PDVM-40ME mini-size
cassette: 1 minute or less
Search speed Up to 60 times normal in both
directions
Video performance
Band width Composite (DSR-2000):
30 Hz to 4.2 MHz ±1.0 dB (Y)
Composite (DSR-2000P):
25 Hz to 4.8 MHz ±1.0 dB (Y)
S-Video (DSR-2000):
30 Hz to 5.0 MHz ±1.0dB (Y),
5.75 MHz +0/–3.0 dB (Y) (TM)
S-Video (DSR-2000P):
25 Hz to 5.0 MHz ±1.0dB (Y),
5.5 MHz +1.0/–2.0 dB (Y),
5.75 MHz +0/–3.0 dB (Y) (TM)
Component (DSR-2000):
30 Hz to 5.0 MHz ±1.0 dB (Y),
5.75 MHz +0/–3.0 dB (Y) (TM),
30 Hz to 1.3 MHz ±1.0 dB (C),
1.5 MHz +0/–5.0 dB (C)
Component (DSR-2000P):
25 Hz to 5.0 MHz ±1.0 dB (Y),
5.5 MHz +1.0/–2.0 dB (Y),
5.75 MHz +1.0/–3.0 dB
(Y) (TM),
25 Hz to 1.5 MHz ±1.0 dB (C),
2.0 MHz +1.0/–2.0 dB (C)
S/N Composite I/O (Y):
53 dB or more
S-Video I/O (Y): 55 dB or more
Component I/O (Y):
55 dB or more
Y/C delay 30 ns or less
K-factor 2.0% or less (K2T, KPB)
Unit: mm (inches)
Appendixes
Appendixes
145
Processor adjustment range
Video level ±3 dB/–∞ to 3 dB selectable
Chroma level ±3 dB/–∞ to 3 dB selectable
Setup/Black level
±30 IRE (±210 mV)
Chroma phase ±30˚
Y/C delay ±100 ns
System phase Sync: ±3µs
SC: ±180°
Audio performance
Frequency response
2 ch (48 kHz/16 bit):
20 Hz to 20 kHz +0.5/
–1.0 dB
4 ch (32 kHz/12 bit):
20 Hz to 14.5 kHz +0.5/
–1.0 dB
Dynamic range 90 dB or more (2CH, 48 kHz)
Distortion 0.05% or less (2CH, 48 kHz)
Input connectors
Digital input
i.LINk (When using DSBK-190 i.LINK/DV Input/
Output Board)
6-pin IEEE1394 connector ×1
SDTI (QSDI) INPUT
BNC type ×1, SDTI (QSDI) format
(270Mbps), SMPTE 305M/322M
SDI INPUT BNC type ×2 (active-through),
SMPTE 259M (DSR-2000)/ITU-R
BT.656 (DSR-2000P), SDI format
(270Mbps)
Analog video input
VIDEO IN BNC type ×2 (loop-through),
composite, 1.0 Vp-p, 75 Ω, sync
negative
REF. VIDEO IN BNC type ×2 (loop-through), black
burst, 0.286 Vp-p (DSR-2000) or
0.3 Vp-p (DSR-2000P), 75 Ω, sync
negative
S VIDEO IN DIN 4-pin ×1
Y: 1.0 Vp-p, 75 Ω, sync negative
C: 0.286 Vp-p (DSR-2000) or
0.3 Vp-p (DSR-2000P), 75 Ω
(burst level)
COMPONENT VIDEO IN Y/R
–Y/B–Y
BNC type ×3, component video
Y: 1.0 Vp-p, 75 Ω, sync negative
R–Y: 0.7 Vp-p, 75 Ω (75% for
DSR -2000 or 100% for DSR-
2000P)
B–Y: 0.7Vp-p, 75 Ω (75% for
DSR -2000 or 100% for DSR-
2000P)
Analog audio input
AUDIO IN XLR 3-pin (female) ×4,
–6/0/+4 dBu, 600 Ω ON/OFF/–60
dBu, high impedance, balanced
Digital audio input
DIGITAL AUDIO (AES/EBU) IN CH-1/2, CH-3/4
BNC×2, complying with AES-3id-
1995
Timecode input
TIME CODE IN BNC type ×1, SMPTE (DSR-
2000)/EBU (DSR-2000P)
0.5 to 18 Vp-p, 3.3 kΩ, unbalanced
Output connectors
Digital output
i.LINK (When using DSBK-190 i.LINK/DV Input/
Output Board)
6-pin IEEE1394 connector ×1
SDTI (QSDI) OUTPUT
BNC type ×1, SDTI (QSDI) format
(270Mbps), SMPTE 305M/322M
SDI OUTPUT 1, 2, 3 (SUPER)
BNC type ×3, SMPTE 259M
(DSR-2000)/ITU-R BT.656 (DSR-
2000P), SDI format (270Mbps)
SDTI-CP OUTPUT (When using DSBK-210)
BNC type ×3
SMPTE 305M, 326M
Analog video output
VIDEO OUT 1, 2, 3 (SUPER)
BNC type ×3, composite, 1.0 Vp-p,
75 Ω, sync negative
REF. VIDEO OUT
BNC type ×1, composite sync,
0.286 Vp-p (DSR-2000) or 0.3 Vp-
p (DSR-2000P), 75 Ω, sync
negative (with burst)
