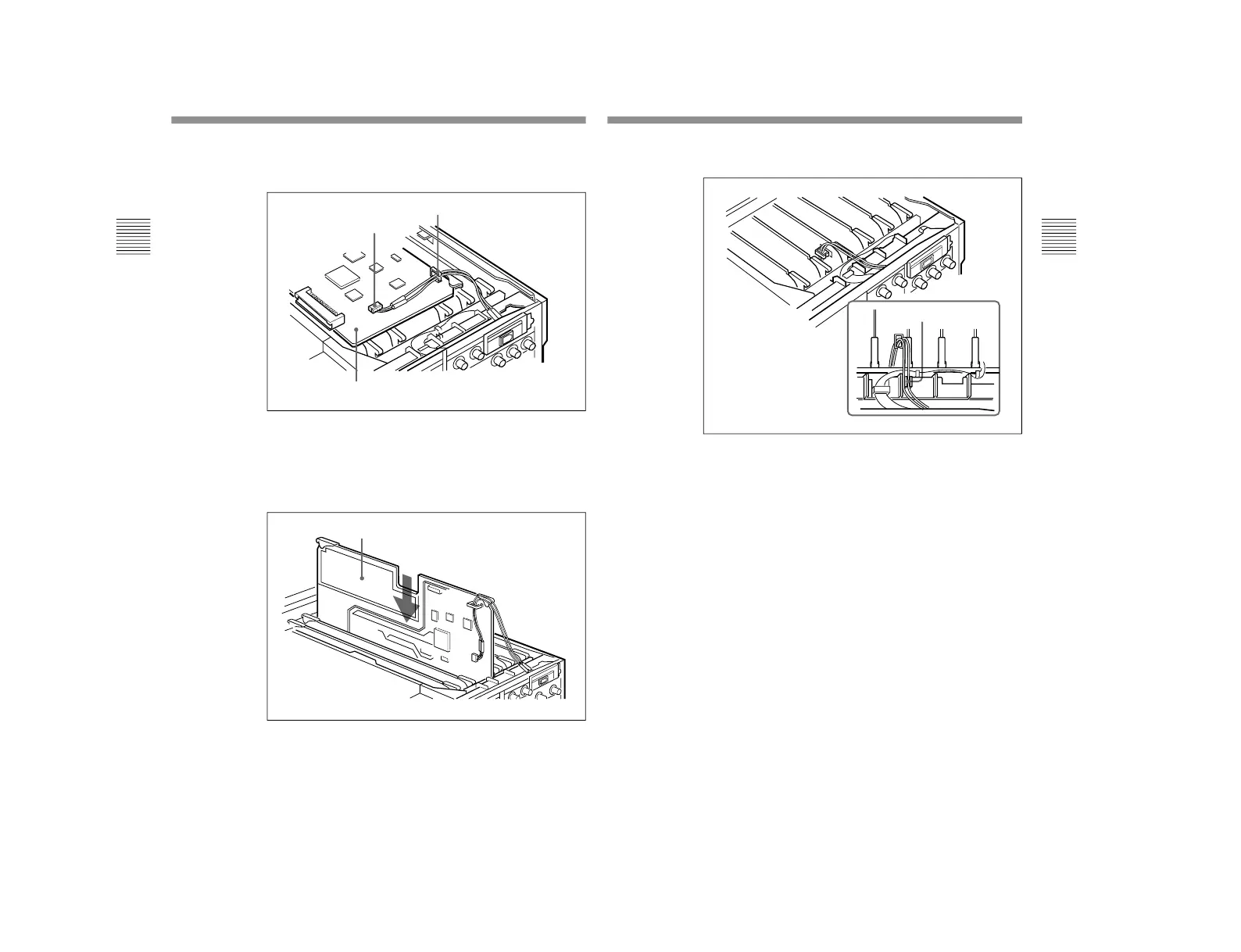

Pass the harness through the cable holder on the IF-763
board, and connect to connector CN401.
6
Insert the IF-763 board in the board slot (fourth from the
outside).
Align the three connectors on the bottom of the board with
the three connectors inside the unit, and push the board
firmly into place.
Connector CN401
IF-763 board
Cable holder
IF-763 board
Installation
17
7
Fix the harness in the cable holder by the board slot.
Cable holder
