1-2. DSBK-190
14
Caution
If this option is installed incorrectly, personal injury or damage
to peripheral items may occur due to fire, shock, or other
accidental circumstances. To avoid such risks, installation
should be performed by qualified service personnel.

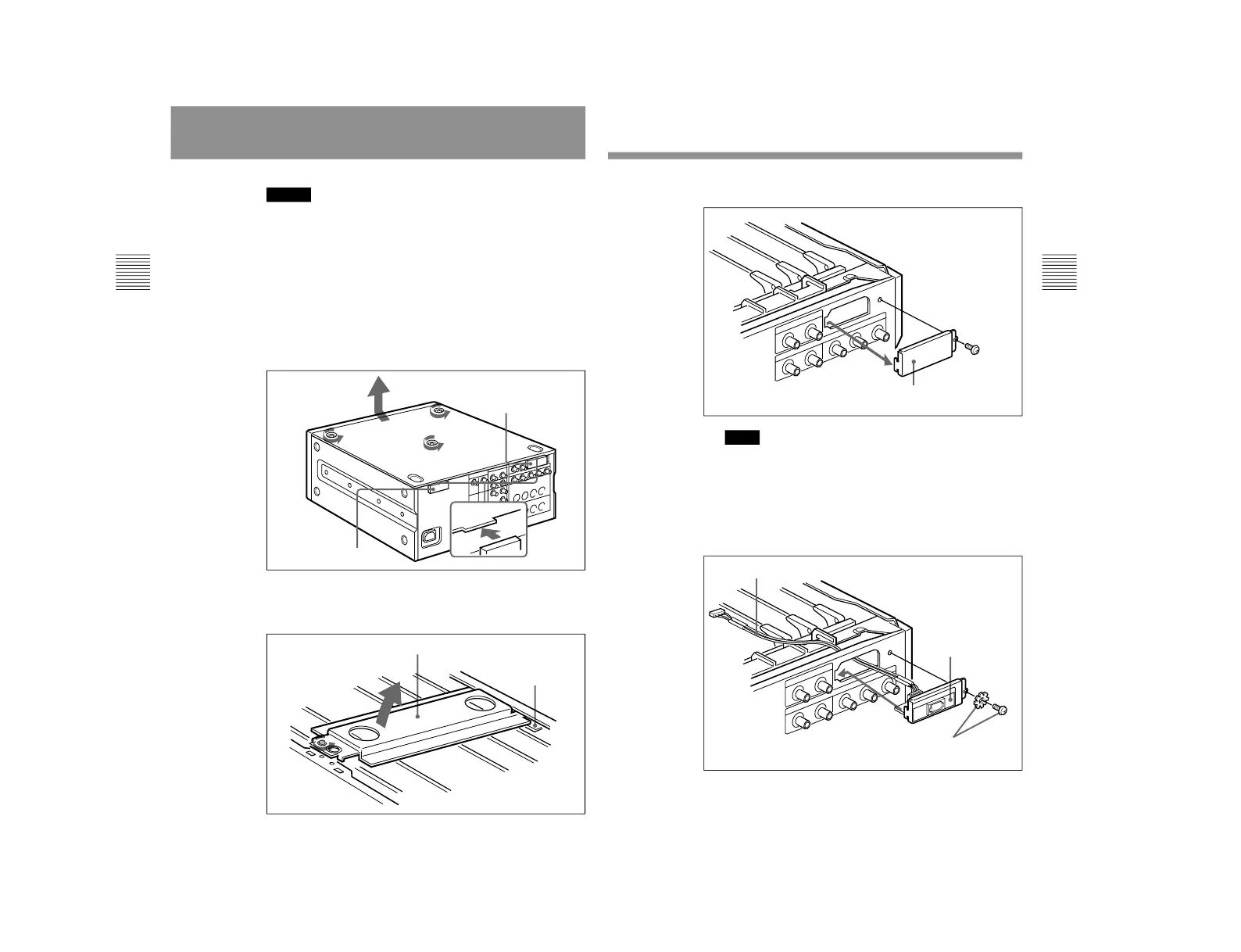

To install the DSBK-190 in the DSR-2000/2000P, proceed as
follows.
1
Remove the top cover of the DSR-2000/2000P.
Loosen the three screws, and slide the top cover away from
the top retainer and blank panel.
2
Remove the board retainer.
Loosen the screw, then raise the board retainer and pull it
out from the board retainer guide.
Top retainer
Screw
Blank panel
Board retainer
Screw
Screw
Screw
Board retainer guide
Installation
15
3
Remove the blank panel.
Notes
Keep the blank panel and screw in a safe place for future
use.
4
Pass the harness through the opening in which the
connector panel fits and connect it to the connector panel;
then fasten the connector panel to the DSR-2000/2000P
with the screw.
Screw
Blank panel
Harness
Connector panel
(Continued)
Supplied screw (silver-colored)
and washer
To Next Page
