Sony HCD-HPX7 - CD MECHANISM DECK (CDM82 A)

16
HCD-HPX7

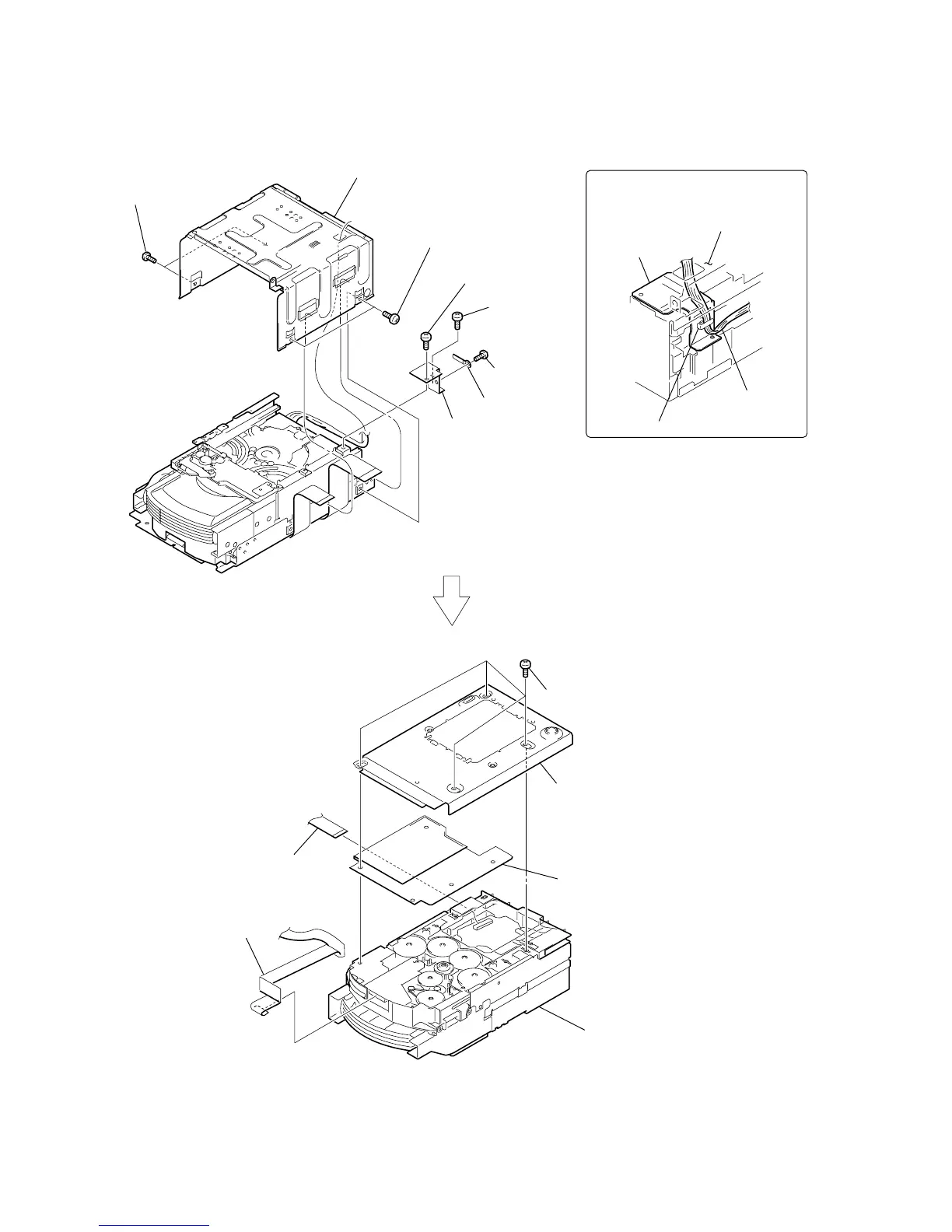

3-13. CD MECHANISM DECK (CDM82A)
9 four screws
(BVTT3 × 10 )
0 chassis
qs ffc cover
qd w ire (flat type)
21p (CN202)
qa w ire (flat type)
27p (CN801)
qf CD mechanism deck
(CDM82A)
1 two screws
(BVTT3 × 6 )
2 two screws
(BVTT3 × 6 )
6 screw
(BVTP2.6 × 8 )
7 screw
(BVTT3 × 6 )
4 screw
(BVTP2.6 × 8 )
8 plate
5 clamp
clamp
sub chassis
Please attach connector,
as shown in a figure.
connector
plate
3 sub chassis
