Sony HCD-HPX7 - Assembling of the Lever (Sub Gear Back L)

47
HCD-HPX7

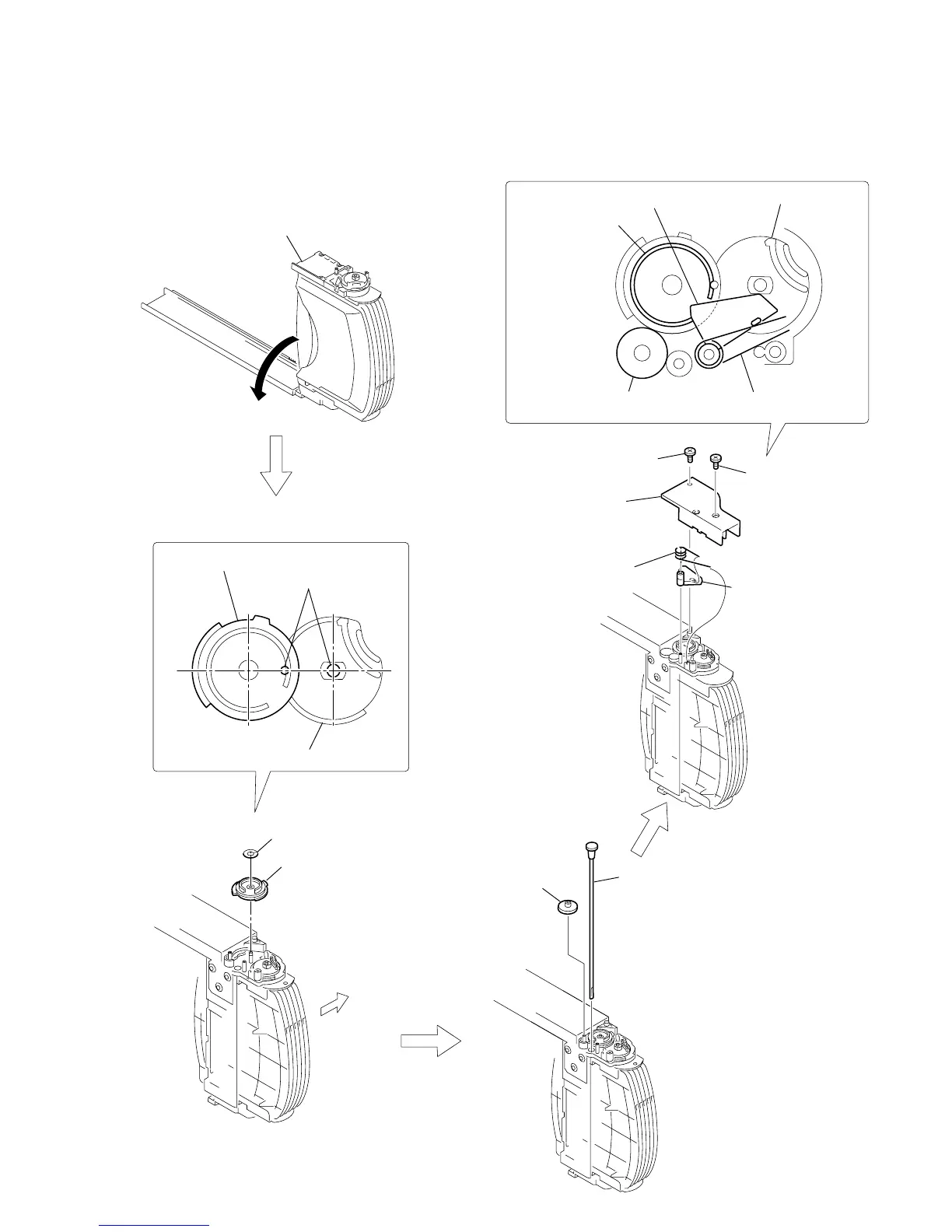

4-8. ASSEMBLING OF THE LEVER (SUB GEAR BACK L)
1 Turn over the stocker assy
in the direction of the arrow.
2 Adjust phases.
gear (stock rotary left)
gear (sub gear pin left)
3 gear (sub gear pin left)
4 washers (5.5)
qa k tapping screw
(2.6
× 8)
0 screw (M2 × 5)
9 cover (L)
7 lever
(sub gear back L)
8 SPR-T
(sub gear back L)
SPR-T (sub gear back L)
gear (stock rotary left)
sub gear (joint just front)
6 lever (joint just front)
gear (sub gear pin left)
5 gear (stock joint),
shaft (stock)
lever (sub gear back L)
PRECAUTION DURING SPR-T
(SUB GEAR BACK L) INSTALLATION
PRECAUTION DURING GEAR
(SUB GEAR PIN LEFT) INSTALLATION
UPPER
SIDE
