Sony HCD-HPX7 - Assembling of the Gear (Stock Rot Long) (Left)

43
HCD-HPX7

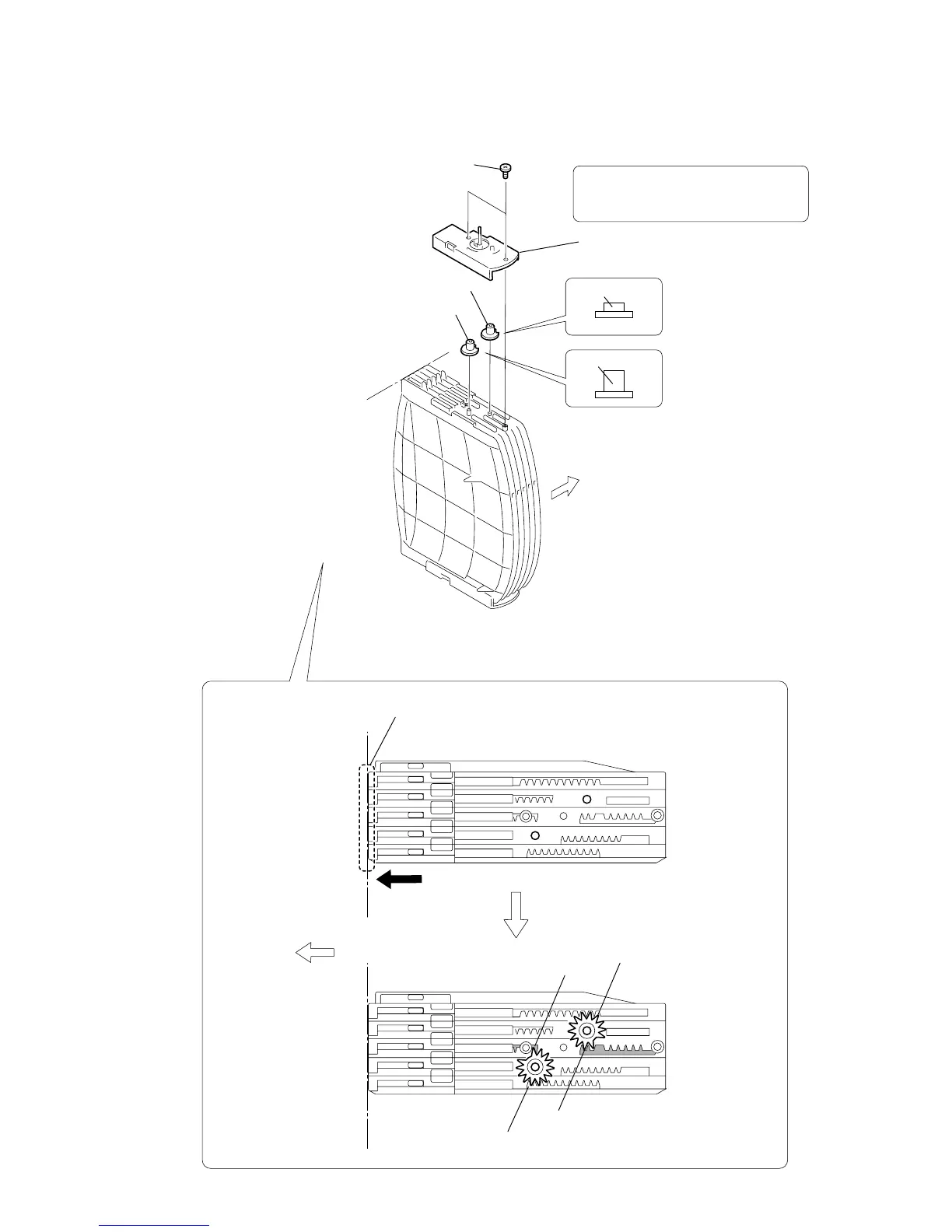

4-4. ASSEMBLING OF THE GEAR (STOCK ROT LONG) (LEFT)
4 gear (stock rot long)
2 gear (stock rot short)
6 two screws (2 × 6)
3 Adjusting the two stockers
5 Adjusting the one stockers
7 stocker box (L)
gear (stock rot long)
gear (stock rot short)
FRONT
SIDE
PRECAUTION DURING GEAR
(STOCK ROT SHORT, STOCK ROT SHORT LONG)
INSTALLATION
UPPER
SIDE
long
short
Note.
Install the stock box (L) right after finishing
the phase adjustment.
1 Align the edges of the stockers. Keep the position of
the stockers until finishing installation of the gear
(stock rot short) and the stock box (L).
