Sony HCD-HPX7 - CHASSIS SECTION-1

85
HCD-HPX7
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

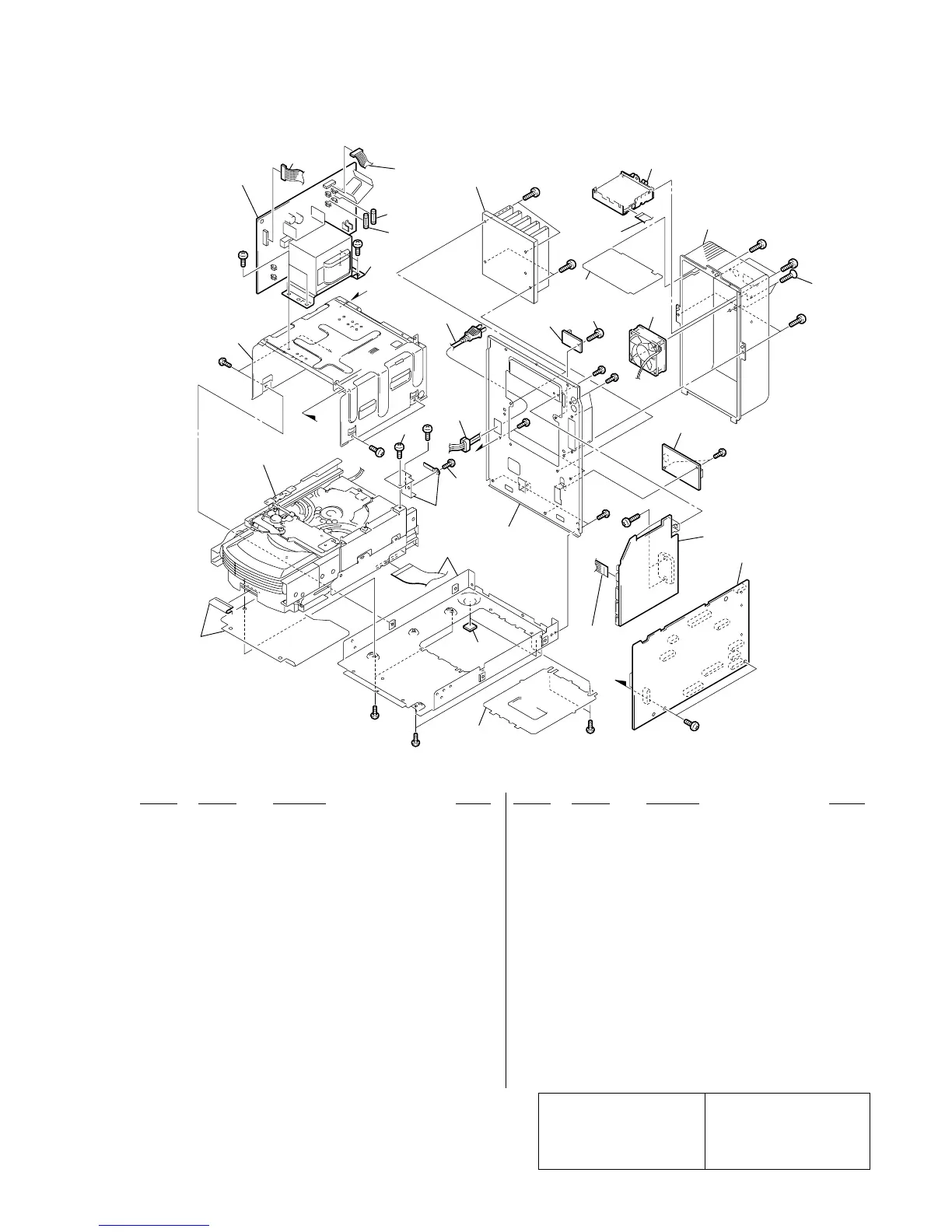

8-3. CHASSIS SECTION-1
CD mechanism
deck section (CDM82A)
a
a
b
b
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
F901
F902
not
supplied
not
supplied
not
supplied
not
supplied
T901
not
supplied
#11
#11
#13
#12
#12
#9
#9
#7
#13
#9
#9
#5
#9
#9
#10
#10
#10
#9
#7
#7
#7
108
103
104
111
111
107
106
102
109
105
101
110
not
supplied
not
supplied
101 1-693-625-11 TUNER (FM/AM) (CND)
101 1-693-626-11 TUNER (FM/AM) (AEP)
101 1-693-626-11 TUNER (FM/AM) (UK)
101 1-693-628-11 TUNER (FM/AM) (E3, MX, TW, AUS)
101 1-693-629-11 TUNER (FM/AM) (KR)
102 1-787-103-11 FAN, DC
0 103 1-769-079-41 CORD, POWER (KR)
0 103 1-769-744-52 CORD, POWER (AEP, UK)
0 103 1-775-790-12 CORD, POWER (AUS)
0 103 1-783-531-22 CORD, POWER (CND)
0 103 1-827-226-11 CORD, POWER (E3, MX)
0 103 1-827-597-31 CORD, POWER (TW)
* 104 3-703-571-12 BUSHING (S) (4516), CORD (E3, MX)
104 3-703-244-00 BUSHING (2104), CORD (EXCEPT E3, MX)
0 105 1-468-738-11 REGULATOR, SWITCHING
106 4-671-016-01 SCREW (FAN)
107 A-1061-313-A AMP BOARD, COMPLETE (CND)
107 A-1061-433-A AMP BOARD, COMPLETE (AEP, UK)
107 A-1061-758-A AMP BOARD, COMPLETE
(E3, MX, TW, KR, AUS)
108 A-1061-304-A POWER BOARD, COMPLETE (CND)
108 A-1061-432-A POWER BOARD, COMPLETE (AEP, UK)
108 A-1061-757-A POWER BOARD, COMPLETE (E3)
108 A-1061-769-A POWER BOARD, COMPLETE (AUS)
108 A-1061-775-A POWER BOARD, COMPLETE (TW)
108 A-1061-798-A POWER BOARD, COMPLETE (KR)
108 A-1062-115-A POWER BOARD, COMPLETE (MX)
109 A-1061-315-A MAIN BOARD, COMPLETE (CND)
109 A-1061-436-A MAIN BOARD, COMPLETE (AEP, UK)
109 A-1061-762-A MAIN BOARD, COMPLETE (E3, TW, AUS)
109 A-1061-791-A MAIN BOARD, COMPLETE (KR)
109 A-1062-111-A MAIN BOARD, COMPLETE (MX)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
– Continued on page 86 –
