Sony HCD-HPX7 - Rotary Encoder

28
HCD-HPX7

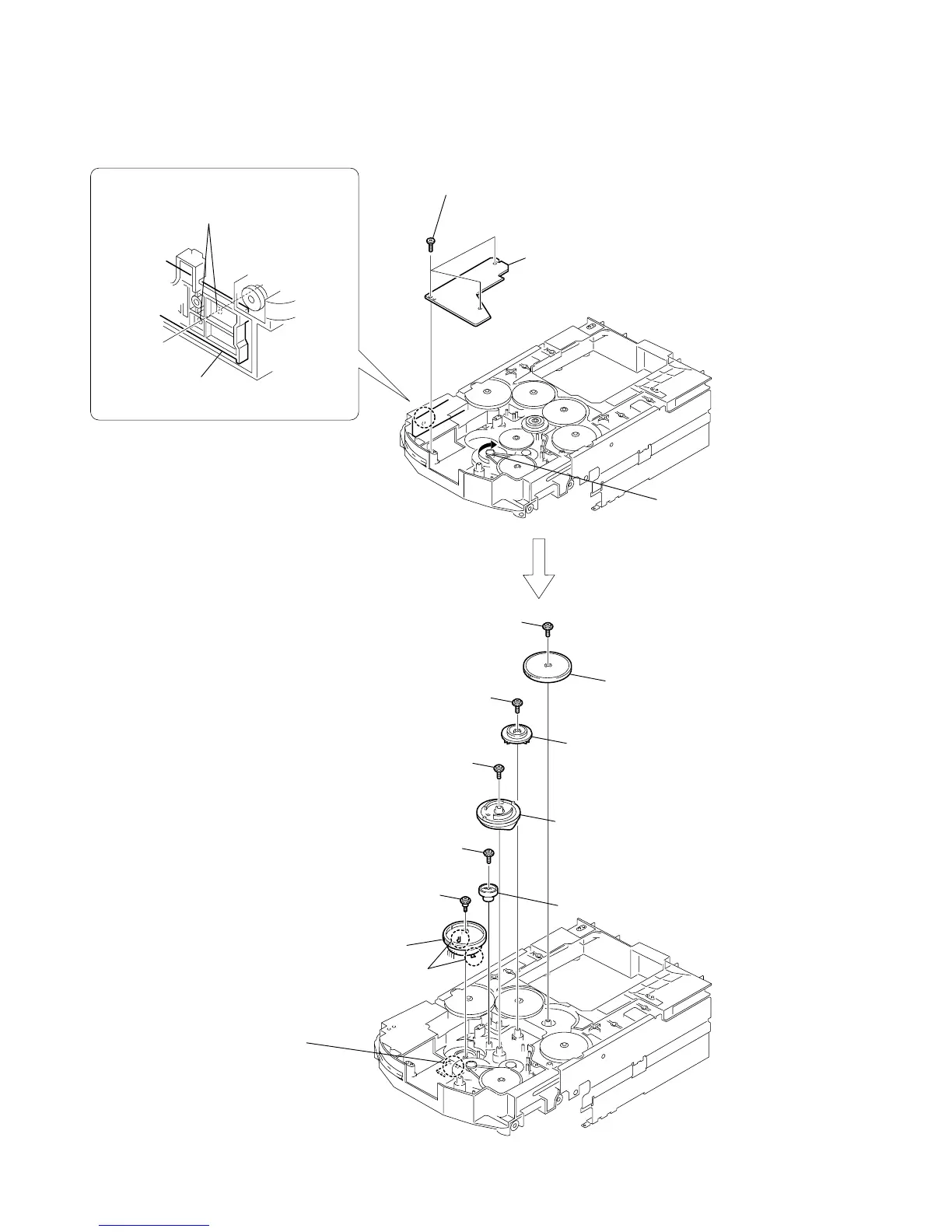

3-30. ROTARY ENCODER
1 three screws
(BTTP M2.6
× 6)
6 screw
(PTPWH2.6 × 8)
8 screw
(PTPWH2.6 × 8)
0 screw
(PTPWH2.6 × 8)
qs screw
(PTPWH2.6 × 8)
qf step tapping screw
(PWH2 × 6)
qj rotary encoder
2 RELAY board
4 Rotate the ELV motor until the position for
the hole on the chassis can be seen
through the plate (comR).
3 Rotate the ELV motor in
the direction of the arrow.
7 gear (pulley UD)
9 gear (geneva 2)
qa gear (geneva 1)
qd gear (encoder)
qg Remove soldering
from the five points
qh two claws
plate (com R)
