52
HCD-HPX7

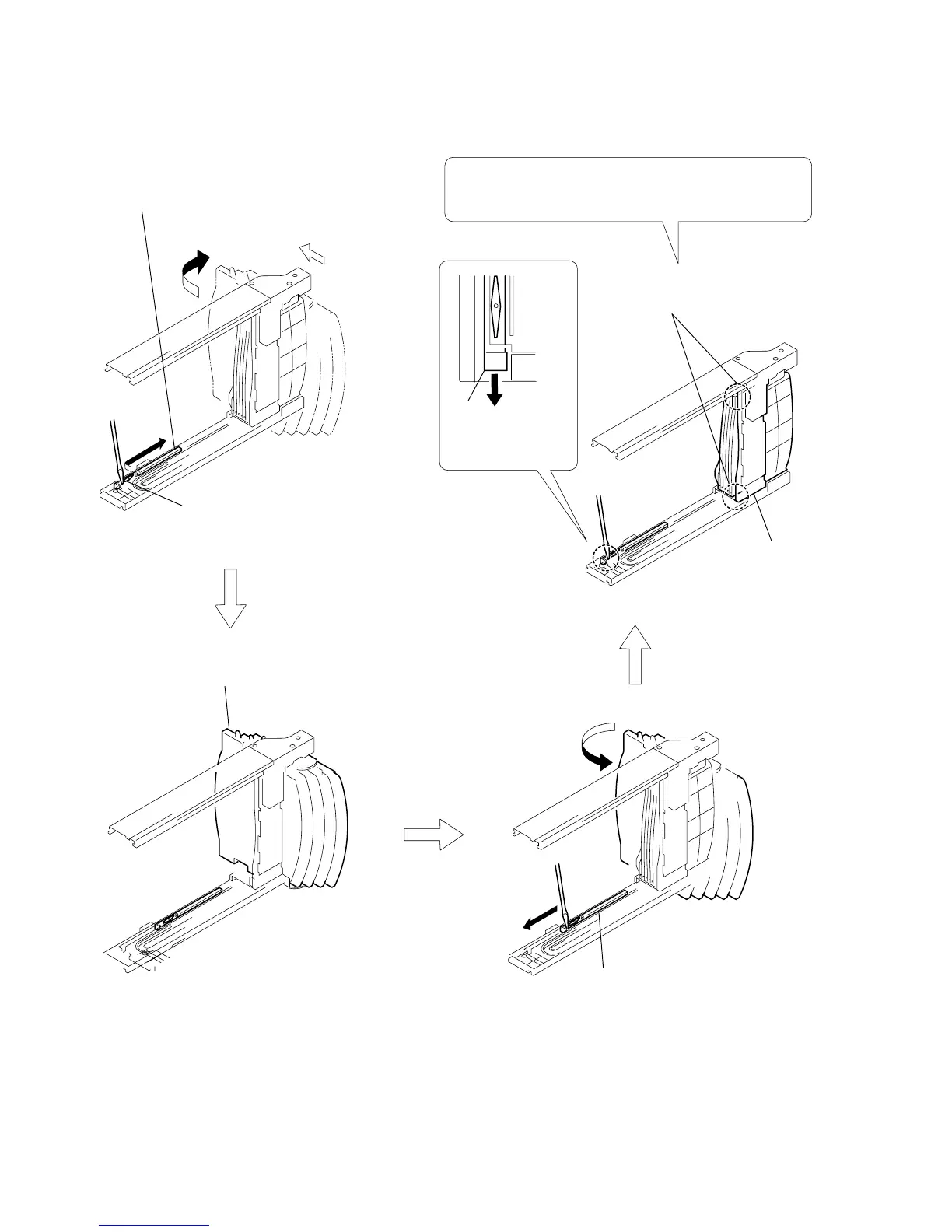

4-13. CONFIRMING THE ASSEMBLING OF THE ARM SECTION
1
Release the lock of the sub slider assy
and slide it in the direction of the arrow.
4
Slide the stocker assy in the
direction of the arrow.
5
Push the sub slider
assy into the end of
the arm (R).
3
Check point 2:
All the stocker assy is standing.
6
Check point 3:
Two parts of the stopper
touch the stock base (B).
stock base (B)
Note.
If the two parts of the stopper do not touch the stock base (B) when
the sub slider assy is pushed to the end, the phases are not correctly
adjusted. Reassemble the assy.
UPPER
SIDE
2
Check point 1:
The smooth movement of
this part when sliding.
To Next Page
