Sony HCD-HPX7 - OPTICAL PICK-UP BLOCK

9
HCD-HPX7

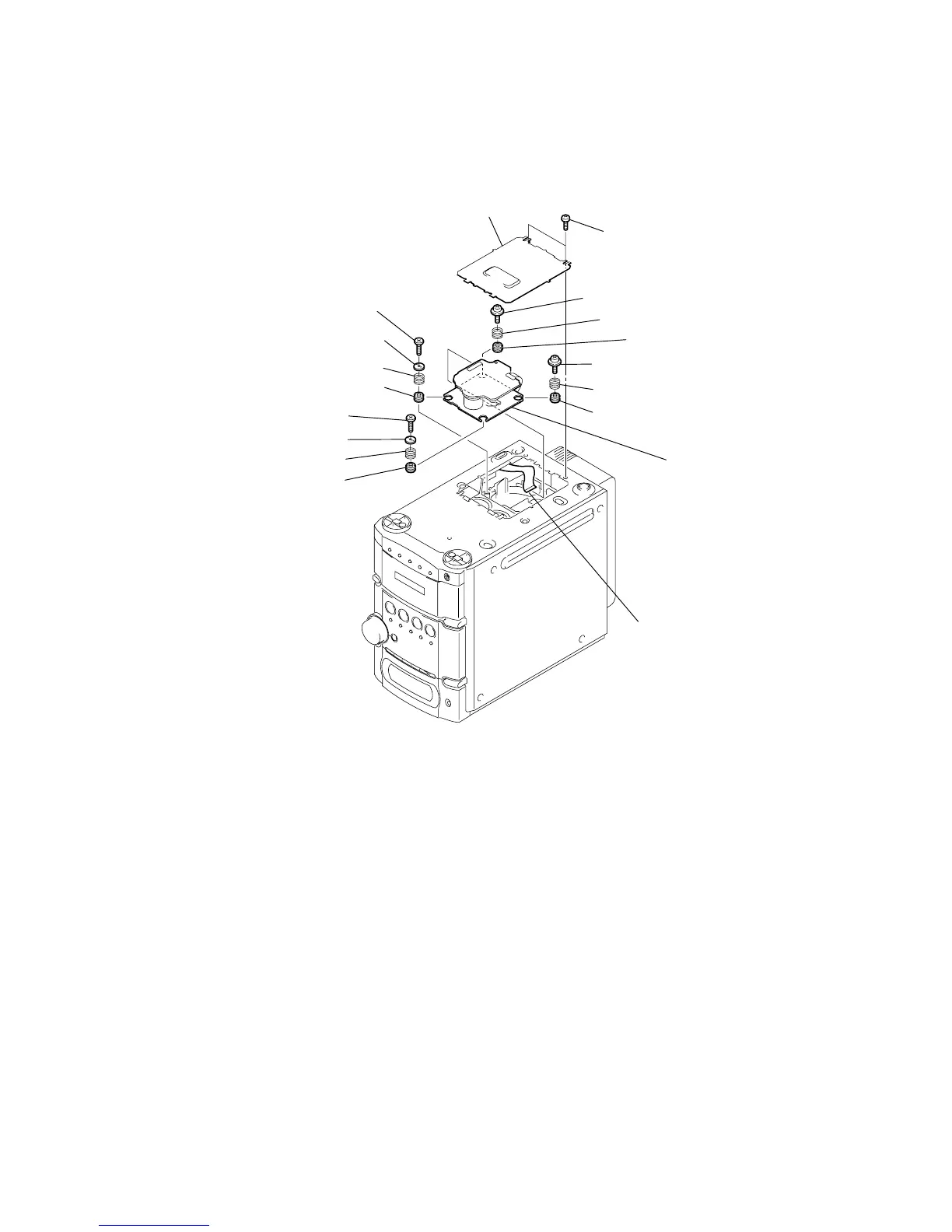

1 two screws
(BVTT3 × 6 )
qs flotaing screw
(+PTPWH M2.6)
0 flotaing screw
(+PTPWH M2.6)
4 screw
(BTTP M2.6)
7 screw
(BTTP M2.6)
2 bottom cover plate
qk optical pick-up bloc
k
qd insulator spring (coil)
qa insulator spring (coil)
6 insulator spring (coil)
9 insulator spring (coil)
5 BU stopper
8 BU stopper
qh insulator
qj insulator
qf insulator
qg insulator
3 w ire (flat type)
27p(CN201)
Note: Follow the disassembly procedure in the numerical order given.
3-3. OPTICAL PICK-UP BLOCK
