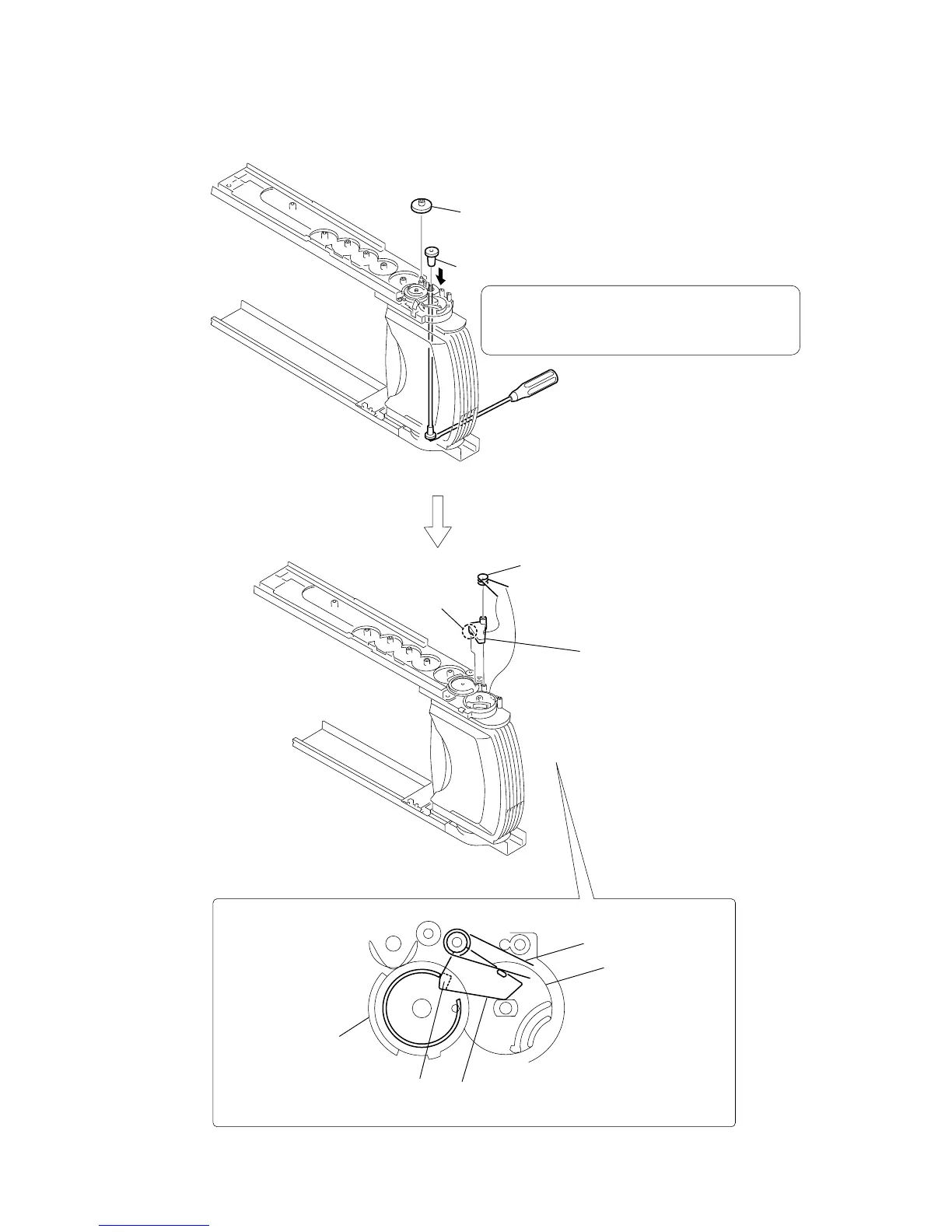

4-10. ASSEMBLING OF THE LEVER (SUB GEAR BACK R)
SPR-T (sub gear back R)
gear (stock rotary right)
lever (sub gear back R)
gear (sub gear pin right)
claw
2 gear (stock joint)
1 sub (joint just front)
Note:
Put the driver on the bottom of the other side of the gear,
and push the gear (stock joint) into it. Confirm it is
attached securely.
4 lever (sub gear back R)
5 SPR-T (sub gear back R)
3 claw
PRECAUTION DURING SPR-T
(SUB GEAR BACK R) INSTALLATION
