Sony HCD-HPX7 - CD BOARD; OPTICAL PICK-UP (KSM-215 DCP)

34
HCD-HPX7

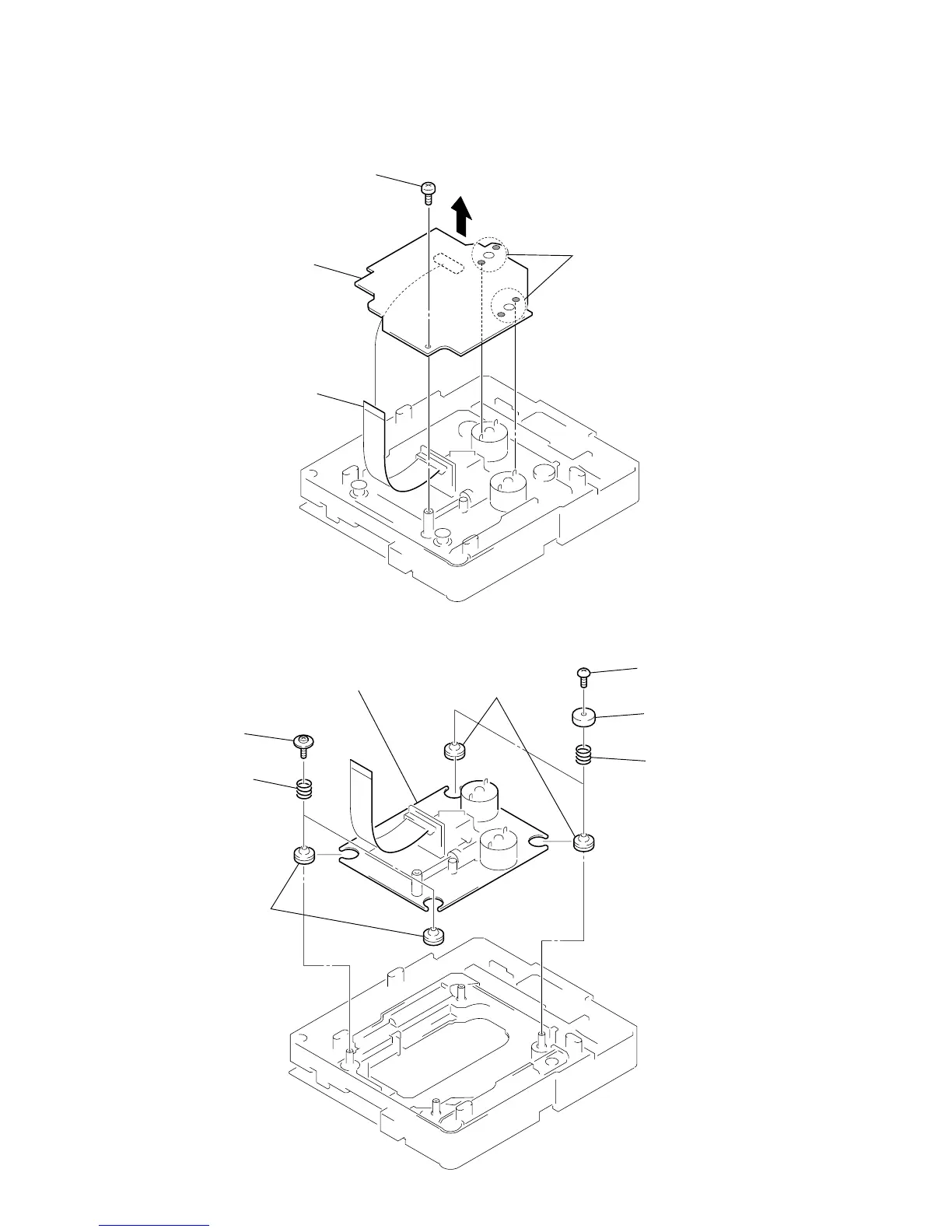

3-37. CD BOARD
2 Remove soldering
from the four points.
1 screw
(BVTP2.6 × 8)
4 CD board
3 wire (flat type)
(16 core) (CN102)
3-38. OPTICAL PICK-UP (KSM-215DCP)
1 two screws
(BVTP2.6
× 8)
4 two floating screws
(PTPWH M2.6)
5 two coil springs (insulator)
3 two coil springs (insulator)
6 two insulators
7 two insulators
8 optical pick-up
(KSM-215DCP)
2 two stoppers (BU)
