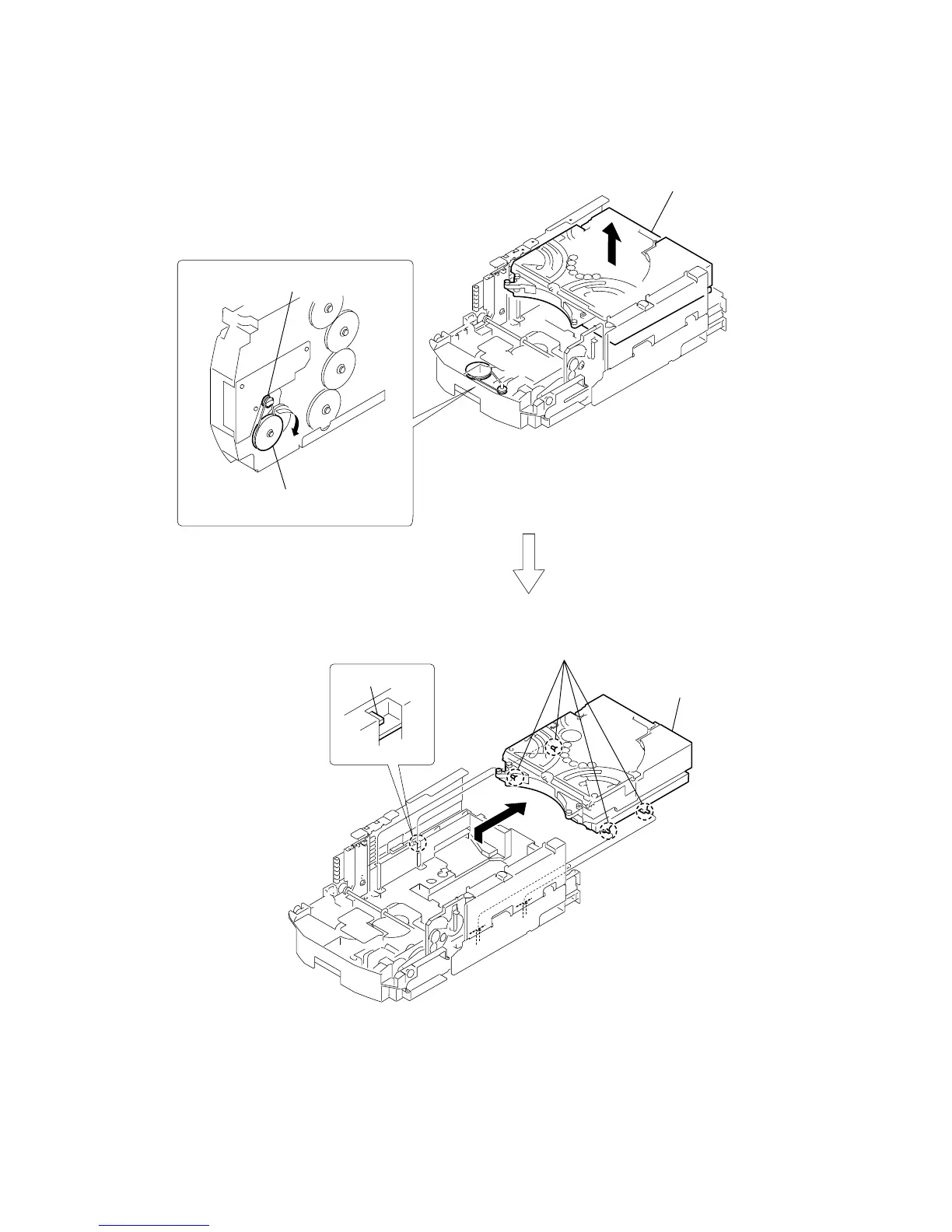

3-17. CD MECHANISM DECK SECTION
A
4 Remove the CD mechanism deck section
in the direction of the arrow
C .
1 T urn over the pulley (ELV motor)
in the direction of the arrow
A .
pulley (ELV motor)
3 four claws
plate (cam L)
B
C
2
Slide the CD mechanism deck section
in the direction of the arrow
B .
