Sony HCD-HPX7 - CD MECHANISM DECK SECTION-1 (CDM82 A)

87
HCD-HPX7
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

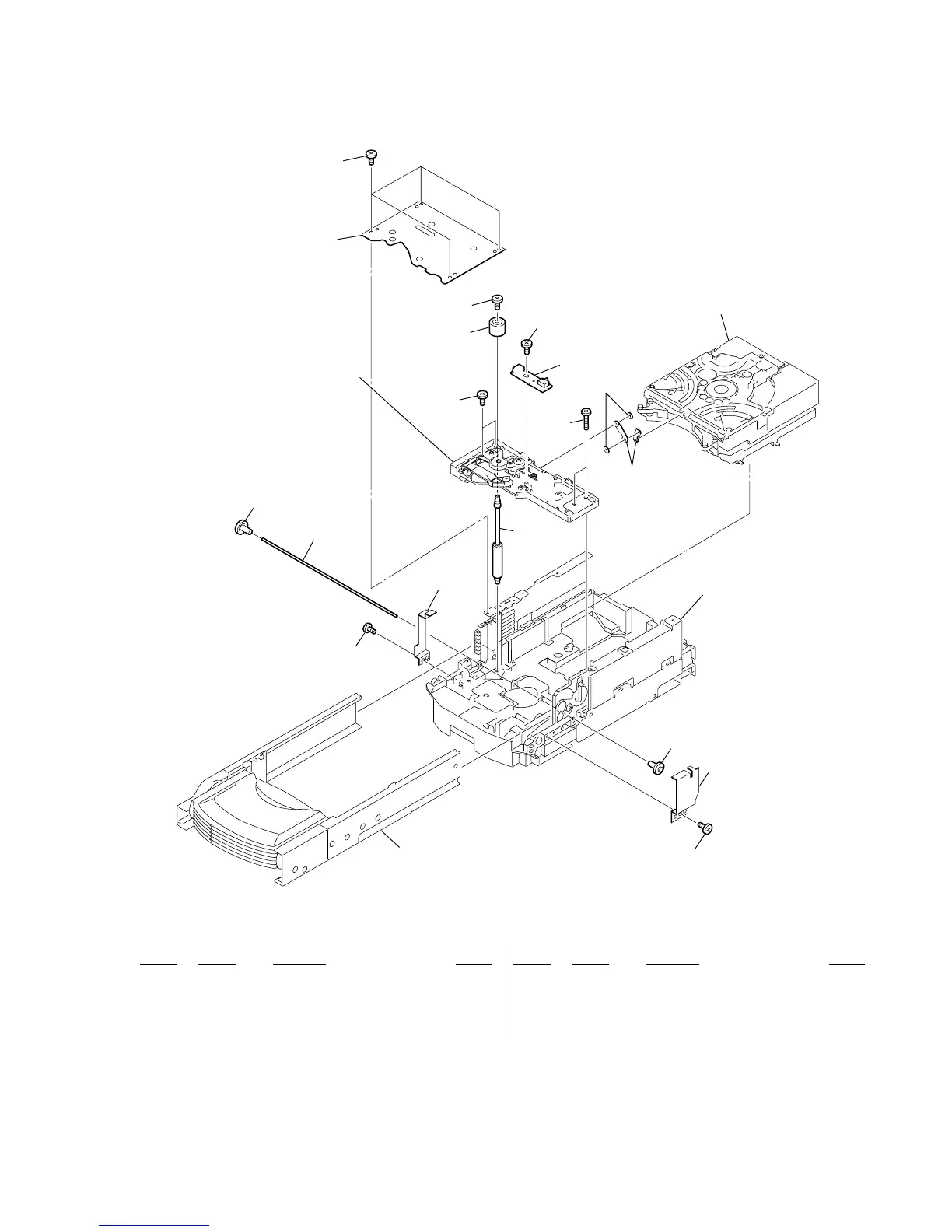

8-5. CD MECHANISM DECK SECTION-1
(CDM82A)
701 4-218-253-31 SCREW (M2.6), +BTTP
702 4-252-881-01 GEAR (JOINT OP)
703 4-252-918-01 SHAFT (CONNECTION)
704 4-253-811-01 +PTPWH 2X14
705 4-255-299-01 WASHER (3.5)
706 4-908-618-42 SCREW (+BTP) (2X8)
707 4-252-853-01 GEAR (CONNECTION TP)
706
707
701
703
706
701
not
supplied
not
supplied
not
supplied
701
701
702
705
704
702
CD mechanism deck section -2, -3, -4 (CDM82A)
CD mechanism deck section -5 (CDM82A)
CD mechanism deck section -6, -7 (CDM82A)
CD mechanism deck section -8, -9, -10 (CDM82A),
base unit section (BU-F1BD81A)
not
supplied
not
supplied
not
supplied
