Sony HCD-HPX7 - Printed Wiring Board - PANEL Section

7272
HCD-HPX7
HCD-HPX7

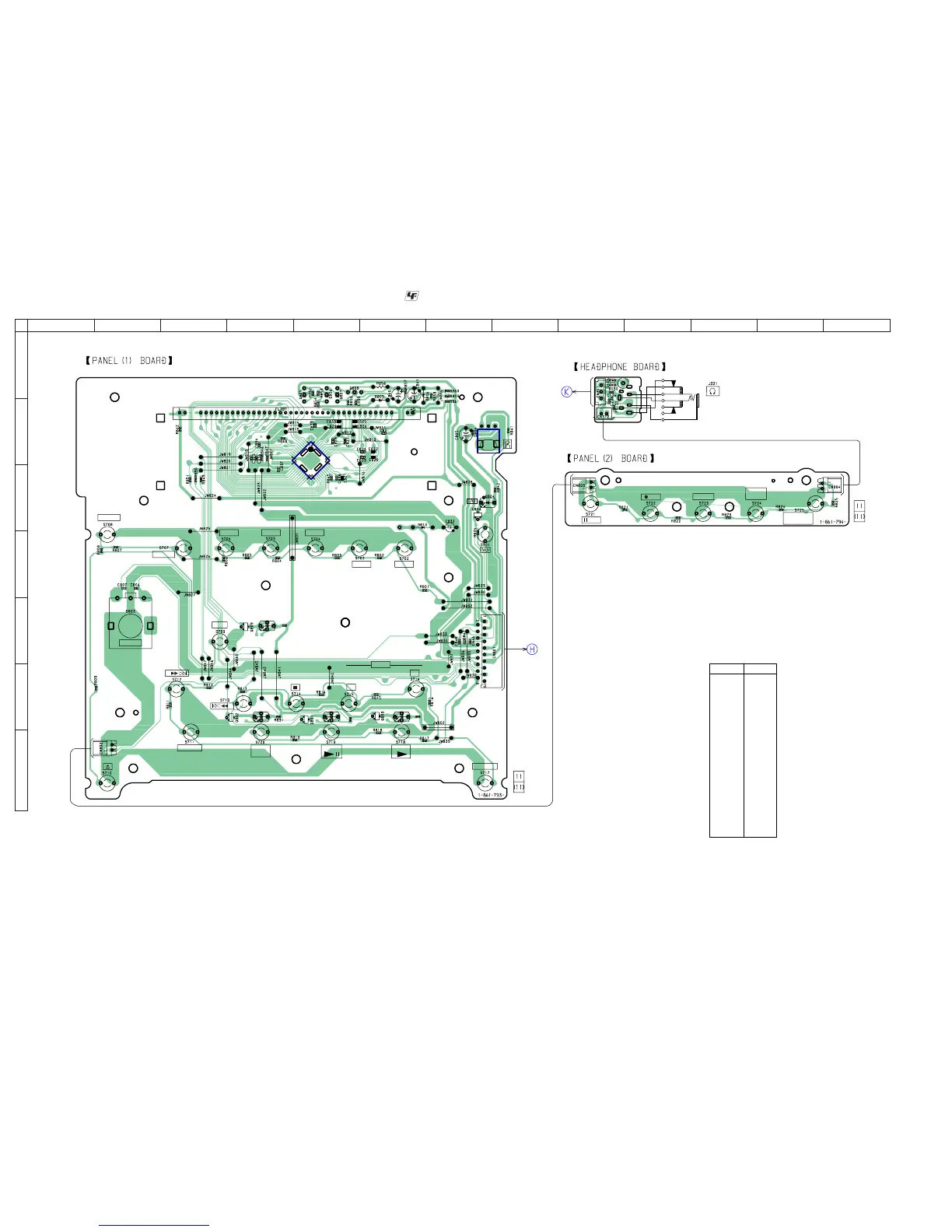

7-14. PRINTED WIRING BOARD — PANEL SECTION —
• See page 57 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D801 F-5
D802 F-4
D803 F-6
D804 C-7
D805 A-6
D806 A-6
D807 E-4
D810 C-6
IC801 B-5
IC802 B-7
Q801 F-5
Q802 F-4
Q803 F-6
Q804 C-7
Q805 A-5
Q806 A-5
Q807 A-5
Q808 A-5
Q809 E-4
IC801
IC802
AMP
BOARD
CN604
(Page 70)
TAPE
REC
CD SYNC
REPEAT/
FM MODE
PLAY MODE/
TUNING MODE
DISC 1DISC 2
ALBUM
EX-CHANGE
TAPE
DISC 3DISC 4DISC 5
DISC (+1)
+
+
DISC SKIP
VOLUME
DSGX
FUNCTION
TUNER/
BAND
(FLUORESCENT INDICATOR TUBE)
EEE
E
–
-
MAIN
BOARD
CN310
(Page 66)
CD
E
E
E
E
E
1
3
D807
D802
R830
D801 D803
R832
R833
12
A
B
C
D
E
F
G
345678910111213
