Sony HCD-HPX7 - EXPLODED VIEWS

83
HCD-HPX7
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS:Australian model
CND : Canadian model
E3 : 240 V AC area in E model
KR : Korean model
MX : Mexican model
TW : Taiwan model
Ref. No. Part No. Description Remark

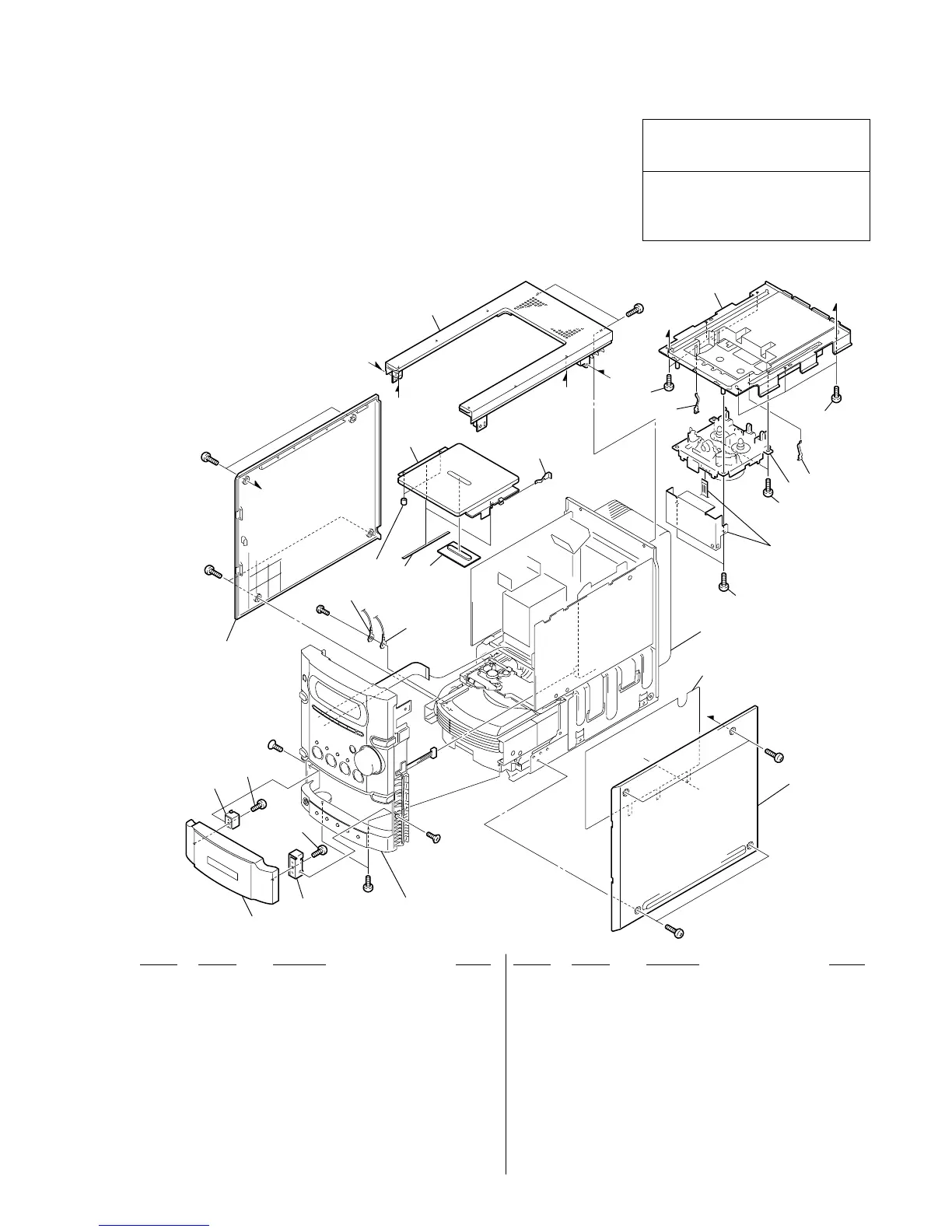

8-1. SIDE PLATE, TOP PANEL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
front panel section
chassis section
a
b
c
c
d
d
b
a
not
supplied
not
supplied
not
supplied
#8
#6
#5
#5
#6
#9
#7
#4
#4
not
supplied
not
supplied
not
supplied
1
12
12
not
supplied
2
7
6
11
5
3
4
8
12
12
12
10
9
10
12
Ref. No. Part No. Description Remark
1 4-253-148-01 PANEL, CD (CND)
1 4-253-148-11 PANEL, CD (EXCEPT CND)
2 4-253-151-01 PLATE (L), SIDE (CND)
2 4-253-151-11 PLATE (L), SIDE (EXCEPT CND)
3 4-253-152-01 PLATE (R), SIDE (CND)
3 4-253-152-11 PLATE (R), SIDE (EXCEPT CND)
4 4-253-114-01 PANEL, TOP (CND)
4 4-253-114-11 PANEL, TOP (EXCEPT CND)
5 4-253-111-01 DOOR, CASSETTE
6 4-253-113-01 WINDOW (CASSETTE)
7 2-025-481-01 SLIDE PAD
8 4-253-112-01 PANEL, CASSETTE (CND)
8 4-253-112-11 PANEL, CASSETTE (EXCEPT CND)
9 1-796-352-51 DECK, MECHANICAL (CMAL5Z225A)
10 4-253-116-01 SPRING (CASSETTE), LEAF
11 4-253-117-01 SPRING (SLIDE), LEAF
12 4-951-620-01 SCREW (2.6X8), +BVTP
#4 7-685-246-19 SCREW +KTP 3X8 TYPE2 NON-SLIT
#5 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#6 7-685-645-14 SCREW +BVTP 3X6 TYPE2 N-S
#7 7-685-871-01 SCREW +BVTT 3X6 (S)
#8 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#9 7-685-646-14 SCREW +BVTP 3X8 TYPE2 N-S
