Sony HCD-HPX7 - Assembling of the Gear (Stock Rotary Left)

45
HCD-HPX7

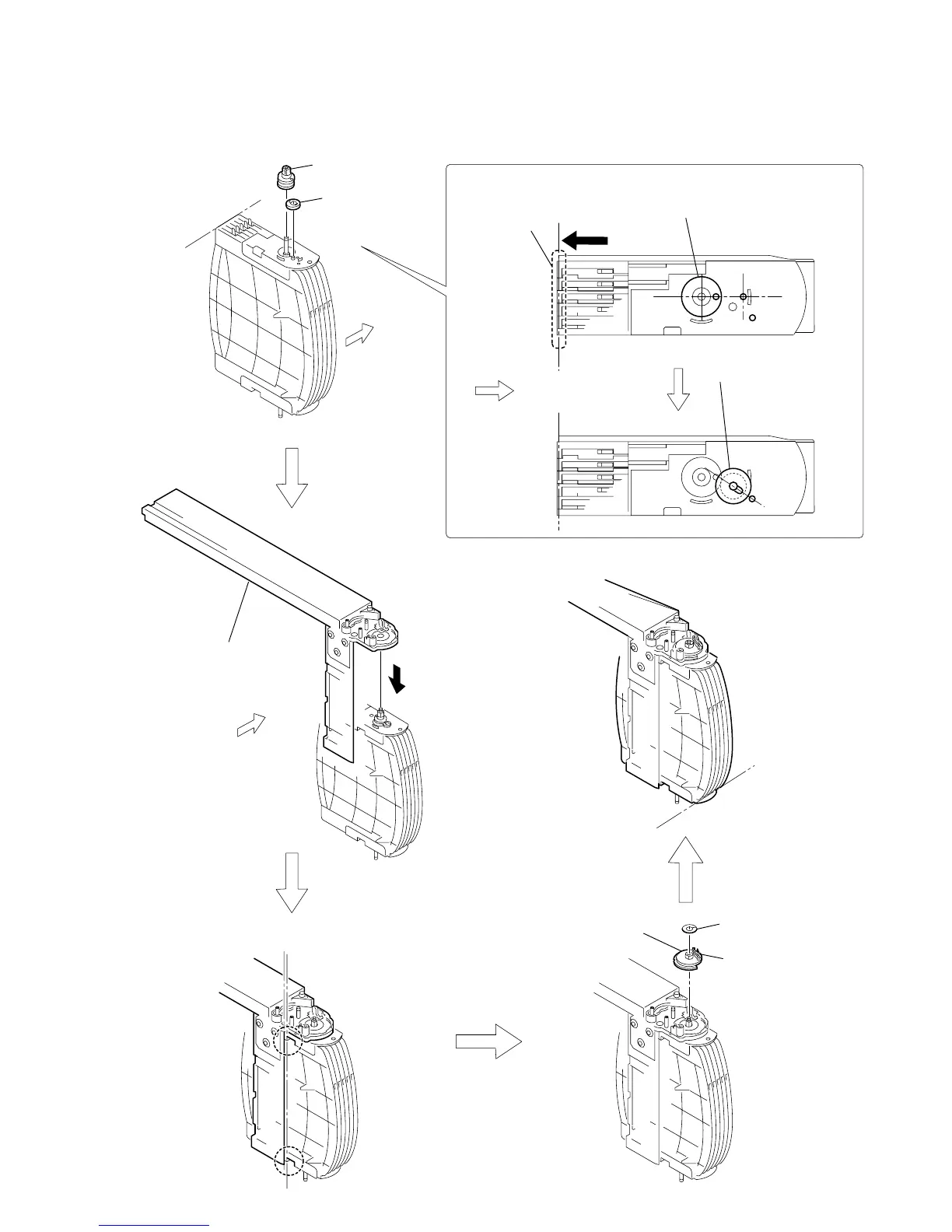

4-6. ASSEMBLING OF THE GEAR (STOCK ROTARY LEFT)
6 Move the arm (L) and the stock
base (B) vertically to the gear.
7 Check if the stock base (B) is kept
parallel with groove of the stocker.
2 gear (stock sun)
PRECAUTION DURING GEAR (STOCK PLANET) INSTALLATION
5
Position to adjust phases
for the gear (stock planet)
3 Position to adjust phases
for the gear (stock sun).
1 Align the edges of stockers,
and keep the position.
0 Align the edges of stockers,
and keep the position.
8 gear (stock rotary left)
4 gear (stock planet)
9 washer (5.5)
The cut-off curve should
face to the front.
FRONT
SIDE
UPPER
SIDE
UPPER
SIDE
