Sony HCD-HPX7 - CHASSIS SECTION-2

86
HCD-HPX7
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

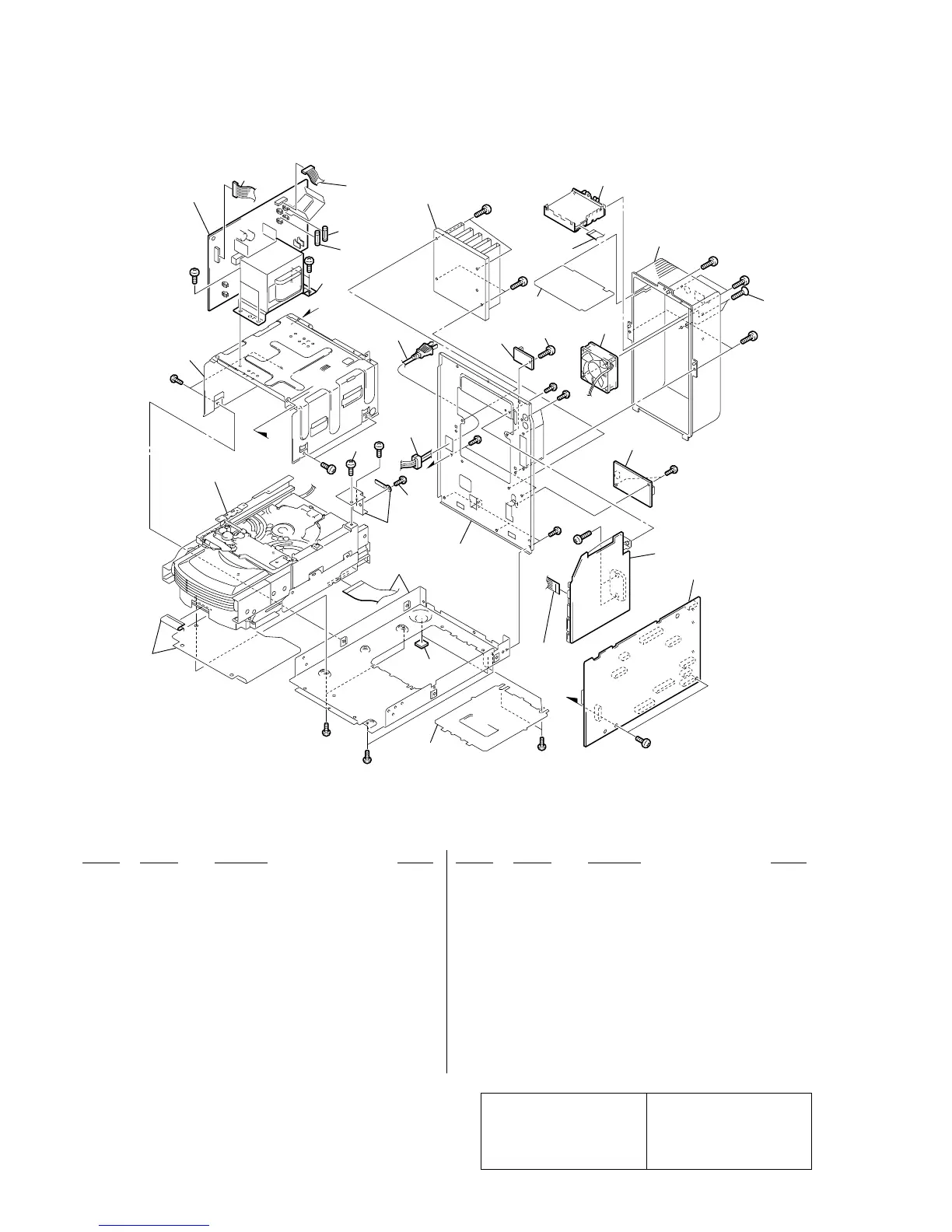

8-4. CHASSIS SECTION-2
CD mechanism
deck section (CDM82A)
a
a
b
b
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
F901
F902
not
supplied
not
supplied
not
supplied
not
supplied
T901
not
supplied
#11
#11
#13
#12
#12
#9
#9
#7
#13
#9
#9
#5
#9
#9
#10
#10
#10
#9
#7
#7
#7
108
103
104
111
111
107
106
102
109
105
101
110
not
supplied
not
supplied
– Continued from page 85 –
110 2-050-617-01 FOOT
111 4-951-620-01 SCREW (2.6X8), +BVTP
0 F901 1-533-452-12 FUSE, GLASS TUBE (DIA. 5) (T4AL/125V)
(CND)
0 F901 1-533-471-12 FUSE, GLASS TUBE (DIA. 5) (T4AL/250V)
(EXCEPT CND, TW)
0 F901 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (T5AL/125V) (TW)
0 F902 1-533-452-12 FUSE, GLASS TUBE (DIA. 5) (T4AL/125V)
(CND)
0 F902 1-533-471-12 FUSE, GLASS TUBE (DIA. 5) (T4AL/250V)
(EXCEPT CND, TW)
0 F902 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (T5AL/125V) (TW)
0 T901 1-443-266-11 TRANSFORMER, POWER (CND)
0 T901 1-443-331-11 TRANSFORMER, POWER (AEP)
0 T901 1-443-331-11 TRANSFORMER, POWER (UK)
0 T901 1-443-332-11 TRANSFORMER, POWER
(E3, MX, TW, KR, AUS)
#5 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#7 7-685-871-01 SCREW +BVTT 3X6 (S)
#9 7-685-646-14 SCREW +BVTP 3X8 TYPE2 N-S
#10 7-685-645-10 SCREW +BVTT 3X6
#11 7-685-880-09 SCREW +BVTT 4X6 (S) (AEP)
#12 7-685-648-79 SCREW +P 3X12 TYPE2 NON-SLIT
#13 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
