Sony HCD-HPX7 - Plate (Push) Assy

38
HCD-HPX7

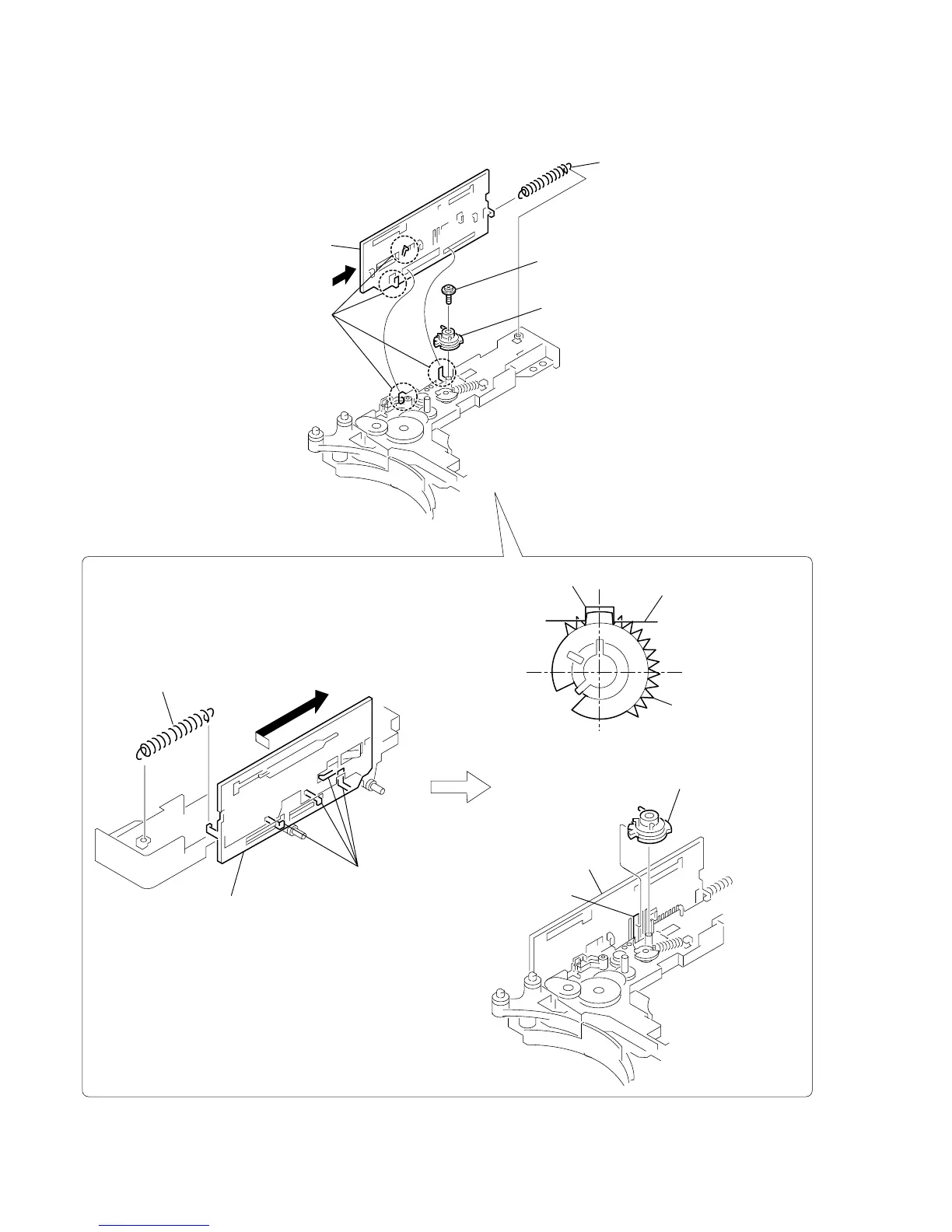

3-44. PLATE (PUSH) ASSY
1 SPR-E (plate-push-back)
3 SPR-E (plate-push-back)
2 screw (PTPWH M2)
3 gear (tako second)
4 gear (tako second)
4 four claws
2 four claws
5 Remove the plate (push) assy
in the direction of the arrow.
1 Remove the plate (push) assy
in the direction of the arrow.
PRECAUTION DURING GEAR (TAKO SECOND) INSTALLATION
gear (tako second)
Adjust phases.
5 Adjust phases.
plate (push) assy
plate (push) assy
