Sony HCD-HPX7 - Assembling of the Gear (Stock Rotary Right)

46
HCD-HPX7

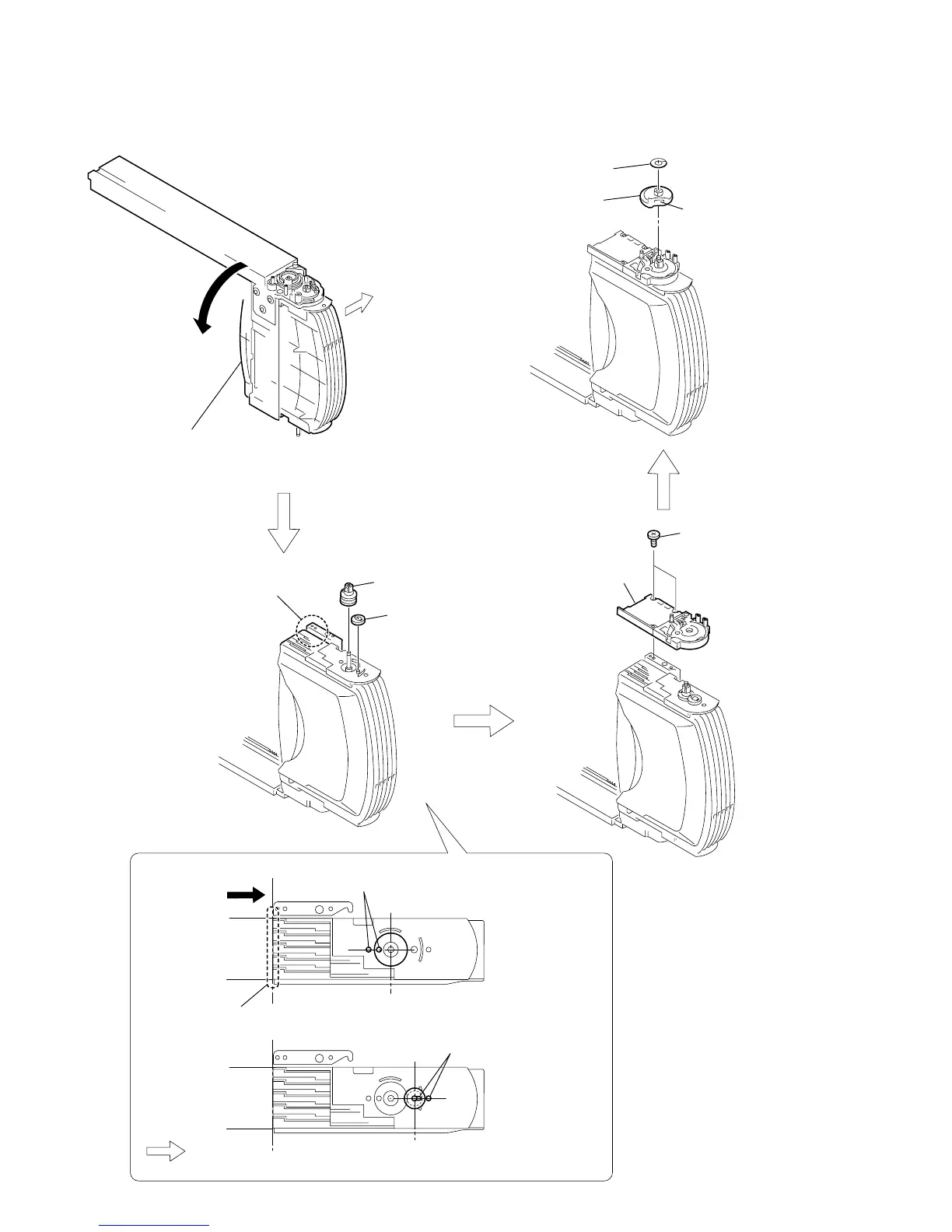

4-7. ASSEMBLING OF THE GEAR (STOCK ROTARY RIGHT)
4 gear (stock sun)
6 gear (stock planet)
7 Position to adjust phases
for the gear (stock planet).
5 Position to adjust phases
for the gear (stock sun).
2 Keep the position of the edges of
the stockers and adjust phases.
FRONT
SIDE
3 Check that these faces are positioned
parallel to each other.
1 Turn over the stocker assy
in the direction of the arrow.
9 two screws
(BTTP M2.6 × 6)
8 stock base (A)
0 gear (stock rotary right)
qa washers (5.5)
The cut-off curve should
face to the front.
PRECAUTION DURING GEAR
(STOCK PLANET) INSTALLATION
UPPER
SIDE
