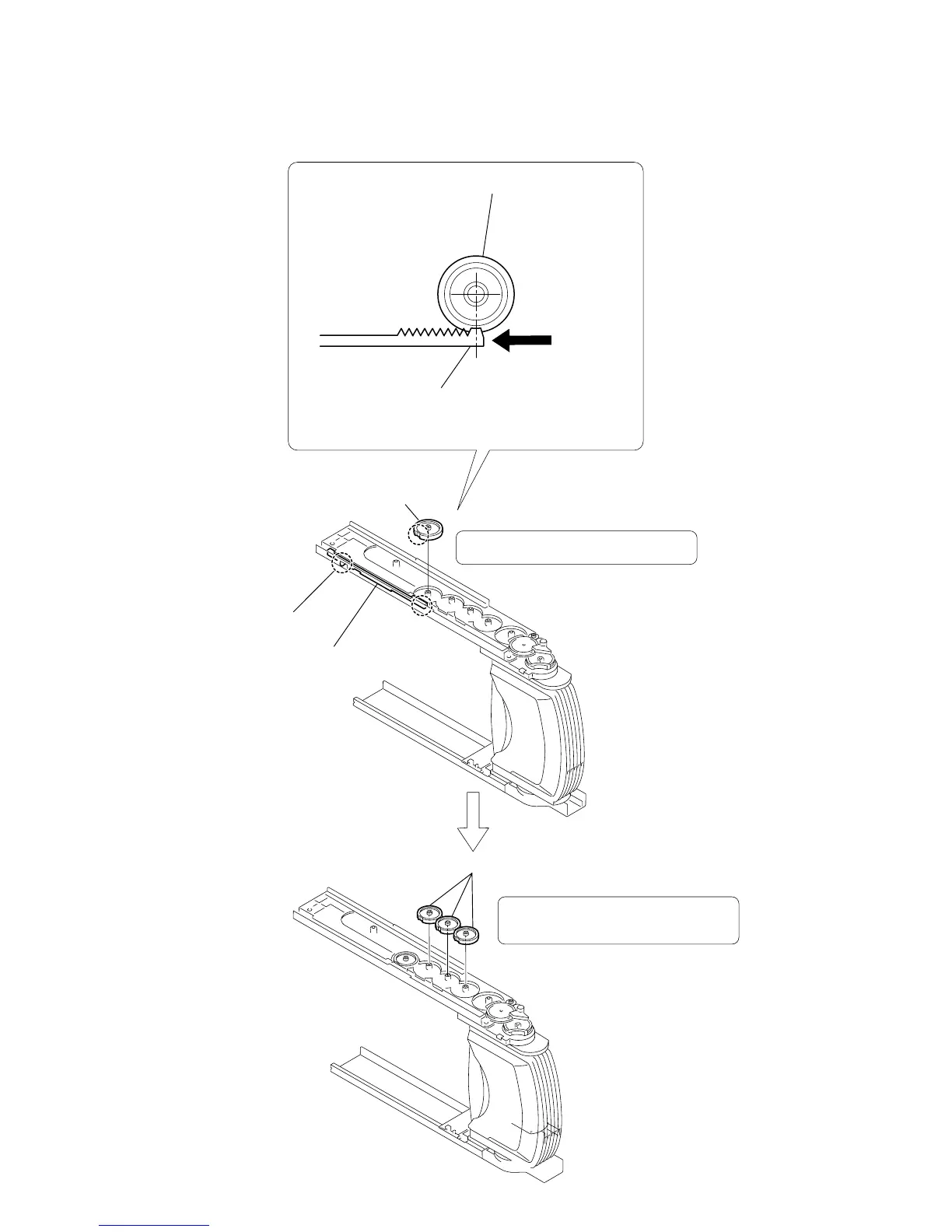

4-11. ASSEMBLING OF THE SUB GEAR (IDLER)
3 sub gear (idler)
sub slider assy
1 Push the sub slider assy in the direction
of the arrow
A until it stops.
4 Position to adjust phases
for the sub gear (idler).
4 three sub gears (idler)
A
Note.
The side which has a pattern is the bottom.
No need of phase adjustment.
Note.
The side which has a pattern is the bottom.
2 The place that the sub slider assy
stops outside of this.
