Sony HCD-HPX7 - CD MECHANISM DECK SECTION-3 (CDM82 A)

89
HCD-HPX7
801 4-252-802-01 GEAR (STOCK SUN)
802 4-252-804-01 GEAR (STOCK PLANET)
803 4-253-802-01 BASE (B), STOCK
804 4-252-815-01 LEVER (LOCK L)
805 4-252-817-01 SPRING (STOCK LOCK L)
806 4-253-564-01 SCREW (1.7)
807 4-255-345-01 LEVER (SUB GEAR BACK L)
808 2-021-250-01 WASHER (5.5)
809 4-255-340-01 SPR-T (SUB GEAR BACK L)
810 4-252-819-01 GEAR (JOINT JUST FRONT), SUB
811 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
812 4-252-809-01 ARM (L)
813 4-252-806-01 GEAR (STOCK JOINT)
814 4-252-826-01 COVER (L)
815 2-641-430-31 SCREW (2.6), (+) K TAPPING
816 4-253-344-01 SCREW (2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

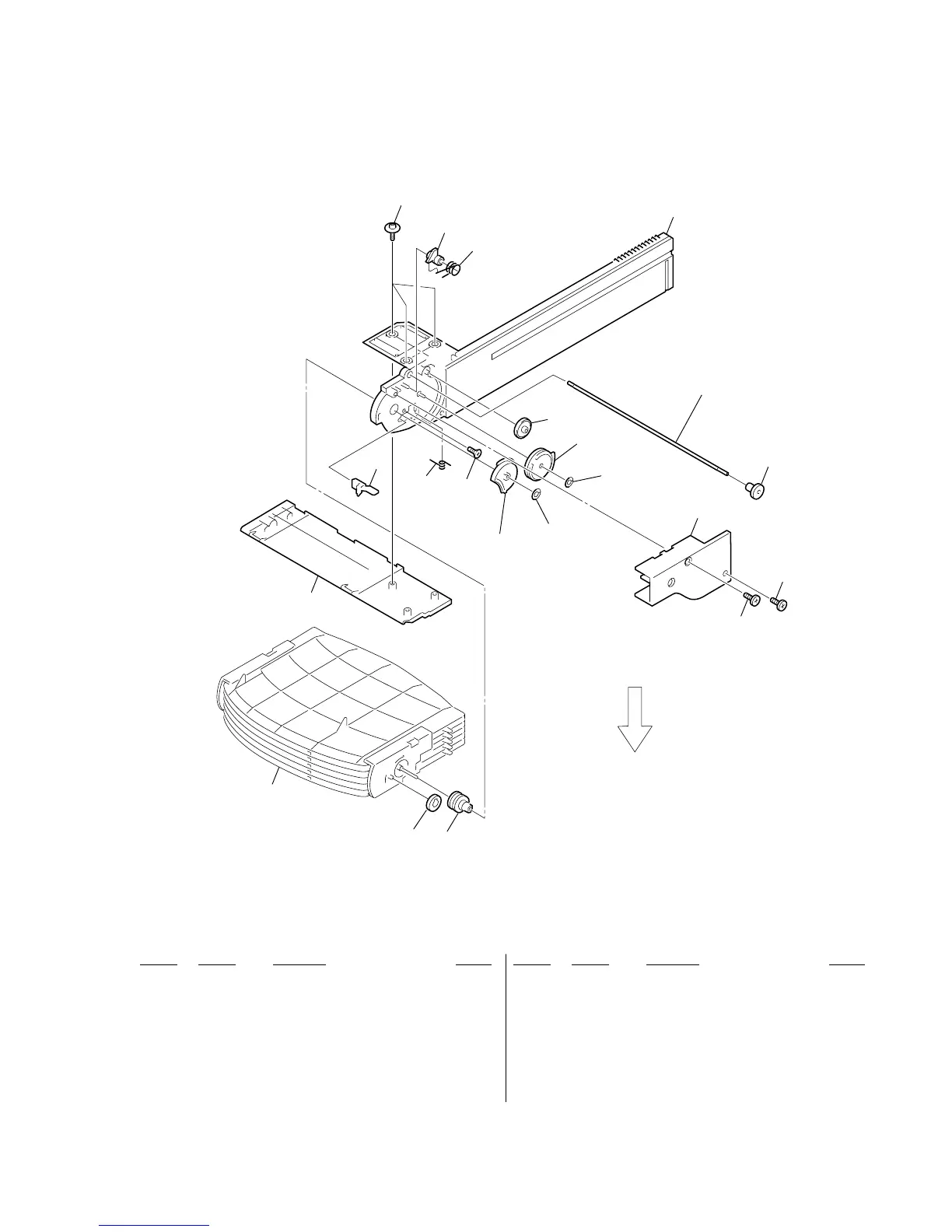

8-7. CD MECHANISM DECK SECTION-3
(CDM82A)
802
803
805
804
808
808
814
811
807
809
812
813
815
816
810
806
801
UPPER
SIDE
not
supplied
not
supplied
stocker assy
not
supplied
