Sony HCD-HPX7 - Base Unit Section; Lever (BU Lock)

35
HCD-HPX7

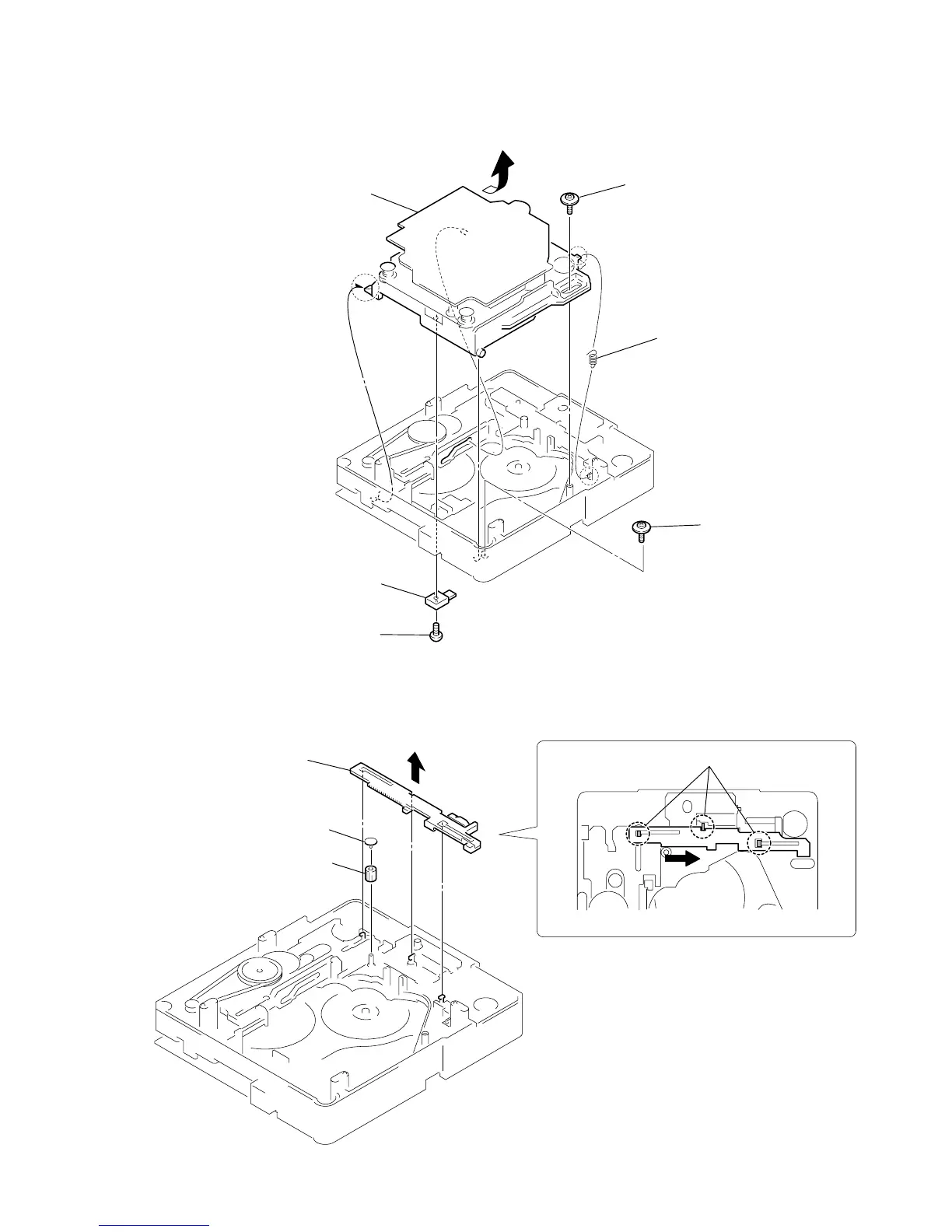

3-39. BASE UNIT SECTION
4 floating screw
(PTPWH M2.6)
5 floating screw
(PTPWH M2.6)
3 SPR-E 213 down holde
r
6 Remove the base unit
in the direction of the arrow.
1 screw
(BVTP2.6
× 8)
2 lever (CL UP2)
3-40. LEVER (BU LOCK)
4 three hooks
3
5
lever (BU lock)
1 gear (cap)
2 gear (BU lock)
