Sony HCD-HPX7 - Confirming the Assembling of the Stocker Section

44
HCD-HPX7

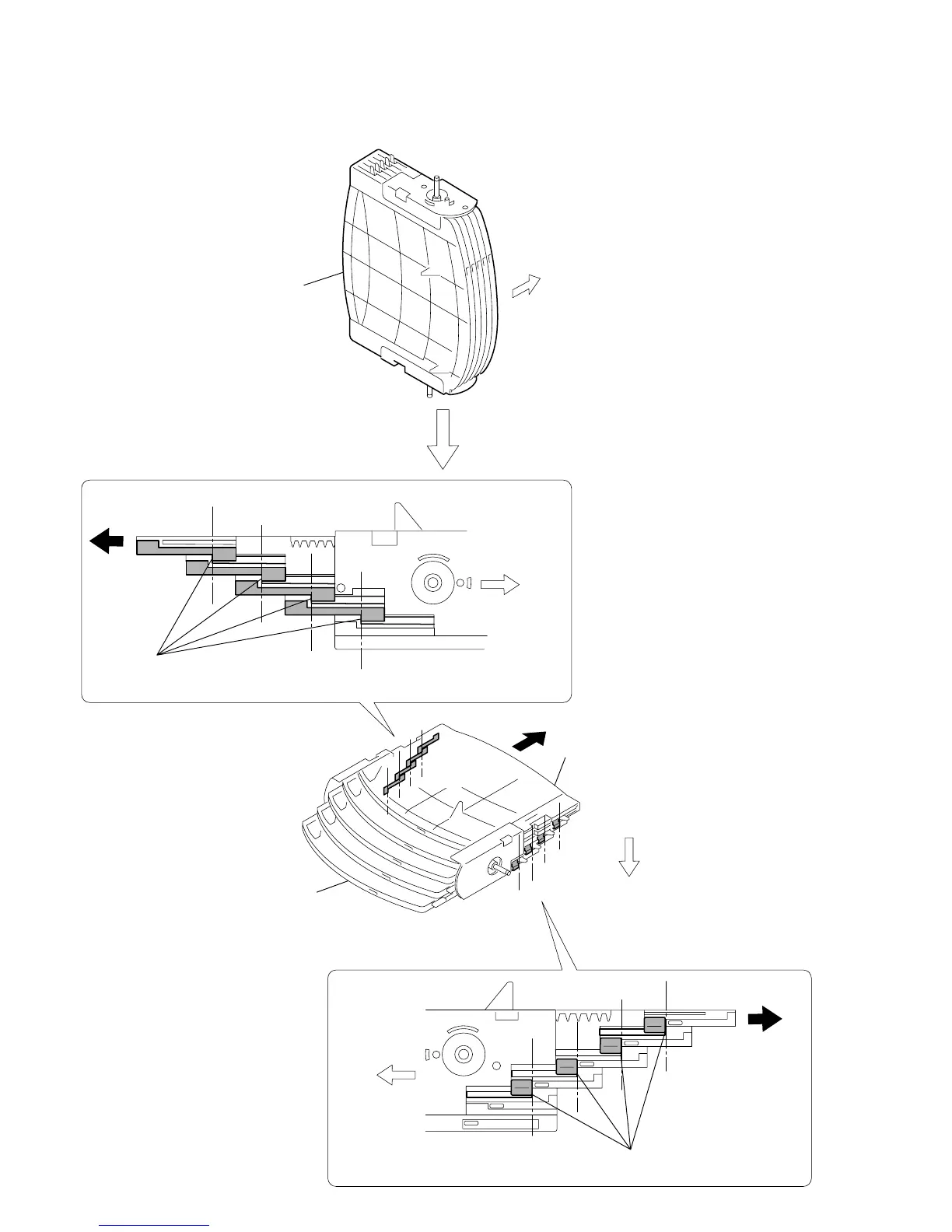

4-5. CONFIRMING THE ASSEMBLING OF THE STOCKER SECTION
stocker section
3 Confirm that each claw contacts uniformly at the
respective stop positions of the stocker assy (1) to the stocker assy (5).
2 Confirm that each claw contacts uniformly at the
respective stop positions of the stocker assy (1) to the stocker assy (5).
4 Confirm the stocker assys move smooth
by sliding the stocker assys (1) to (5)
STOCKER ASSY (R) SIDE
STOCKER ASSY (L) SIDE
UPPER
SIDE
FRONT
SIDE
FRONT
SIDE
UPPER
SIDE
1
Slide the stocker assy in the
direction of the arrow.
