3. Release the harness from the two cable clamps.
4. Disconnect the harness from the connector (CN304) on the VIF-82 board.
5. Disconnect the three coaxial cables from the connectors (J801, J1701, J1702) on the VIF-82 board.
Note
• When connecting the coaxial cables, connect connectors correctly.

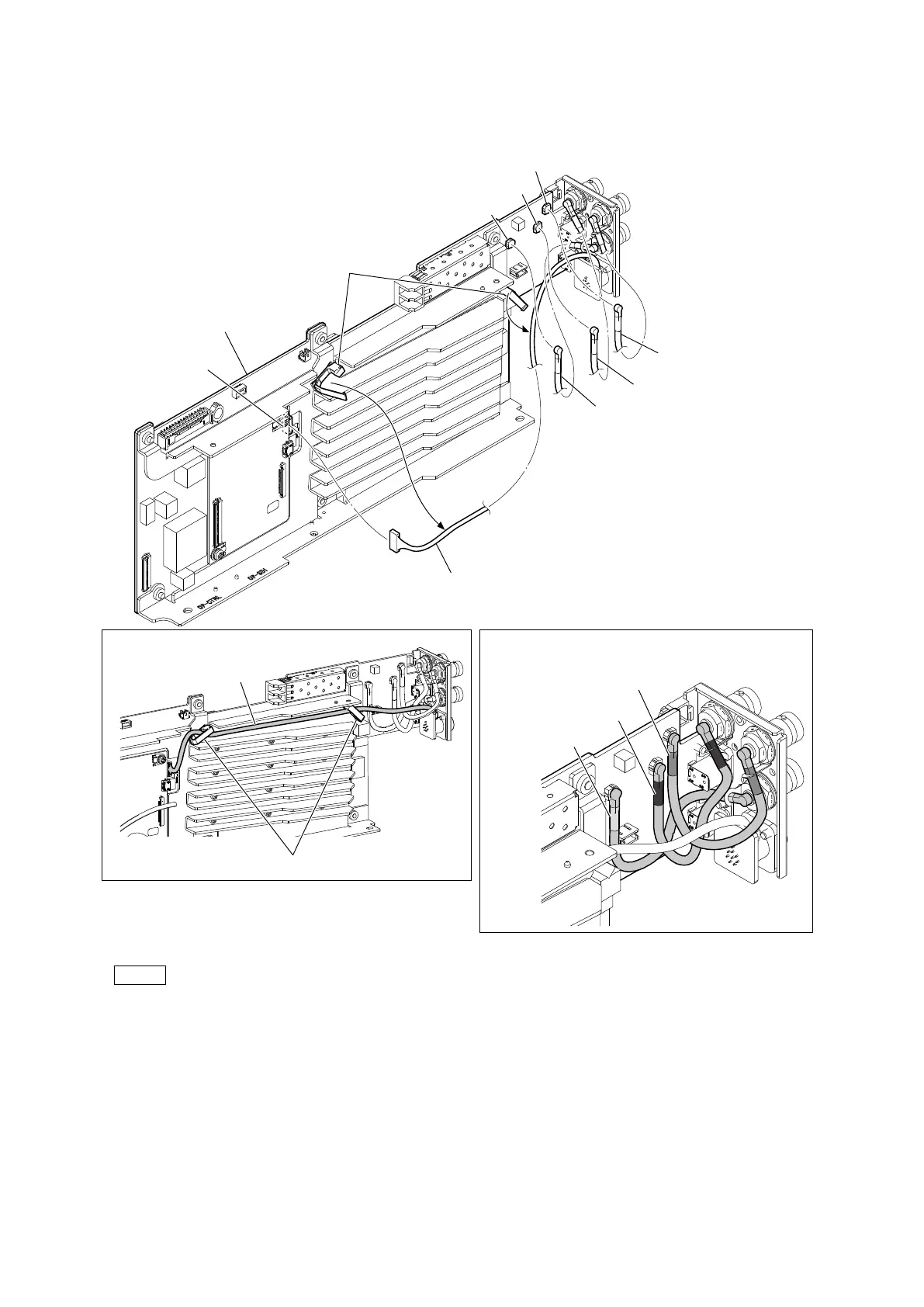

• At the time of the installation, arrange the harness and the coaxial cables as shown in the figure.
Arrangement of the coaxial cables
Arrangement of the harness
VIF-82 board
Cable clamps
Coaxial cable (yellow)
Harness
Harness
CN304
J801
Cable clamps
J1702
J1701
Coaxial cable (green)
Coaxial cable (orange)
Coaxial cable (yellow)
Coaxial cable (green)
Coaxial cable (orange)
