2-5-1. VIF-82 Board/AT-195 Board
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
2. Remove the NET-37 board assembly. (Refer to “2-3. NET-37 Board Assembly”.)
3. Remove the VIF-82 board assembly. (Refer to “2-5. VIF-82 Board Assembly”.)
Procedure
1. Release the two fine-wire coaxial cables from the three clamps.
2. Disconnect the two fine-wire coaxial cables from the connectors (CN305, CN306) on the VIF-82 board.
Note
At the time of the installation, arrange the two fine-wire coaxial cables as shown in the figure.

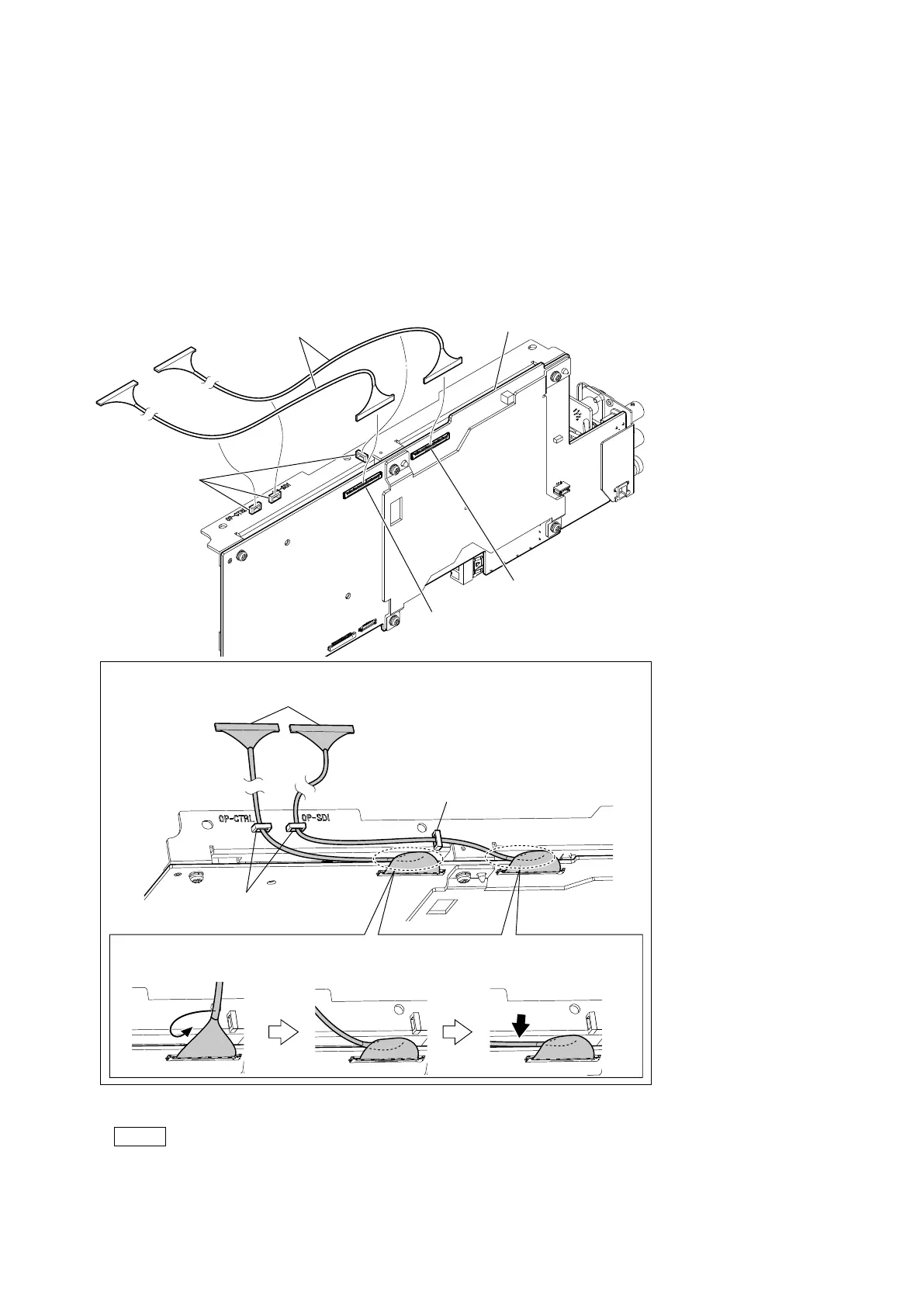

Arrangement of the fine-wire coaxial cables
VIF-82 board
Fine-wire coaxial cables
Clamps
CN305
CN306
Fine-wire coaxial cables
Half turn the fine-wire coaxial cable.
Push the fine-wire coaxial cable
into the space between the board
and the front panel.
Clamps
Clamp
To Next Page
