Equipment with
Digital Audio
(Optical)
Disconnect all power sources before making any connections.
You can use the TV's DIGITAL AUDIO (OPTICAL) OUT jack to connect a
digital audio device that is PCM/Dolby Digital compatible, such as an audio
amplifier.
Using an optical audio cable, connect the device's OPTICAL IN jack to the
TV's DIGITAL AUDIO (OPTICAL) OUT jack.

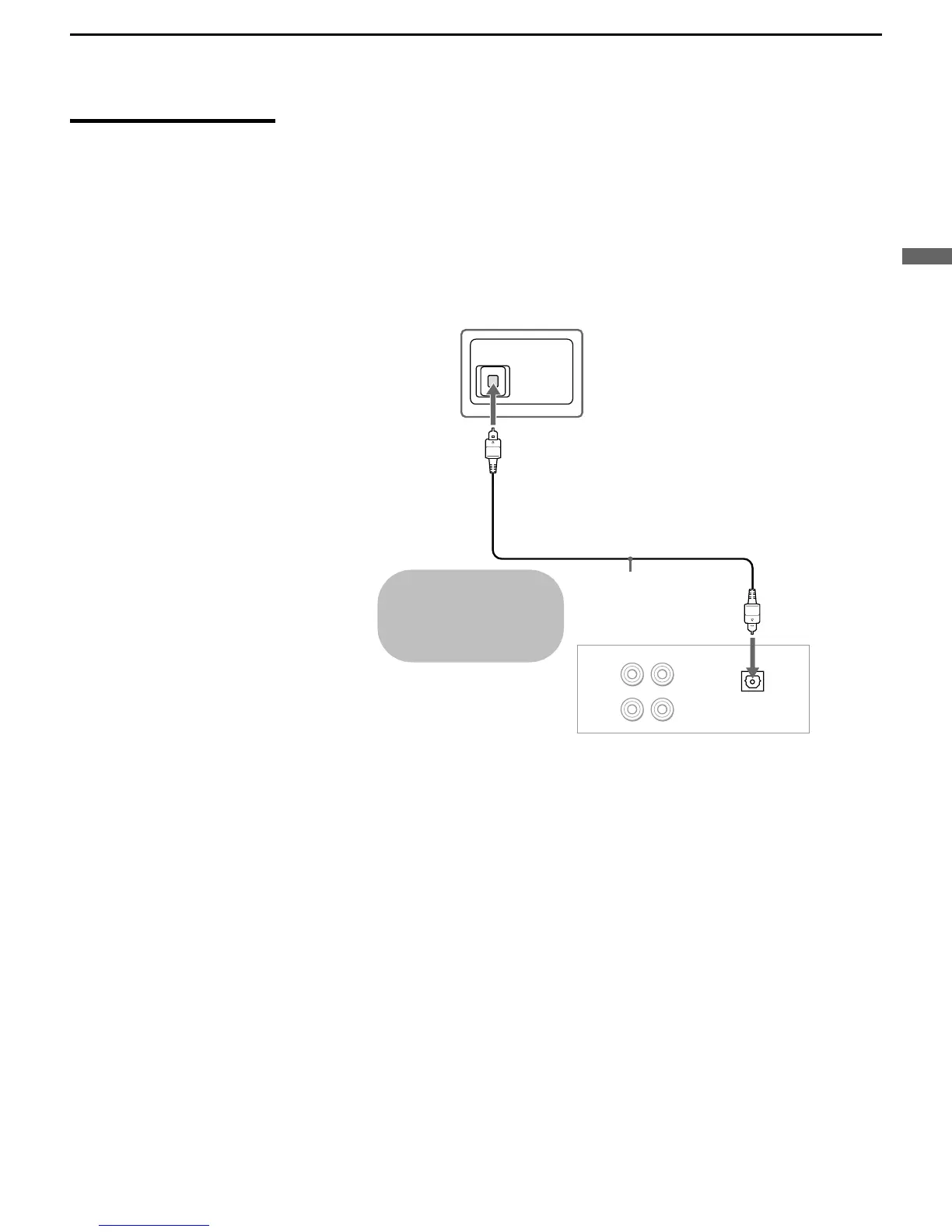

DIGITAL
AUDIO
(OPTICAL)
OUT
PCM/
DOLBY DIGITAL
OPTICAL
IN
LINE
OUT
L AUDIO R
LINE
IN
Optical audio cable
Rear of TV
Audio amplifier
The DIGITAL AUDIO
(OPTICAL) OUT jack is
available when the TV
receives a digital TV
channel.
