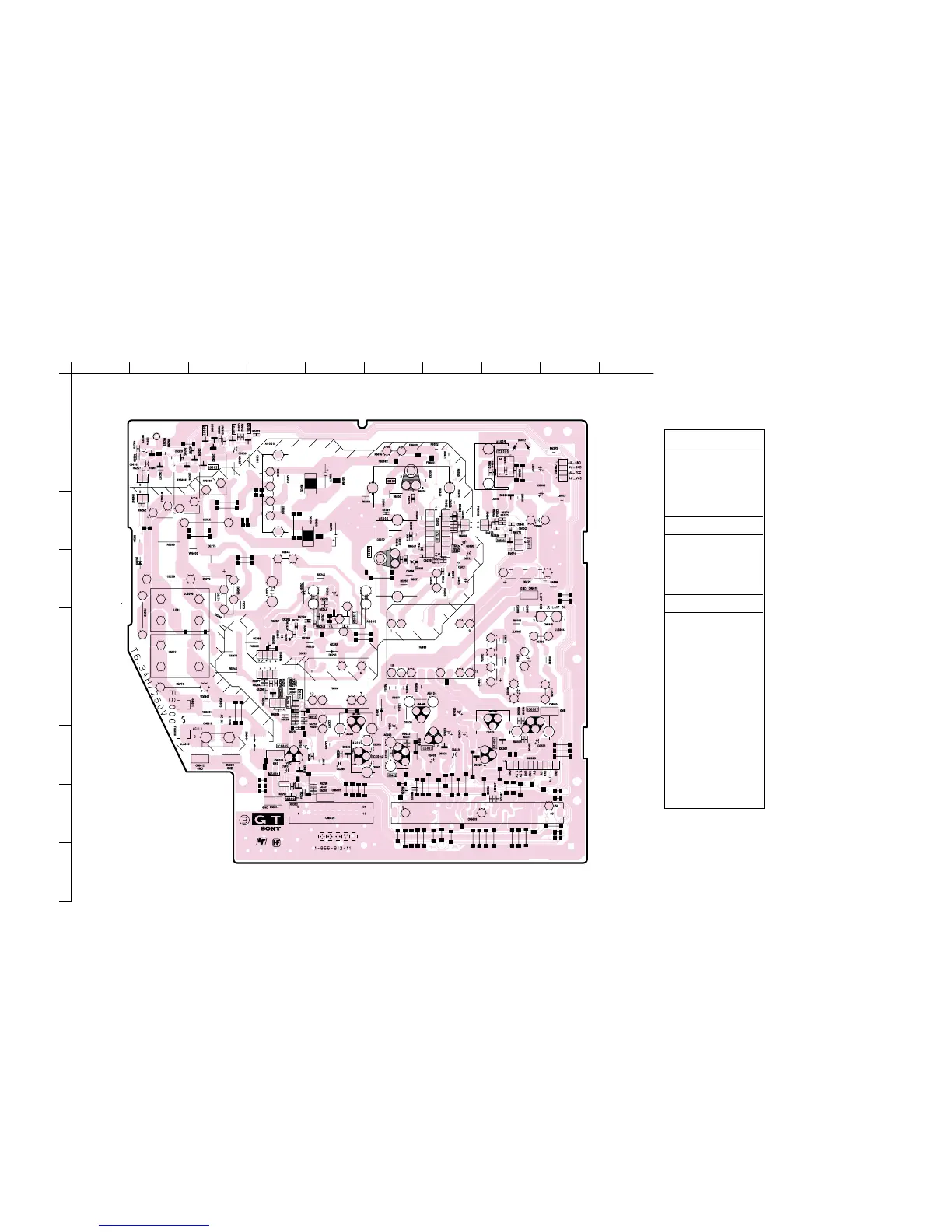

4-5. PRINTED WIRING BOARDS
(1) GT Board
• GT BOARD SEMICONDUCTOR LOCATION
IC
Side A Side B
*
IC6000 C-7
IC6002 G-8
IC6003 G-7
IC6004 G-6
IC6005 G-4
IC6007 F-8
IC6008 F-5
IC6009 B-8
IC6010 F-4
IC6011 C-8
TRANSISTOR
Side A Side B
*
Q6000 G-4
Q6001 B-6
Q6003 B-3
Q6004 B-4
Q6007 B-3
Q6008 D-6
Q6009 H-4
Q6010 F-4
Q6011 F-5
DIODE
Side A Side B
*
D6000 B-4
D6001 C-8
D6002 B-8
D6011 C-6
D6014 B-2
D6015 D-7
D6018 F-6
D6019 F-8
D6020 F-6
D6022 G-4
D6027 G-7
D6028 G-7
D6029 D-8
D6032 B-5
D6033 C-5
D6034 E-8
D6039 B-3
D6280 D-4
D6281 E-4
D6282 E-4
D6289 D-3
D6296 E-5
D6297 B-2
D6298 E-4
D6300 D-2
D6301 F-5
D6302 B-3
D6306 G-5
D6307 G-8
