Sony KDF-E50A10 - Pull out some Blocks (8); Pull out some Blocks (9); Pull out some Blocks (10); Remove Optics Unit

– 28 –
KDF-E42A10/E50A10
K RM-YD003 RM-YD003
Optics
unit
block
Optics unit block

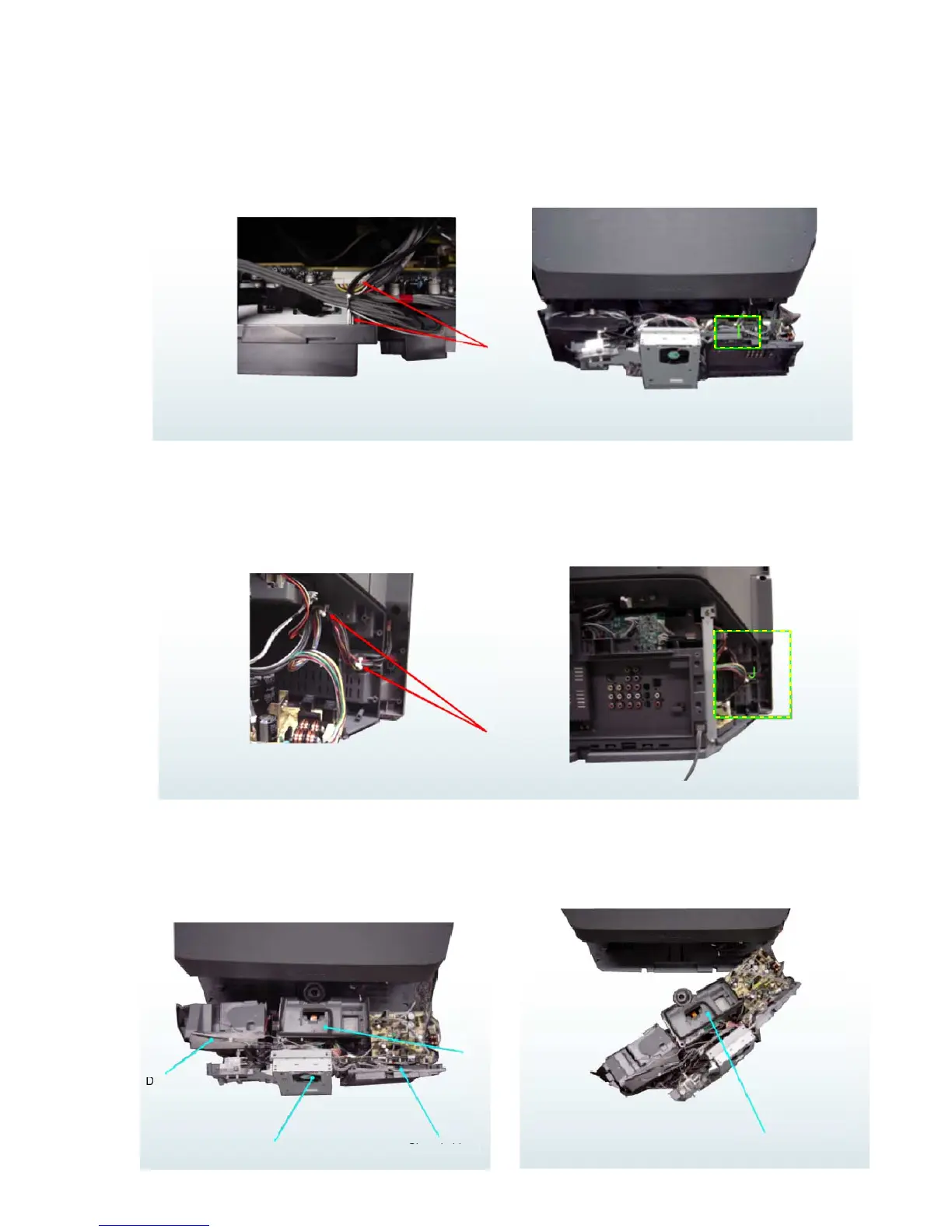

2-24-15. Pull Out Some Blocks (8)
2-24-16. Pull Out Some Blocks (9)
Remove 2 connecters to pull out some blocks as shown below.
Unlock "Purse Lock" to pull out some blocks as shown below.
Connector
< I >
I
Purse lock
< J >
J
2-24-17. Pull Out Some Blocks (10)
Pull out "B block", "Chassis block", "Duct block", and "Optics
Unit block".
u
nit bloc
k
t
ics
u
Opt
Chassis block
Ch i bl
B block
D
Duct
block
2-24-18. Remove Optics Unit
Remove all connecters to remove "Optics Unit block" and then it.
