Sony KDF-E50A10 - QT Board

– 55 –
KDF-E42A10/E50A10
K RM-YD003 RM-YD003

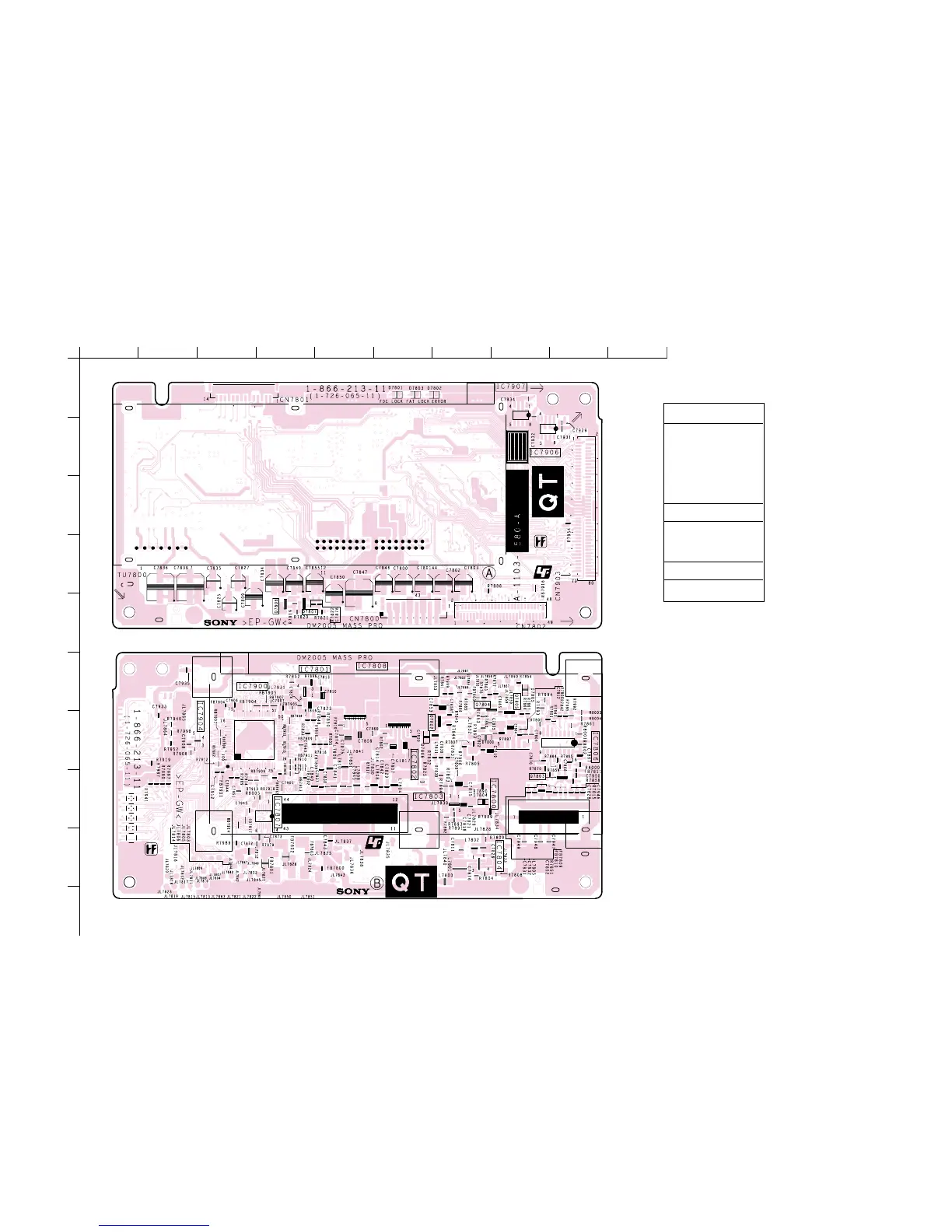

(4) QT Board
123456
7
8910
A
B
C
D
E
F
G
H
I
J
• QT BOARD SEMICONDUCTOR LOCATION
IC
Side A Side B
IC7800 H-8
IC7801 F-4
IC7802 F-6
IC7803 H-7
IC7804 I-8
IC7806 G-9
IC7807 H-4
IC7808 F-5
IC7900 G-3
IC7904 G-3
IC7906 B-8
IC7907 A-8
TRANSISTOR
Side A Side B
Q7802 G-7
Q7803 H-9
Q7804 E-7
Q7805 F-8
Q7806 E-4
Q7807 E-4
DIODE
Side A Side B
D7801 A-6
D7802 A-6
D7803 A-6
