Equipment with
HDMI Connection
Use this hookup if:
❑ Your equipment has a High-Definition Multimedia Interface (HDMI).
Disconnect all power sources before making any connections.

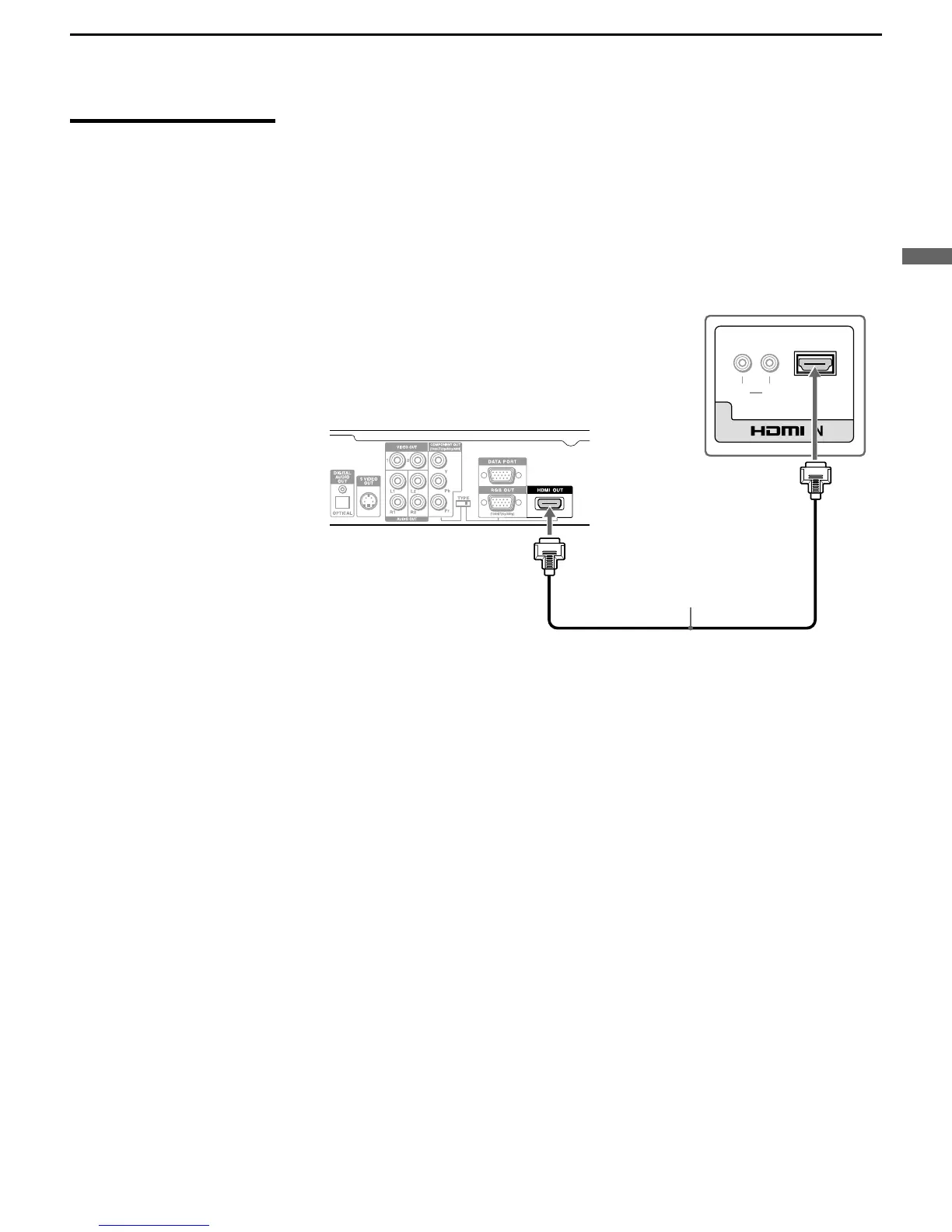

Using an HDMI cable, connect the equipment’s HDMI OUT jack to the
TV’s HDMI IN jack.
z The HDMI jack
provides both video
and audio signals, so it
is not necessary to
connect an audio cable.
AUDIO
RL
6
Rear of TV
HDMI cable
Equipment with HDMI output
