Sony KDF-E50A10 - DVD Player with S VIDEO and Audio Connectors

Connecting the TV
39
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-11(1)
D:\WINNT\Profiles\fujii\Desktop\Troy book source\2597544111c20_TROY
Source data\01US04INS.fm
masterpage:3 columns Right

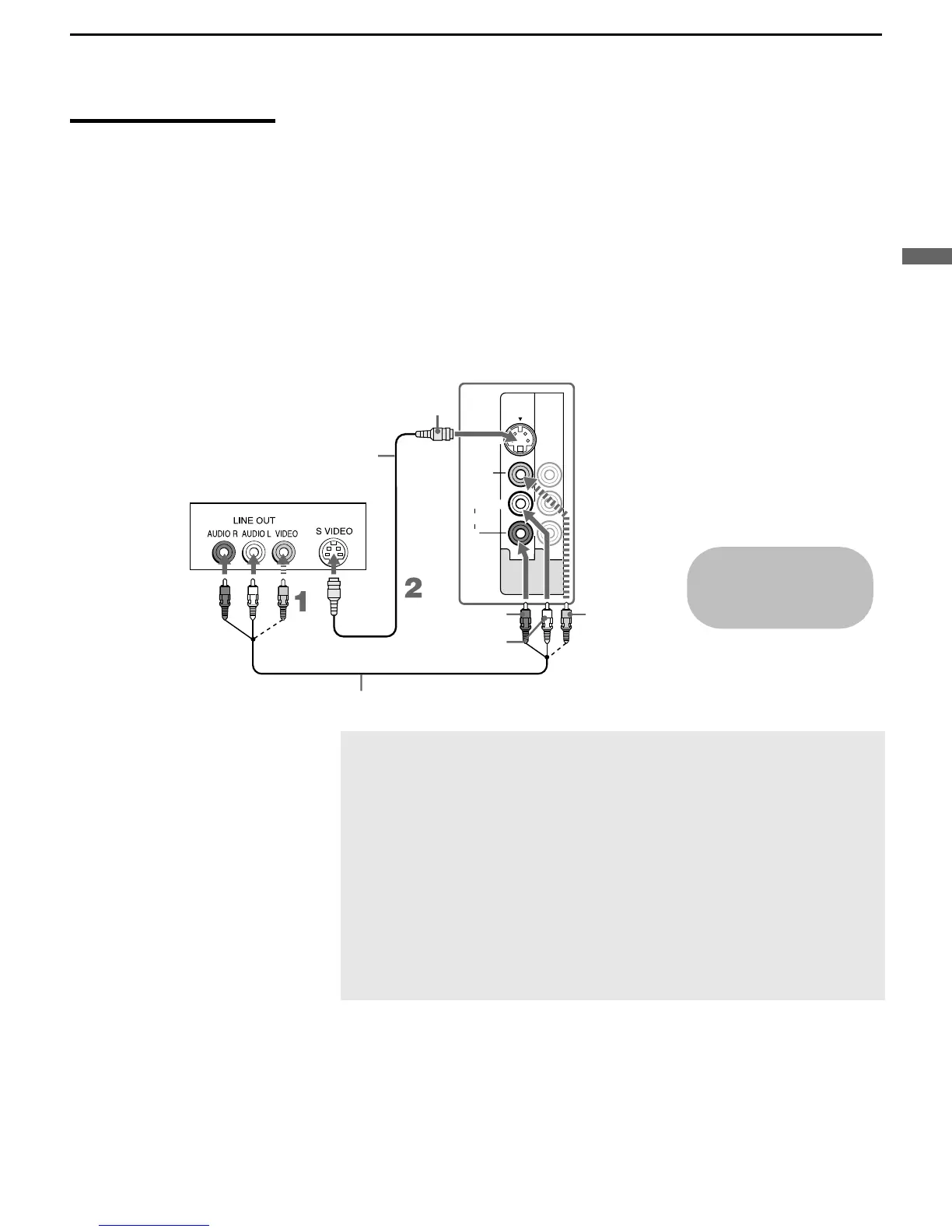

DVD Player with
S VIDEO and Audio
Connectors
Use this hookup if:
❑ Your DVD player does not have component (YPBPR) jacks.
Disconnect all power sources before making any connections.
1 Use an A/V cable to connect the DVD player’s AUDIO OUT jacks to
the TV’s AUDIO IN jacks.
2 Use an S VIDEO cable to connect the DVD player’s S VIDEO jack to
the TV’s S VIDEO jack.
L
R
(MONO)
AUDIO
VIDEO IN
VIDEO
S VIDEO
13
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
DVD player
Rear of TV
A/V cable
S VIDEO
cable
S VIDEO
AUDIO-R
AUDIO-L
VIDEO
✍ If your DVD player is not equipped with S VIDEO, use a VIDEO
cable (yellow) instead of the S VIDEO cable.
✍ To watch the DVD player, press TV/VIDEO repeatedly to select
the DVD input (VIDEO 1 in the illustration). If you have a non-
Sony DVD player and want to set up the TV remote control to
operate it, you must program the remote control. See
“Programming the Remote Control” on page 47.
✍ To control DVD functions with the TV remote control, see
“Operating a DVD Player or DVD Changer” on page 49.
✍ To easily identify equipment connected to the TV, see the
instructions for setting up Label Video Inputs on page 79.
