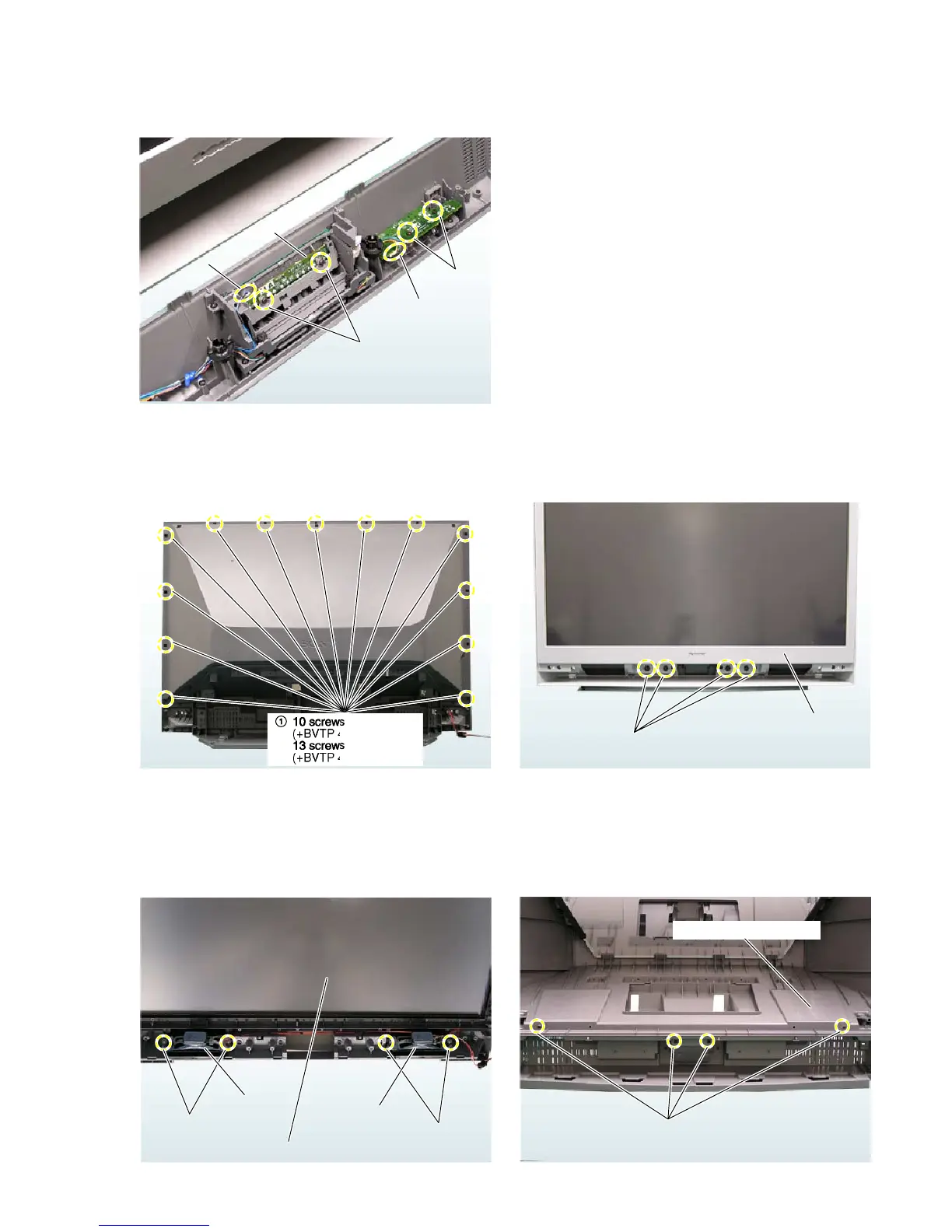

Sony KDF-E50A10 - HA and HB Boards; Screen Frame Block Assembly; Rear Cover (with Mirror)

– 24 –
KDF-E42A10/E50A10
K RM-YD003 RM-YD003
2-22. SPEAKERS 2-23. REAR COVER (WITH MIRROR)
2 4 screws
(+BVTP 4x16)
3 Screen frame
block assembly
1 2 screws
(+PWTP2 4x16)
3 2 screws
(+PWTP2 4x16)
2 Speaker
4 Speaker
Screen frame block assembly
2-20. HA AND HB BOARDS
2 2 screws
(+BVTP 4x12)
4 Connector
5 2 Screws
1 Connector
3 HA board
2-21. SCREEN FRAME BLOCK ASSEMBLY
4
x13
)
(
E42A10
)
4
x13
)
(
E50A10
)
1 4 screws
(+BVTP 4x16)
2 Rear cover (with mirror)
