Sony KDF-E50A10 - K Board; Terminal Bracket; HPC Board

– 19 –
KDF-E42A10/E50A10
K RM-YD003 RM-YD003

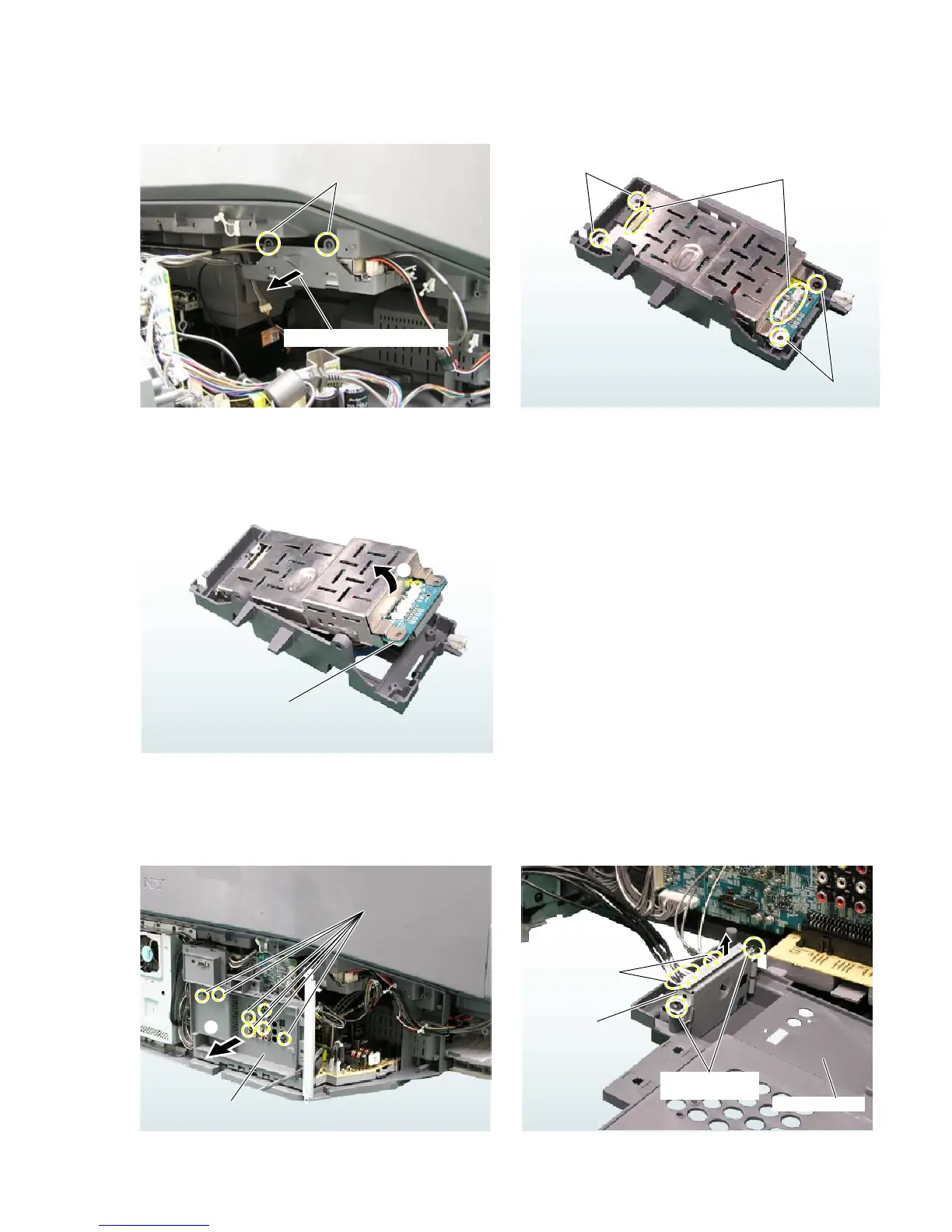

2-5. TERMINAL BRACKET
1 2 screws (+BVTP 4x16)
2 Pull out K board assembly
5 2 screws (+BVTP 3x12)
4 2 screws (+BVTP 3x12)
3 3 connectors
K board
6
1 7 screws (+BVTP 3x12)
Te r m inal brdcket
2
2-4. K BOARD
3
2 2 screws
(+PVTP 4x16)
Te r minal bracket
1 2 connectors
HPC baord
2-6. HPC BOARD
