– 60 –
KDF-E42A10/E50A10
K RM-YD003 RM-YD003
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
• Items with no part number and no
description are not stocked because they
are seldom required for routine service
• The construction parts of an assembled part
are indicated with a collation number in the
remark column.
NOTE:
SECTION 5
EXPLODED VIEWS
• Items marked "
*
" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
Les composants identifies par une trame et une
marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifie.
The components identified by shading and
mark
!
are critical for safety.
Replace only with part number specified.

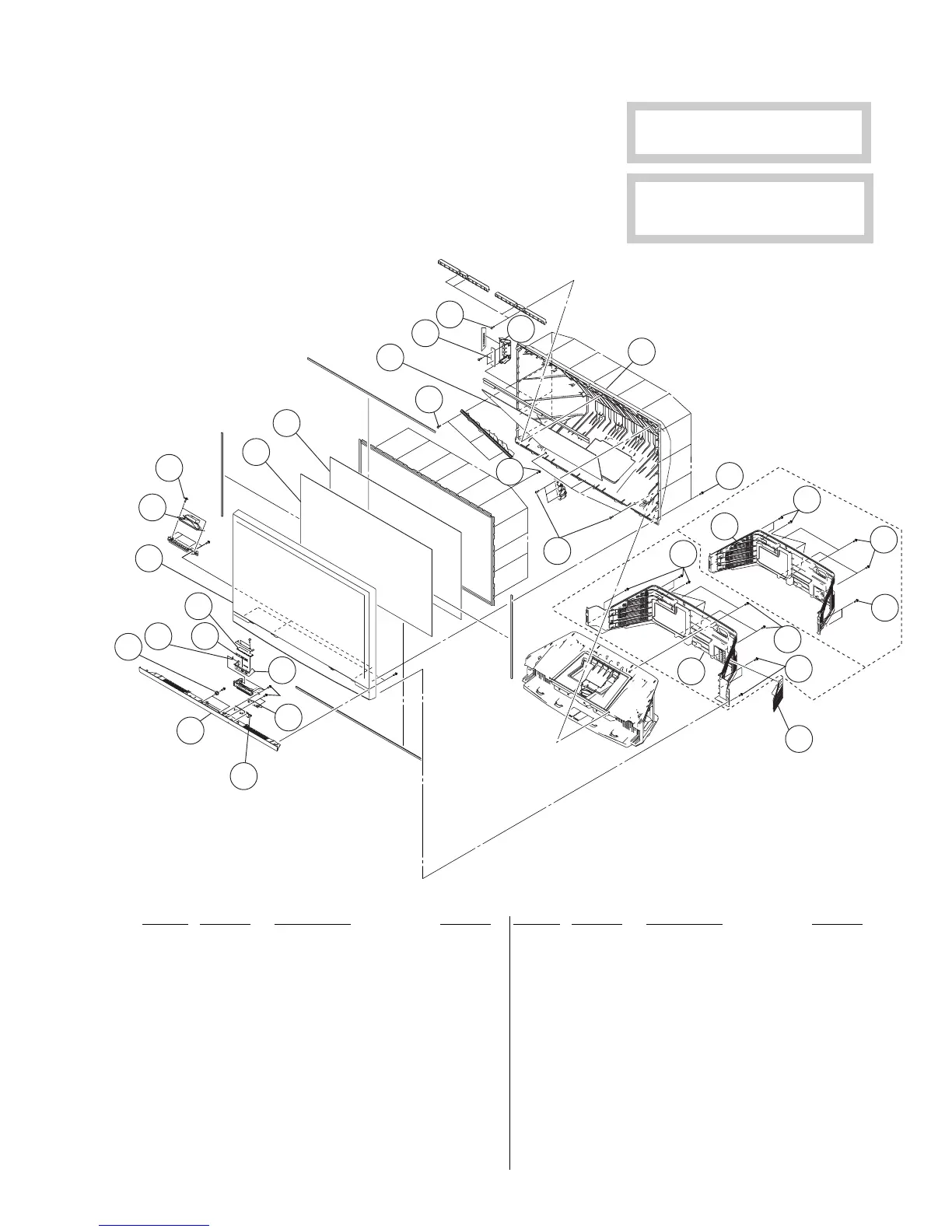

5-1. SCREEN MIRROR BLOCK, COVERS
17
18
17
9
17
17
10
#1
E42A10
E50A10
#1
#1
#1
#1
11
17
17
7
5
4
8
6
3
20
16
21
15
2
19
1
17
17
17
17
17
13
12
12
1 2-590-903-01 GRILL, SPEAKER (42) (E42A10)
1 2-590-908-01 GRILL, SPEAKER (50) (E50A10)
2 2-590-913-01 BUTTON, POWER
3 2-590-914-01 BUTTON, MULTI
4 1-826-219-11 LOUD SPEAKER (5X15cm)
5 2-580-654-01 SCREW, +PWTP2 4X16
6 A-1127-073-A SCREEN FRAME ASSY (E50A10)
6 A-1127-076-A SCREEN FRAME ASSY (E42A10)
7 2-590-449-11 PLATE(42L),DIFFUSION (E42A10)
7 2-590-451-11 PLATE(50L),DIFFUSION (E50A10)
8 2-590-450-11 PLATE(42F),DIFFUSION (E42A10)
8 2-590-452-11 PLATE(50F),DIFFUSION (E50A10)
9 A-1127-074-A MIRROR ASSY (E50A10)
9 A-1127-077-A MIRROR ASSY (E42A10)
10 2-590-909-01 BRACKET, HC (50) (E50A10)
11 A-1127-075-A MIRROR COVER ASSY (E50A10)
11 A-1127-078-A MIRROR COVER ASSY (E42A10)
12 2-591-155-01 COVER,REAR (E50A10)
12 2-591-155-11 COVER,REAR (E42A10)
13 2-591-156-01 DOOR,LAMP
14 4-097-548-01 CUSHION, FOOT
15 2-590-915-01 TRAY, CONTROL
16 2-593-048-01 DAMPER
17 2-580-640-01 SCREW, +BVTP2 4X16
18 A-1103-764-A HC BOARD, COMPLETE
19 A-1103-763-A HB BOARD, COMPLETE
20 A-1103-762-A HA BOARD, COMPLETE
21 2-593-049-01 LATCH ASSY
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
