Sony KDF-E50A10 - Lamp Duct Assembly, Optics Unit Block

– 62 –
KDF-E42A10/E50A10
K RM-YD003 RM-YD003
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––

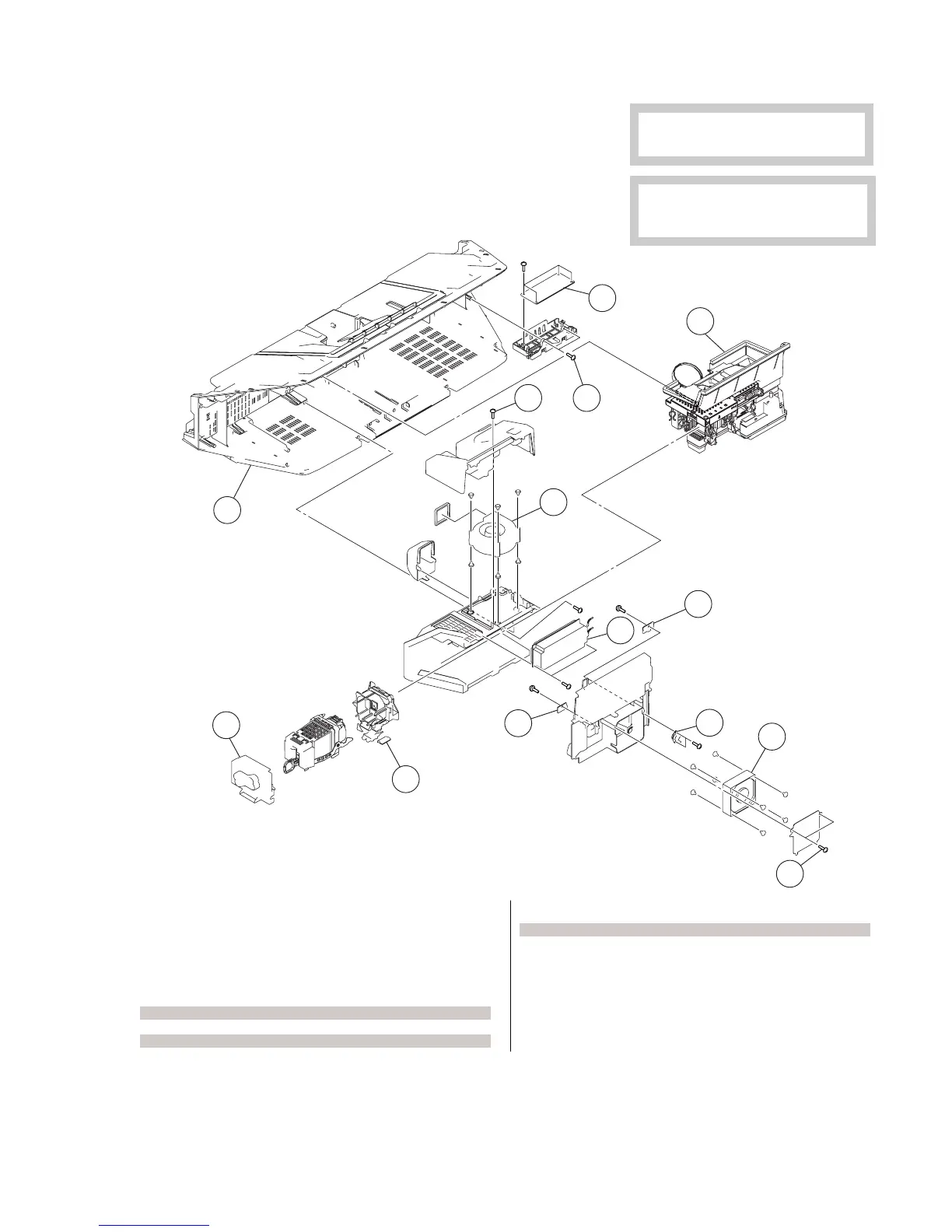

5-3. LAMP DUCT ASSEMBLY, OPTICS UNIT BLOCK
101
109
110
111
112
102
103
108108
107
106
105
104
108
#1
#1
#1
#1
Les composants identifies par une trame et une
marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifie.
The components identified by shading and
mark
!
are critical for safety.
Replace only with part number specified.
101 X-2055-656-1 CABINET ASSY, BOTTOM(42) (E42A10)
101 X-2055-653-1 CABINET ASSY, BOTTOM(50) (E50A10)
102 A-1115-002-A K BOARD, COMPLETE
103 A-1123-069-A OPTICS UNIT BLOCK ASSY (E50A10)
103 A-1123-071-A OPTICS UNIT BLOCK ASSY (E42A10)
104 0 1-787-373-11 FAN,DC
105 1-576-912-11 THERMOSTAT
106 0 1-468-936-11 POWER SUPPLY BLOCK
107 0 1-787-231-11 D.C. FAN (SIROCCO)
108 2-580-640-01 SCREW, +BVTP2 4X16
109 X-2108-370-1 DOOR ASSY, LAMP
110 A-1103-769-A T2 BOARD, COMPLETE
111 A-1103-768-A T1 BOARD, COMPLETE
112 A-1103-767-A S2 BOARD, COMPLETE
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
