Sony KDF-E50A10 - B Block, Chassis Assembly

– 61 –
KDF-E42A10/E50A10
K RM-YD003 RM-YD003
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––

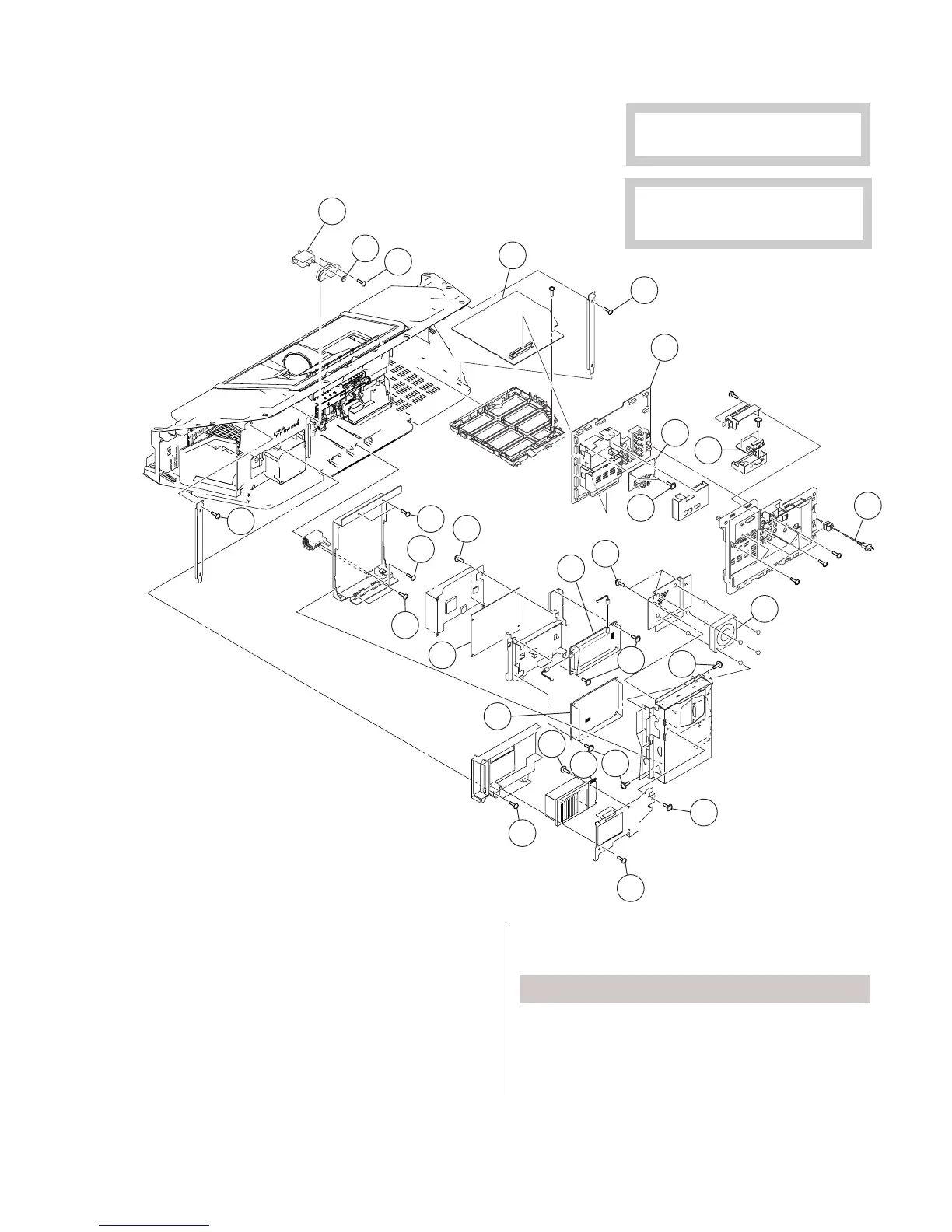

5-2. B BLOCK, CHASSIS ASSEMBLY
56
55
64
64
58
61
62
59
65
65
65
53
65
65
65
64
51
52
60
64
64
63
65
64
54
57
#1
#1
#1
#1
#1
64
65
Les composants identifies par une trame et une
marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifie.
The components identified by shading and
mark
!
are critical for safety.
Replace only with part number specified.
51 * A-1073-391-A QU BOARD, COMPLETE
52 A-1129-347-A QM BOARD, COMPLETE
53 A-1103-580-A QT BOARD, COMPLETE
54 A-1129-348-A B BOARD, COMPLETE
55 3-682-691-00 NUT, WASHER HEXAGON
56 8-597-504-00 ANTENNA SWITCHE RFD-SA811
57 A-1113-732-A GT BOARD, COMPLETE
58 A-1129-346-A AGU BOARD, COMPLETE
59 A-1129-345-A P BOARD, COMPLETE
60 A-1138-521-A HPC BOARD, COMPLETE
61 0 1-791-192-21 CORD, NOISE FILTER WITH POWER
62 0 1-787-333-11 D.C. FAN
63 3-701-810-72 SCREW, TERMINAL
64 2-580-640-01 SCREW, +BVTP2 4X16
65 2-580-593-01 SCREW, +PSW M3X8
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
