– 16 –
KDF-E42A10/E50A10
K RM-YD003 RM-YD003
SECTION 2
DISASSEMBLY

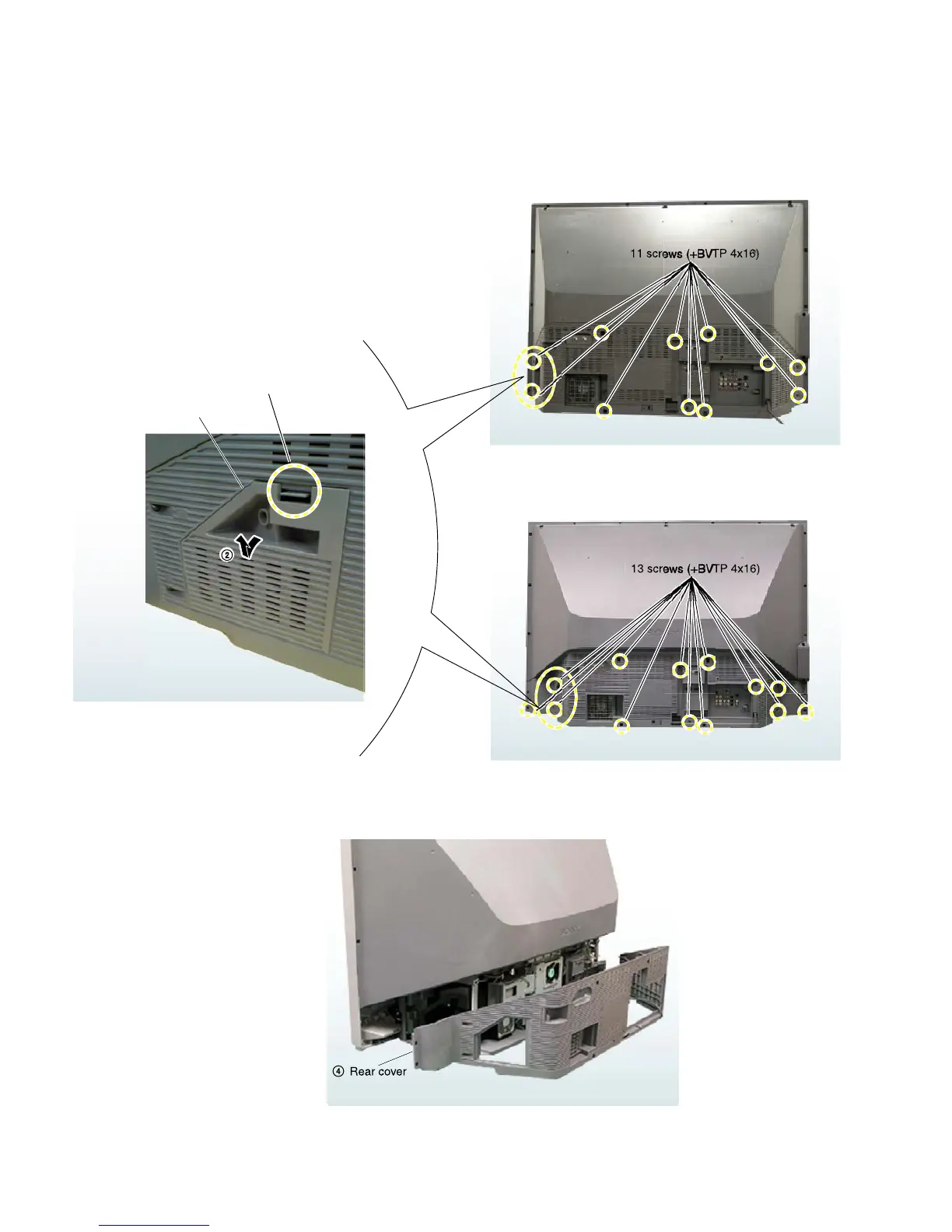

2-1. REAR COVER
1 Pull down the claw
Lamp door
E42A10
E50A10
