Sony MAP-S1 Service Manual

MAP-S1
11

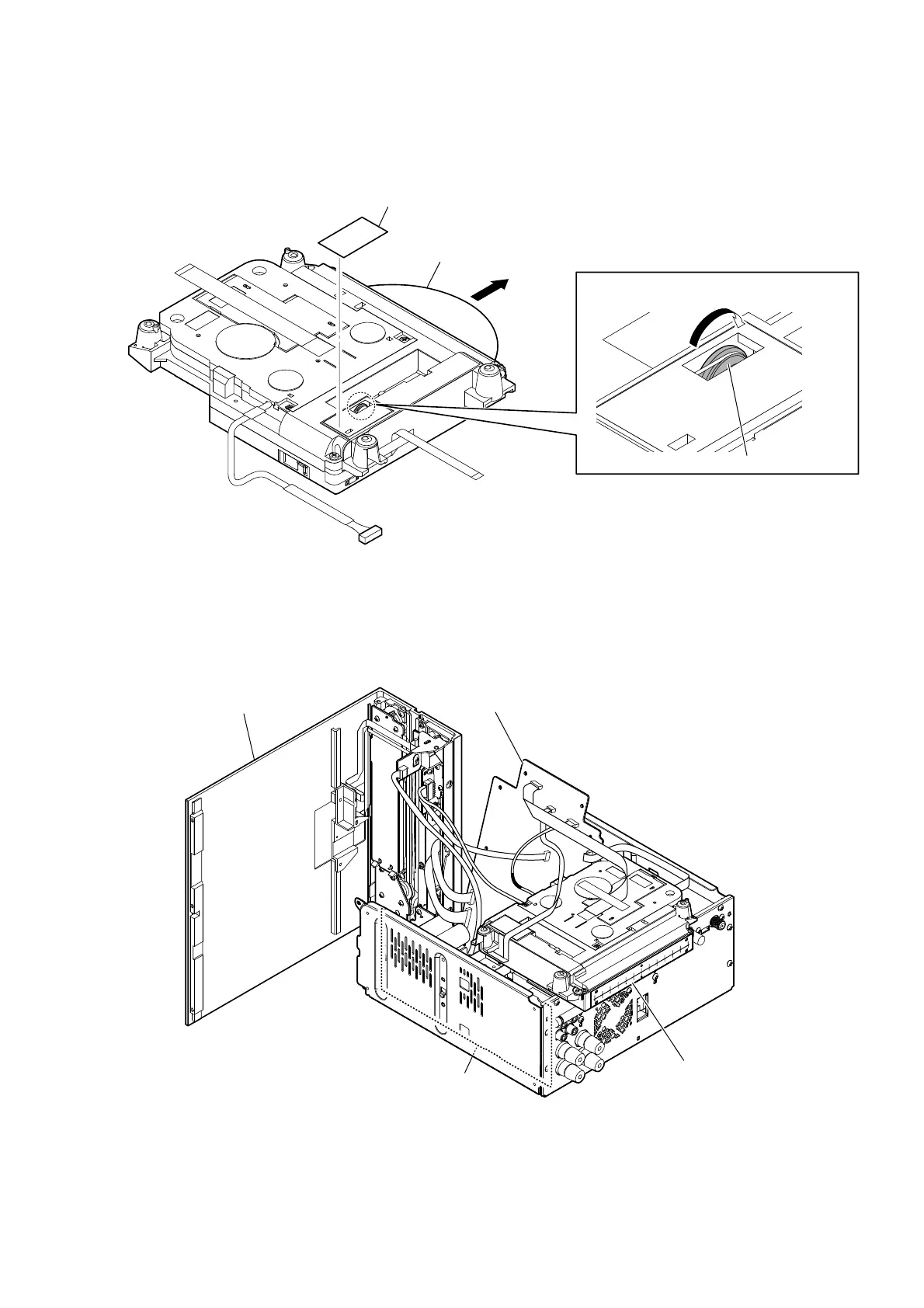

HOW TO EJECT THE DISC WHEN POWER SWICTH TURN OFF
• Refer to “SECTION 2. DISASSEMBLY”, remove the CD mechanism deck block from the unit
SERVICE POSITION
pulley
– CD mechanism deck block bottom view –
2 Rotate the pulley in the direction of the arrow.
3 Take out the disc.
1 tape
AMP board
MAIN board
p
anel (front) block
CD mechanism deck block
– Rear view –

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
