Sony MAP-S1 Service Manual

MAP-S1
29

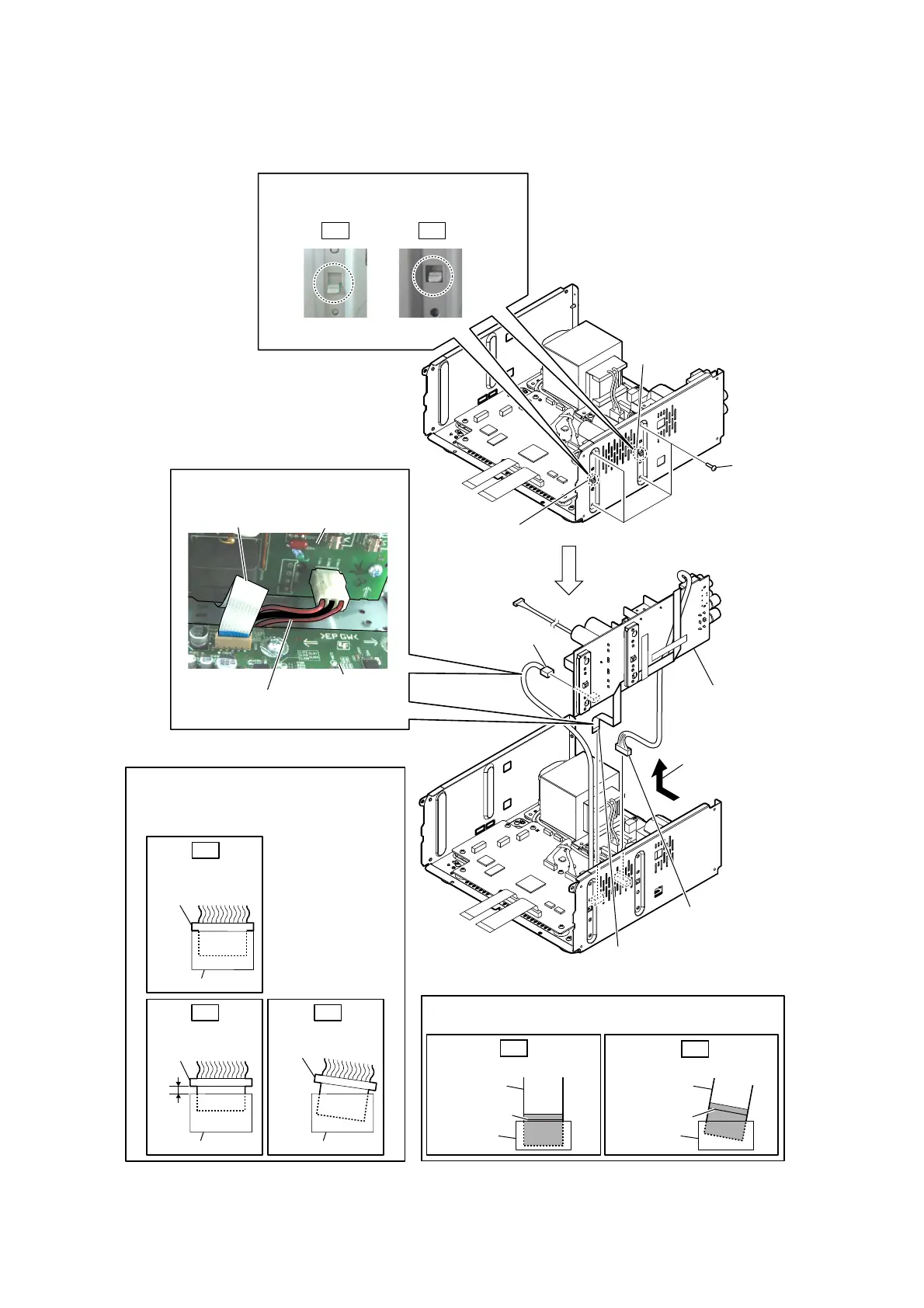

2-24. AMP BOARD BLOCK
1 four screws
(BV3)
WireVeWWiQJ
3 Remove the AMP board block
in the direction of the arrow.
7 AMP board block
AMP board
MAIN board
4 connector
(CN009)
6 connector
(CN2003)
5 flexible flat cable (9P)
(CN010)
flexible flat cable
(9P)
Wire passes along the bottom of
flexible flat cable (9P).
Insert only part way.
Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK
NG NG
Note 2:
Insert the connector straight into the interior.
There is a possibility that using this device
without the connector correctly installed will
damage it.
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note 3:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
2 claw
2 claw
OK NG
Note 1:
When installing the AMP board block,
check that two claws are attached firmly.

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
