Sony MAP-S1 Service Manual

88
MAP-S1
SECTION 6
EXPLODED VIEWS
1 4-485-564-01 CUSHION FOOT
2 4-485-549-01 FOOT
3 4-485-530-01 PANEL (SIDE L)
4 4-533-295-01 SCREW FLAT HEAD
5 4-485-531-01 PANEL (SIDE R)
6 4-477-465-31 HI-RES LABEL
#1 7-685-871-01 SCREW +BVTT 3X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model
HK : Hong Kong model
MY : Malaysia model

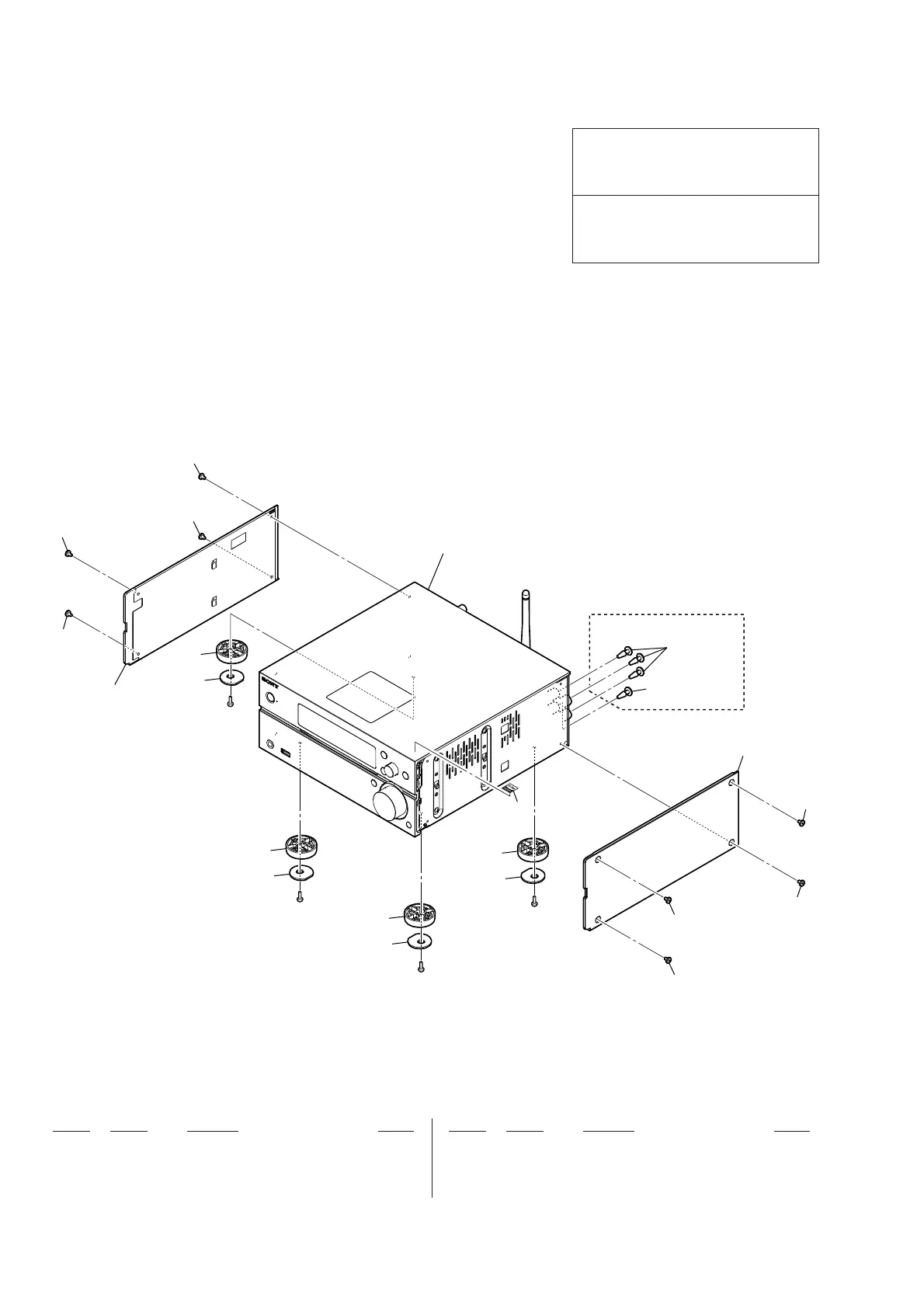

6-1. PANEL (SIDE) SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
#1
1
1
#1
#1
#1
1
1
2
2
3
4
4
4
4
4
4
4
4
5
6
2
2
not supplied
not supplied
(AEP, UK, HK, MY)
