Sony MAP-S1 Service Manual

91
MAP-S1

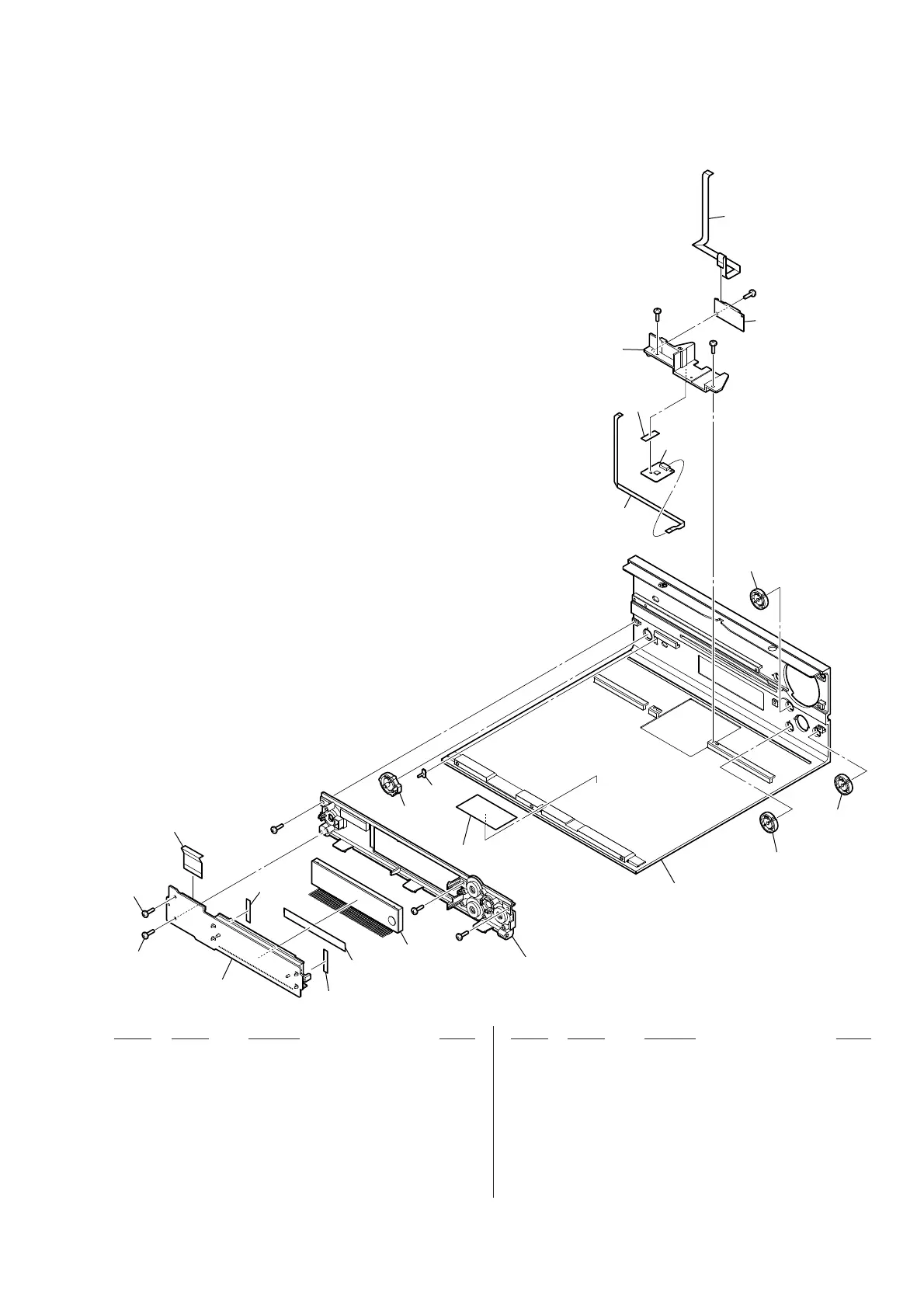

6-4. PANEL FRONT SECTION
• Rear bottom view
151 3-087-053-01 +BVTP2.6 (3CR)
152 X-2589-545-1 BUTTON (POWER /S) ASSY (for SERVICE) (
?/1
)
153 4-485-543-01 INDICATOR (POWER)
154 X-2589-553-1 PANEL (FRONT J1/S) ASSY (for SERVICE)
155 X-2589-547-1 BUTTON (MENU /S) ASSY (for SERVICE) (MENU)
156 X-2589-546-1 BUTTON (PLAY /S) ASSY (for SERVICE) (
BX
)
157 X-2589-548-1 BUTTON (BACK /S) ASSY (BACK)
158 4-462-118-01 SHEET (NFC), ADHENSIVE
159 4-154-640-01 SHEET (FL HOLDER), ADHESIVE
BT1 1-490-558-81 BLUETOOTH MODULE
FFC5 9-885-194-28 FY14 FFC (1.0 mm_19P_FL)
FFC6 9-885-194-17 FY14 FFC (0.5 mm_8P_NFC)
FFC7 9-885-194-20 FY14 FFC (0.5 mm_14P_BT)
ND4401 1-483-521-11 VACUUM_FLUORESCENT_DISPLAY
NFC1 8-989-470-05 RC-S801 (NFC module)
#2 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
(FRONT board)
not supplied
ND4401
not supplied
not supplied
not supplied
FFC5
#2
#2
#2
NFC1
FFC6
FFC7
BT1
151
152
153
154
155
156
157
158
151
159
#2
#2
#2

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
