Sony MAP-S1 Service Manual

MAP-S1
21

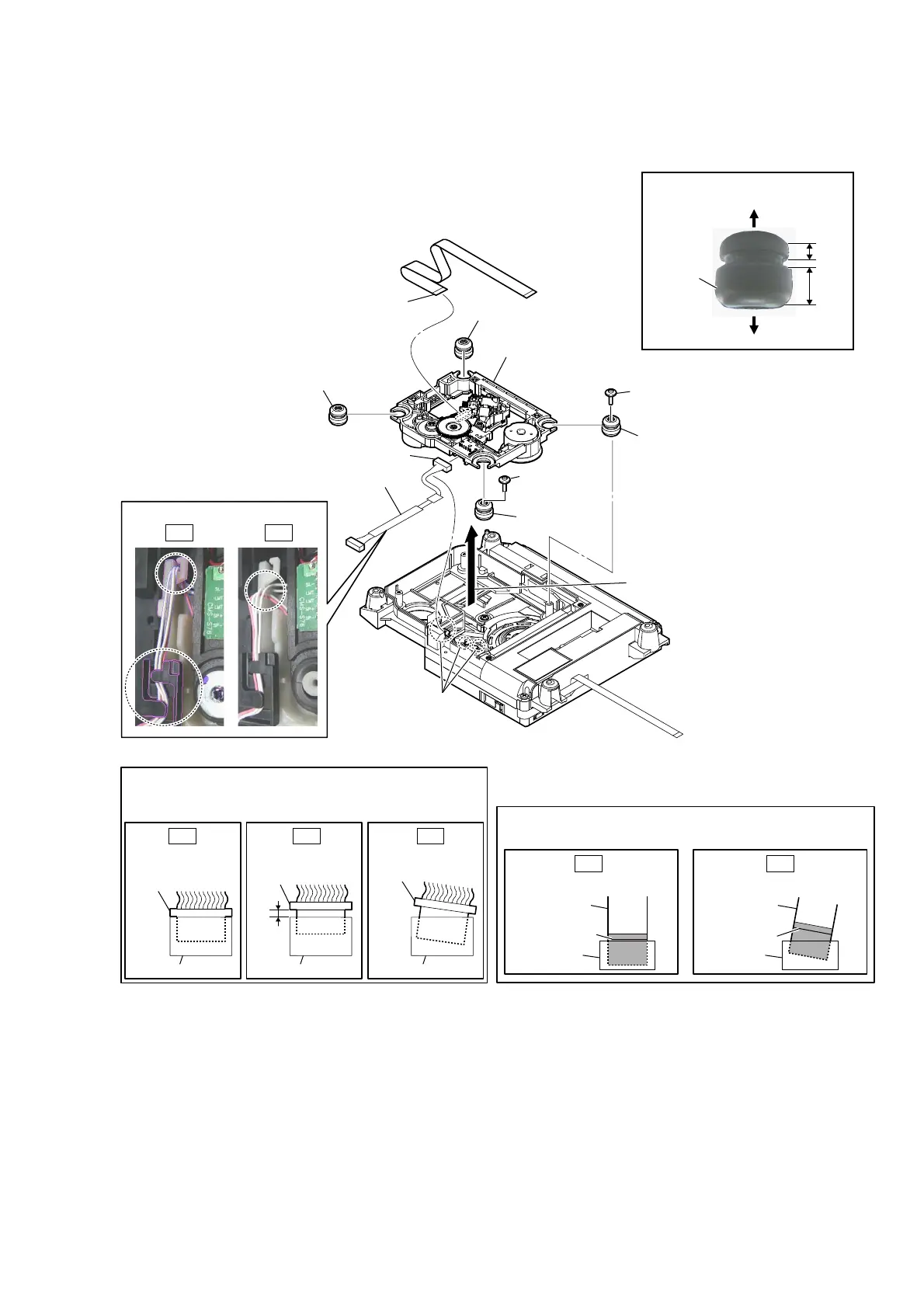

2-14. OPTICAL PICK-UP BLOCK (CMS-S76RFS7G) (OP1)
2 float screw
(S)
2 float
screw (S)
1 Remove the wire from three claws.
three claws
WireVeWWiQJ
4 flexible flat cable (24P)
(FFC9)
5 connector
6 insulator
6 insulator
insulator
6 insulator
7 optical pick-up block
(CMS-S76RFS7G)
(OP1)
top side
bottom side
,QVXODWRrVeWWiQJ
6 insulator
short
long
3
Remove the
optical pick-up
block
in the direction of the arrow.
–&'PeFKDQiVPGeFNEORFNERWWRPYieZ–
OK NG
Note 1:
When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat
cable
flexible flat
cable
connectorconnector
OK NG
Note 2:
When installing the flexible flat cable,
ensure that
the colored line is not slanted after insertion.

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
