Sony MAP-S1 Service Manual

MAP-S1
18

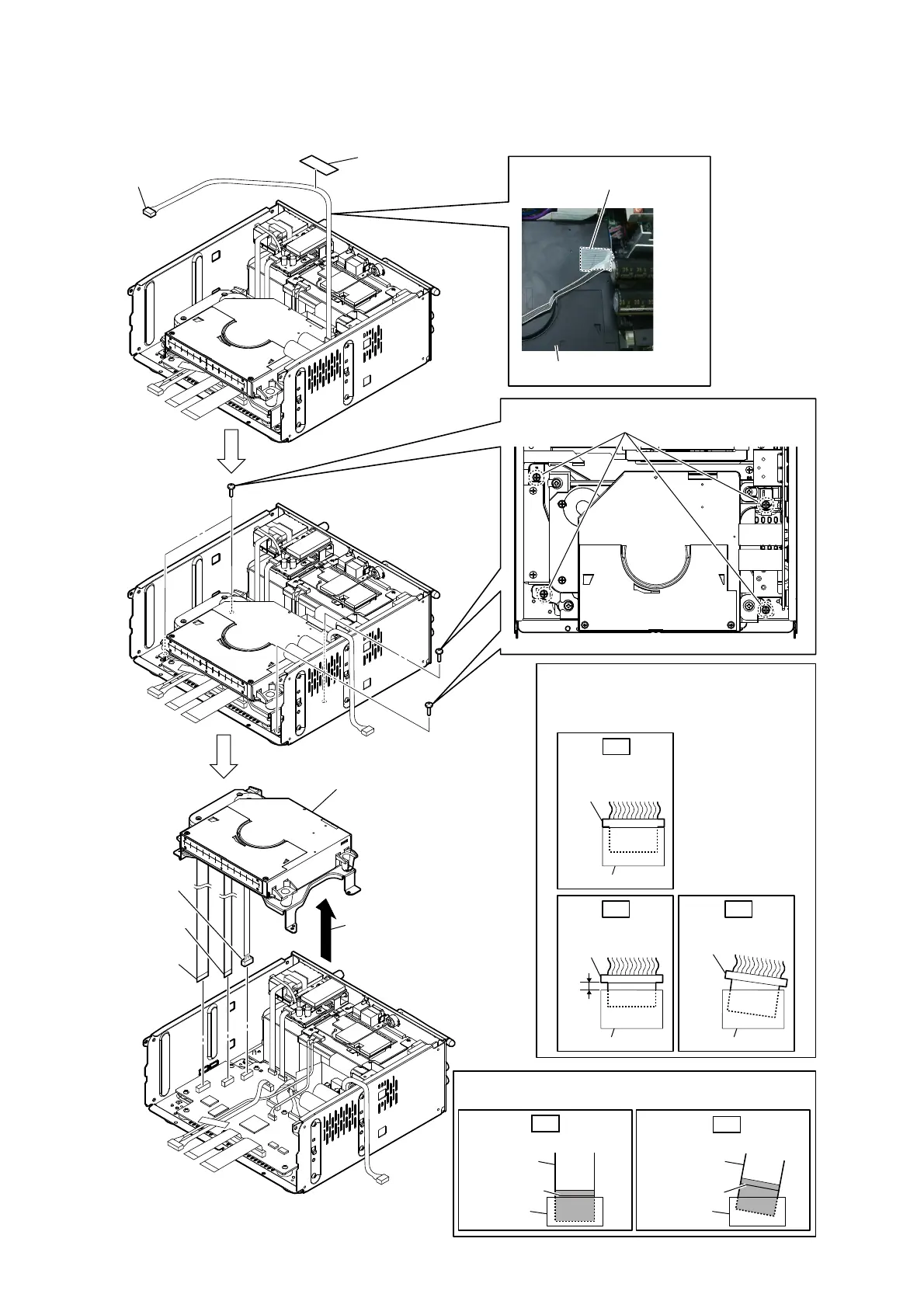

2-10. CD MECHANISM DECK BLOCK
:LUHVHWWLQJ
3 four screws
(BV3)
7 connector
(CN851)
6 flexible flat cable (7P)
(CN502)
5 flexible flat cable (24P)
(CN503)
1 filament tape
(sub material)
2 connector
(CN4201)
4 Remove the CD mechanism
deck block in the direction
of the arrow.
8 CD mechanism deck block
CD mechanism deck
filament tape
(sub material)
Insert only part way.
Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK
NG NG
Note 1:
Insert the connector straight into the interior.
There is a possibility that using this device
without the connector correctly installed will
damage it.
–7RSYLHZ–
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note 2:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
