Sony MAP-S1 Service Manual

MAP-S1
14

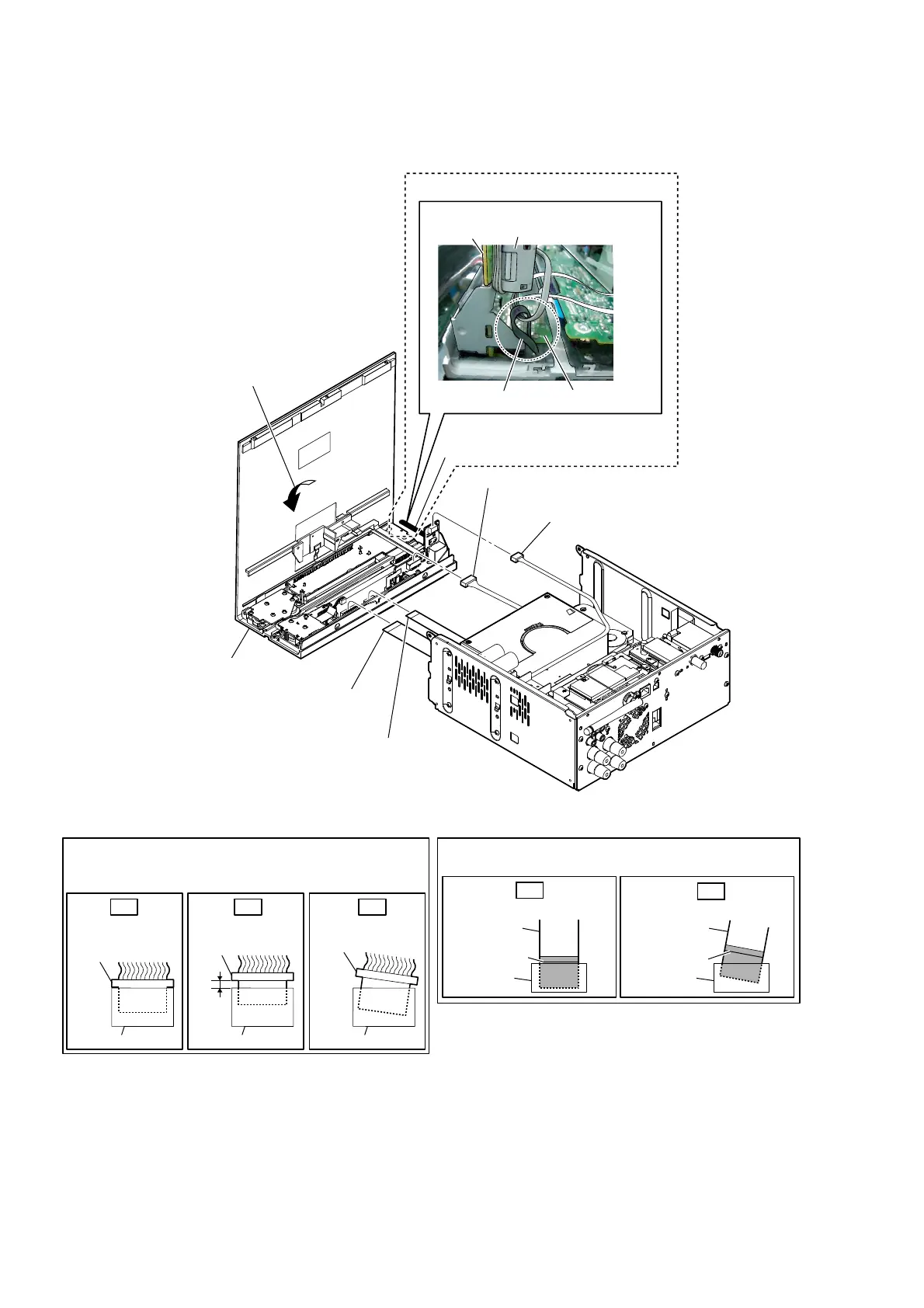

2-4. PANEL (FRONT) BLOCK-2
1 Remove the panel (front) block
in the direction of an arrow.
7 panel (front) block
6 flexible flat cable (23P)
(CN4806)
5 flexible flat cable (26P)
(CN4803)
3 connector
(CN4005)
4 connector
(CN4201)
:LUHVHWWLQJ
2 Remove the wire from the coating clip.
coating clip
HP board
sleeve ferrite clamp (FC1)
FRONT-L board
Note 1:
Insert the connector straight into the interior.
There is a possibility that using this device without
the connector correctly installed will damage it.
Insert only part way.
Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note 2:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
–5HDUYLHZ–
([FHSW&DQDGLDQ

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
