Sony MAP-S1 Service Manual

97
MAP-S1

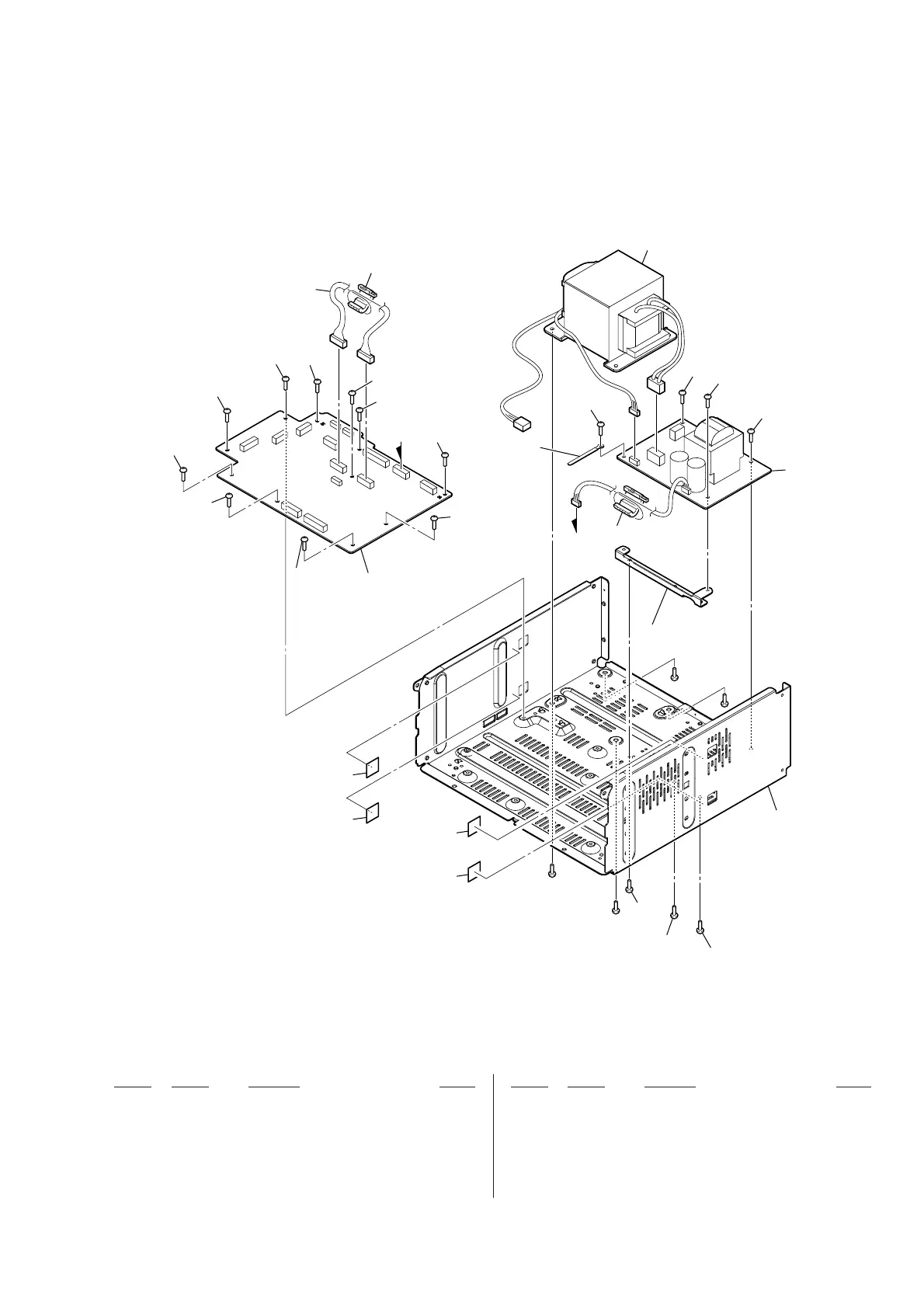

6-10. CHASSIS SECTION
451 A-2042-293-A MAIN BOARD, COMPLETE (for SERVICE) (CND)
451 A-2042-296-A MAIN BOARD, COMPLETE (for SERVICE)
(AEP, UK, HK, MY)
451 A-2042-297-A MAIN BOARD, COMPLETE (for SERVICE) (AUS)
452 A-1990-311-A SUBPOWER BOARD, COMPLETE (CND)
452 A-1990-329-A SUBPOWER BOARD, COMPLETE
(AEP, UK, AUS, HK, MY)
453 3-077-331-21 +BV3 (3-CR)
FC5 1-481-530-21 FILTER, CLAMP (FERRITE CORE)
* FC6 1-500-082-11 CLAMP, SLEEVE FERRITE
0 T1 1-697-344-11 MAIN TRANS (AEP, UK, AUS, HK, MY)
0 T1 1-697-346-11 MAIN TRANS (CND)
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#3
#3
451
452
453
453
not supplied
not supplied
not supplied
not supplied
FC5
FC6
T1
#3
#3
not supplied
not supplied
not supplied
453
453
453
453
453
453
453
453
453
453
453
453
453
453
453
not supplied
S
S

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
