Sony MAP-S1 Service Manual

MAP-S1
17

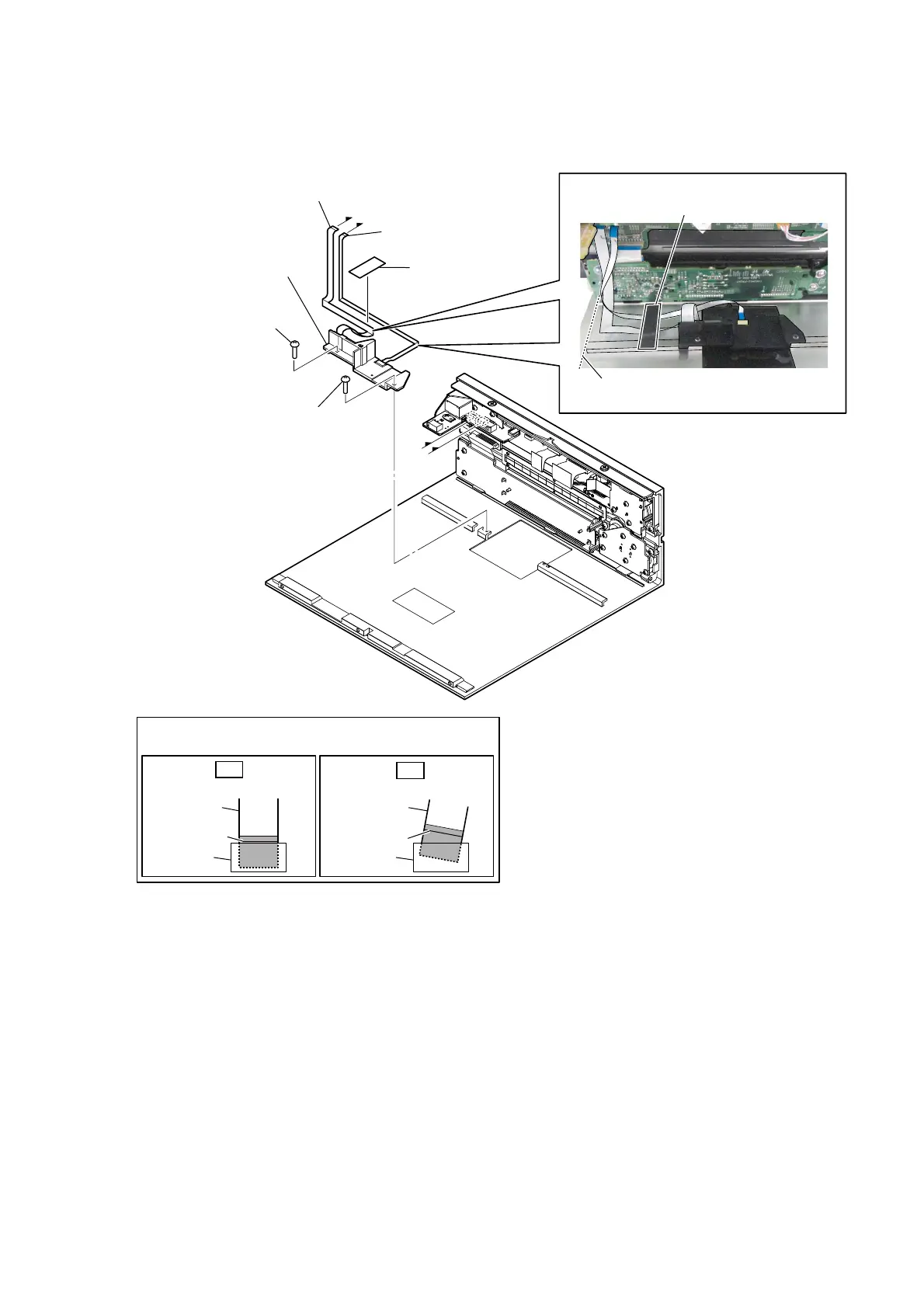

2-9. HOLDER BT NFC BLOCK
A
B
A
B
5 holder BT NFC block
4 screw
(BTP2.6 u 6)
4 screw
(BTP2.6 u 6)
2 flexible flat cable (14P)
(CN4801)
3 flexible flat cable (8P)
(CN4802)
1 cushion
(BT FFC)
:LUHVHWWLQJ
cushion (BT FFC)
Note 1:
Arrange so that two flexible flat cables
do not come out outside this line.
–3DQHOIURQWUHDUERWWRPYLHZ–
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note 2:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
