MAP-S1
31

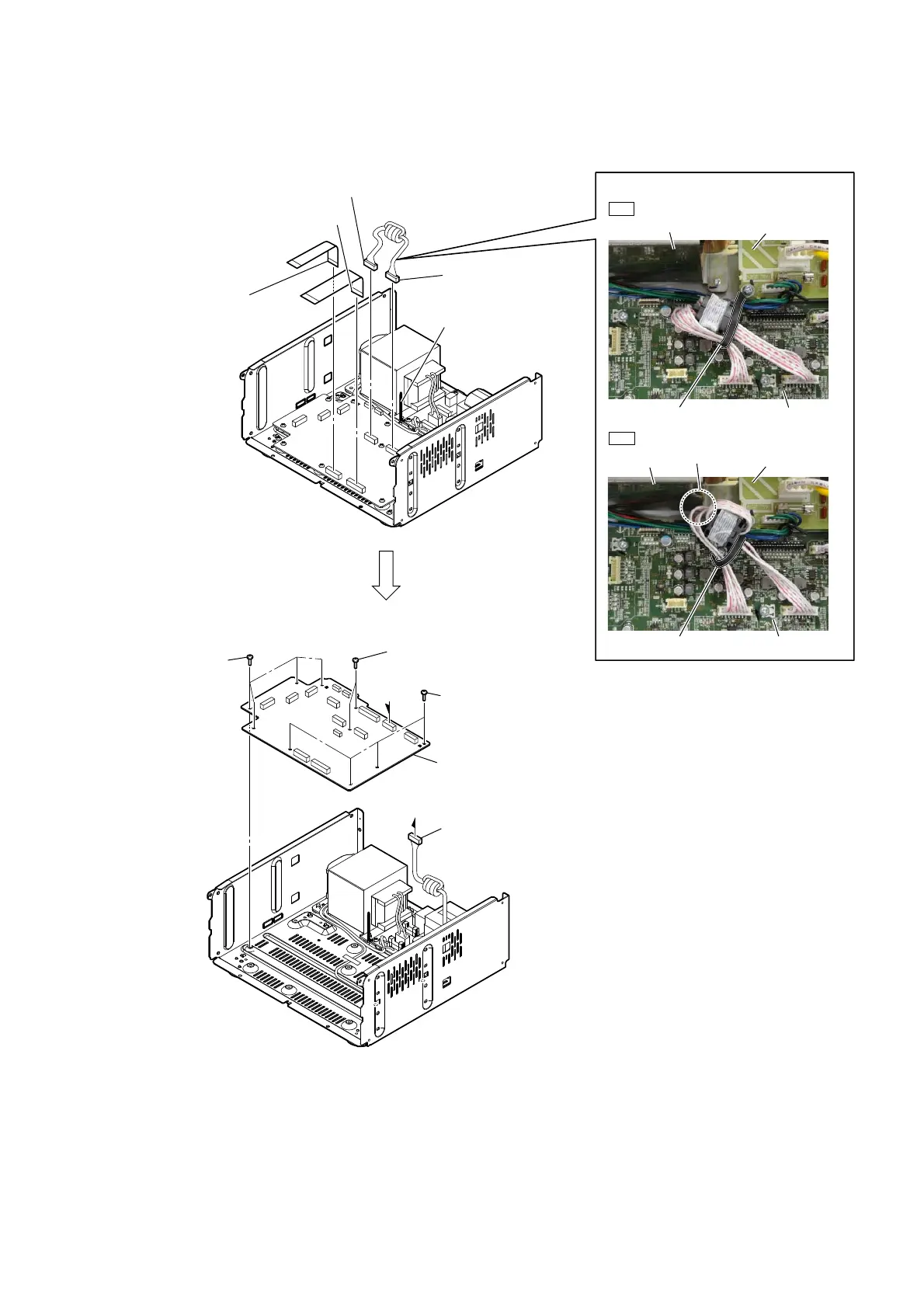

2-26. MAIN BOARD
A
A
7 four screws
(BV3)
8 MAIN board
3 Remove the wire from
the coating clip.
7 four screws
(BV3)
7 two screws
(BV3)
4 connector
(CN702)
6 connector
(CN005)
5 connector
(CN703)
:LUHsetting
OK
NG
main trans POWER board
coating clip
MAIN board
MAIN board
main trans
POWER board
coating clip
Wire touches the
main trans.
2 flexible flat cable (26P)
(CN008)
1 flexible flat cable (23P)
(CN006)
